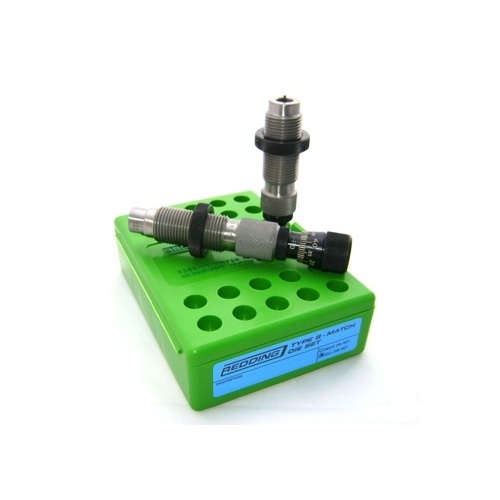

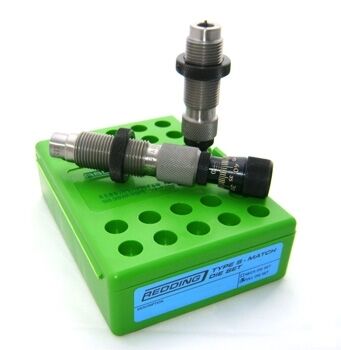

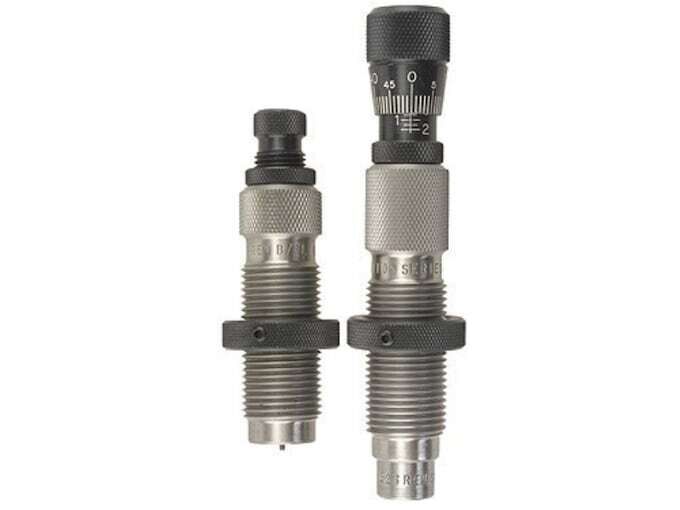

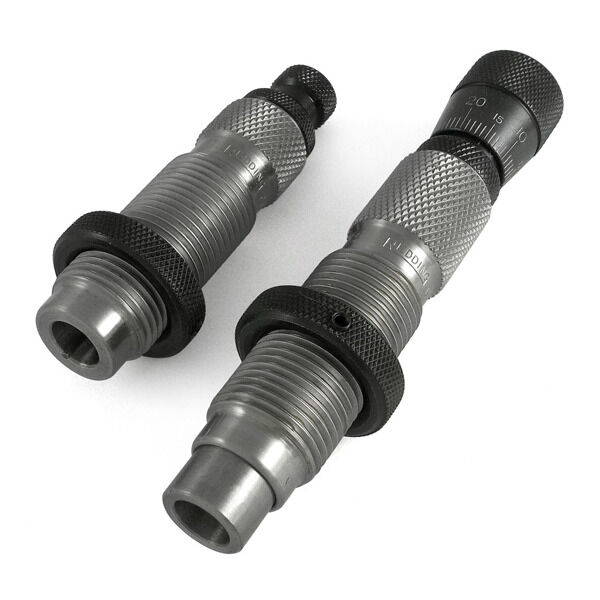

The Redding Type S Match Full Length Bushing 2-Die Set for .260 Remington (MPN 36531) is engineered for precision handloaders requiring exact control over case dimensions and bullet alignment. Designed for the .260 Remington cartridge utilising 6.5mm (.264") diameter bullets, this two-die set mounts into reloading presses via industry-standard 7/8"-14 threading. The set pairs a Type S Full Length Bushing Sizing Die (Part #77531) with a Competition Seating Die (Part #55531) featuring an infinitely adjustable micrometer graduated in 0.001" increments to achieve minimal concentricity runout and reliable chamber feeding across factory and match chambers.

Key Features

• Interchangeable Bushing Sizing: The Type S Full Length Die uses self-centring, interchangeable neck bushings (sold separately in 0.001" increments) to size case necks without over-working the brass.
• Expander Button Flexibility: Includes an adjustable decapping rod assembly that allows partial neck sizing, as well as a decapping pin retainer for sizing neck-turned match brass without the internal size button.

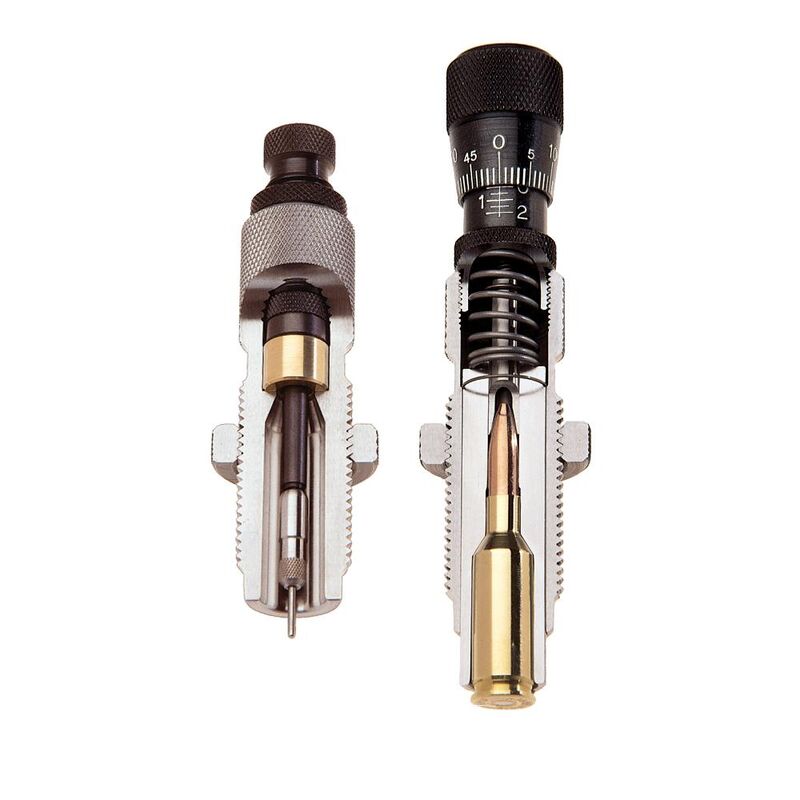

• Straight-Line Alignment Sleeve: The Competition Seating Die features a floating internal sleeve that aligns the .260 Remington case and the 6.5mm (.264") bullet prior to seating.
• Micrometer Seating Depth: The top-mounted micrometer provides linear seating adjustments graduated directly in 0.001" increments for precise seating depths.
• Universal Press Interface: Standard 7/8"-14 thread pitch ensures native compatibility with single-stage and turret reloading presses.

Specifications

• Cartridge Compatibility: .260 Remington
• Bullet Diameter: 6.5mm / .264"
• Thread Interface: 7/8"-14
• Sizing Die: Type S Full Length Bushing Die (Part #77531) with decapping rod assembly, size button, and decapping pin retainer
• Seating Die: Competition Seating Die (Part #55531) with 0.001" micrometer graduations
• Package Dimensions: 4.5" × 5.0" × 1.75" (114 mm × 127 mm × 44 mm)
• Packaged Weight: Approximately 1.65 lbs (0.75 kg)
• Required Accessories (Sold Separately): Redding Type S neck sizing bushings and #1 shellholder (Part #11001 / #11601)

Who is the Redding Type S Match Full Length Die Set for .260 Remington for?

• Long-range precision shooters — requires full-length sizing and seating adjustments in 0.001" increments via the competition micrometer to minimise bullet runout when loading .260 Remington cartridges with 6.5mm (.264") diameter bullets.
• PRS competitors — needs standard 7/8"-14 threaded die sets that provide full-length case body resizing combined with 0.001" neck bushing tension control to guarantee reliable chamber feeding and consistent muzzle velocities in .260 Remington match rifles.
• Hunters — relies on precise neck tension control in 0.001" increments to extend the working life of .260 Remington brass while maintaining full-length case sizing for dependable cycling in field conditions.

Less suitable for: Firearm chambers cut to .260 Remington Improved (40°); this specific die set is limited to standard .260 Remington case geometry and requires dedicated Ackley Improved full-length bushing dies instead.
