Will this Redding 60420 die set work with standard .243 Winchester factory rifle chambers?

No, this elite die set is specifically engineered for the .243 Winchester Ackley Improved 40-degree wildcat chamber and will not correctly size brass for standard .243 Winchester, 243 WSSM, or 6mm Rem AI chambers. It requires 7/8"-14 threaded single-stage or turret presses and uses neck sizing bushings ranging from .266" to .274".

Are the neck sizing bushings included in the Redding Elite Bushing Die Set box?

No, the neck sizing bushings (.266" to .274" typical diameter) are sold separately and must be selected based on your specific brass neck-wall thickness. The 3-die set includes a Type S Full-Length Bushing Sizing Die, a Type S Neck Bushing Sizing Die, and a Competition Bullet Seating Die featuring a micrometer adjustable head calibrated in 0.001" increments.

Does this mechanical reloading die set require any electrical compliance or SAA/RCM certifications for Australian handloaders?

No electrical compliance or SAA/RCM certifications are required because this is a completely manual, bench-mounted mechanical reloading tool with no 240V mains power requirements. Additionally, because these are non-firearm mechanical reloading dies, they can be purchased and shipped directly across Australia without firearms registry tracking.

What maintenance is recommended to protect these steel dies during long-term storage in humid Australian coastal or outback environments?

To prevent rust and oxidation during storage, you should apply a light coat of rust-preventative gun oil or tool preservative to all exterior and interior steel surfaces after use. Keeping the dies stored in their original plastic 3-die storage box in a dry environment will ensure long-term precision and longevity.

243 Win AI Die Set - Redding 60420

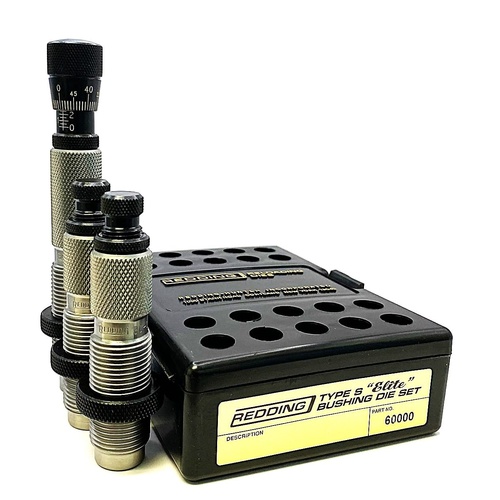

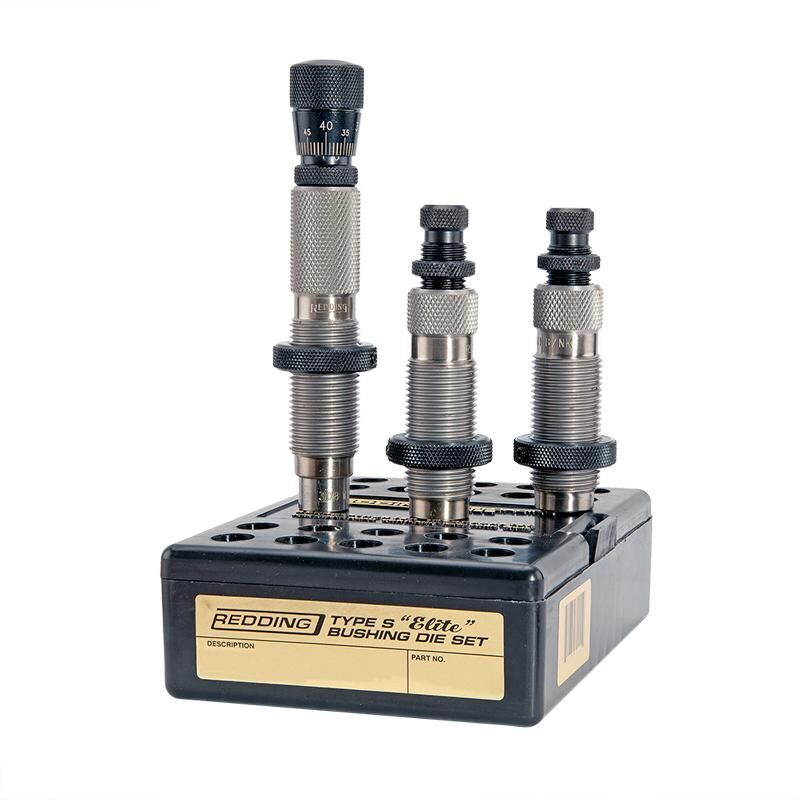

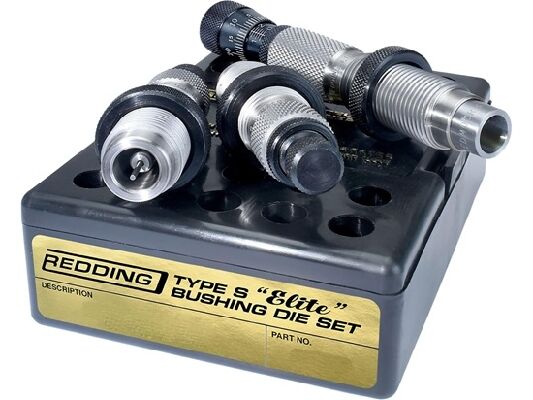

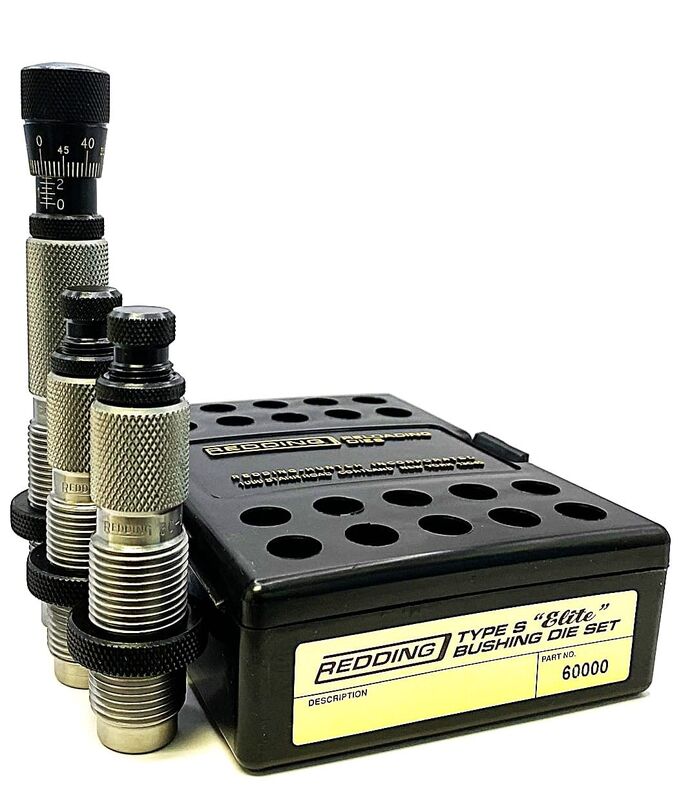

The Redding 243 Win Ackley Improved 40 Degrees Type S - Elite Bushing Die Set (MPN: 60420) is a three-die precision reloading system built for reloading and seating ammunition for .243 Winchester Ackley Improved 40° chambers. Built on standard 7/8"-14 threaded die bodies, this manual bench-mounted set provides complete control over neck tension, case resizing, and bullet seating depth to minimise runout on 0.243" (6mm) diameter projectiles.

Key Features

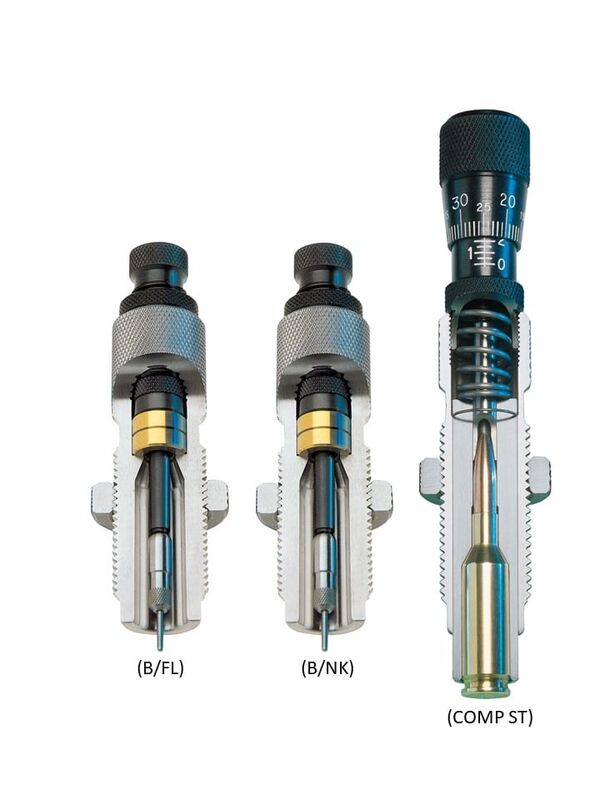

Type S Full-Length Bushing Sizing Die: Resizes the full case body while using interchangeable neck bushings to control neck tension without overworking cartridge brass.
Type S Neck Bushing Sizing Die: Provides dedicated neck-only sizing using self-centering, free-floating bushings to maintain case concentricity.
Redding Competition Bullet Seating Die: Features a floating seating stem and guide sleeve paired with a micrometer-adjustable head calibrated in 0.001" increments for precise seating depth control.
Standard Threading: Machined with industry-standard 7/8"-14 threads to interface with standard single-stage and turret reloading presses.

Product Specifications

Calibre Compatibility: .243 Winchester Ackley Improved 40° (0.243" / 6mm bullet diameter)
Thread Interface: 7/8"-14
Micrometer Adjustment Increments: 0.001"
Recommended Bushing Range: .266" to .274" (bushings sold separately)
Shellholder Compatibility: Redding Shellholder #1 (#11001) or Competition Shellholder Set #1 (#11601)
Die Configuration: 3-Die Set (Full-Length Bushing Die, Neck Bushing Die, Competition Seating Die)
Power Requirements: Manual mechanical operation

Who is the Redding 243 Win Ackley Improved 40 Degrees Type S - Elite Bushing Die Set for?

Competitive long-range precision shooters — relies on the 0.001" micrometer adjustable head on the Competition Seating Die to dial exact bullet jump and achieve repeatable seating depths for the .243 Winchester Ackley Improved 40-degree cartridge.
Custom rifle handloaders — requires the interchangeable .266" to .274" bushing range across both full-length and neck-only sizing dies to set precise neck tension matched to specific brass neck-wall thicknesses.
Benchrest shooters — utilises the self-centering free-floating bushing design and 7/8"-14 threaded alignment sleeve to eliminate concentricity errors and minimise bullet runout.

Less suitable for: Handloaders loading standard .243 Winchester, 243 WSSM, or 6mm Rem AI chambers, or those assembling basic hunting ammunition where 0.001" micrometer seating adjustment and bushing neck sizing are unnecessary; standard 2-die non-bushing full-length sizing sets better fit standard-chamber utility loading.

SKU	RD41688LP
Model #	60420
Brand	Redding
Shipping Weight	1.0000kg
