What neck bushings and shellholders do I need to purchase separately to use the Redding 6mm Dasher Type S Match Full Length Die Set?

This die set does not include neck bushings or a shellholder, which must be acquired separately. You will need a standard Redding Shellholder #1 (Part #11001) or Competition Shellholder Set #1 (Part #11601), along with appropriate sizing bushings—typically steel or titanium nitride models sized around 0.264" to 0.268" depending on your brass make and neck-wall thickness.

Does this mechanical reloading die set require any electrical compliance or SAA/RCM certifications for use in Australia?

No. As a purely mechanical reloading tool featuring a standard 7/8"-14 thread, electrical compliance, 240V ratings, and SAA/RCM regulatory approvals are entirely inapplicable to this product.

How should I maintain these hardened steel dies to prevent surface rust during humid Australian conditions?

Because these are precision-machined from heat-treated steel, they require proper storage with anti-corrosion oils like Inox or lanolin to protect against surface rusting in humid Australian climates. Regular wiping and light oiling after use will ensure longevity and maintain tight tolerances across thousands of match rounds.

How do the sizing and seating dies in the 36648 set achieve precision for 6mm Dasher match ammunition?

The Type S sizing die uses interchangeable bushings in 0.001" increments to control neck tension while bumping the shoulder back to SAAMI match specs in a single stroke. Meanwhile, the Competition Seating Die features an internal sliding sleeve to pre-align the case and bullet, paired with a micrometer head calibrated for direct adjustments in 0.001" increments.

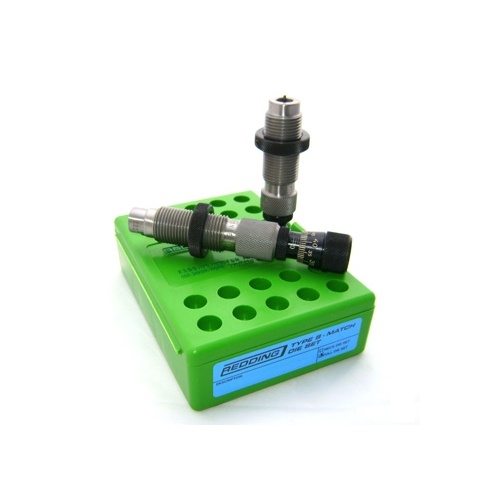

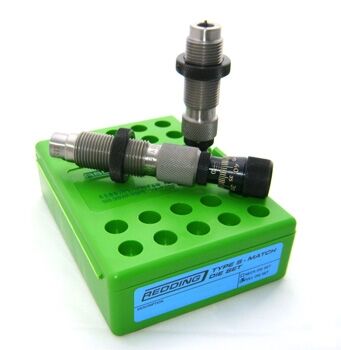

6mm Dasher Die Set - Redding 36648

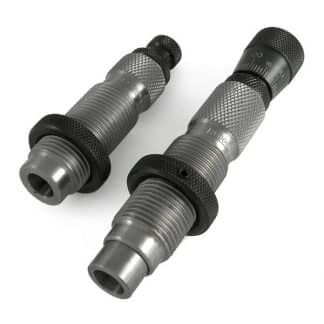

The Redding Type S Match Bushing Full Die Set for 6mm Dasher is a precision two-die reloading system designed to resize cartridge brass and seat .243 in diameter projectiles to exact tolerances. Built with standard 7/8"-14 threading for single-stage and turret reloading presses, this set provides full-length case resizing, shoulder setback, and customizable neck tension control to minimize bullet runout in competitive shooting applications.

Key Features

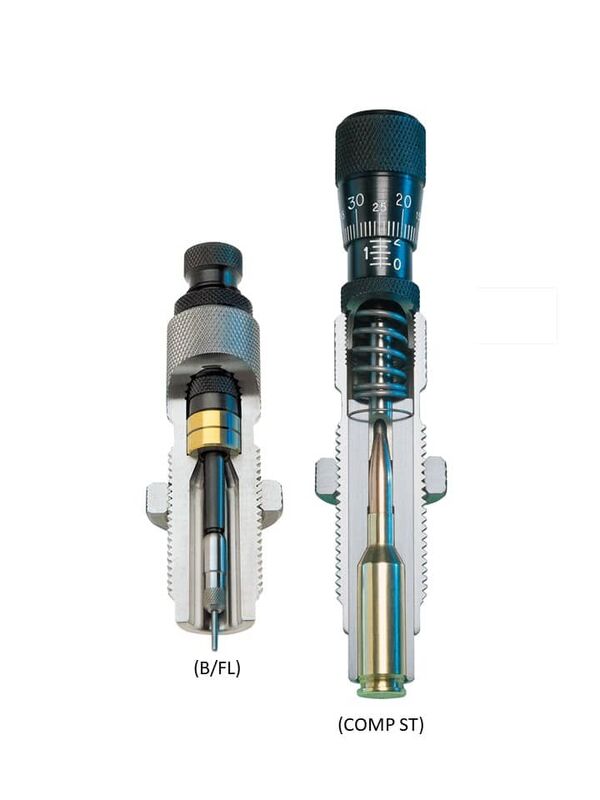

Type S Full-Length Bushing Sizing Die: Resizes the case body and bumps the shoulder to spec in a single stroke, utilizing self-centering interchangeable neck bushings (sold separately) to prevent brass overworking.
Competition Seating Die: Features a sliding alignment sleeve that holds the 6mm Dasher case and bullet in perfect axial alignment before seating, paired with a top-mounted micrometer head calibrated in 0.001" increments.
Configurable Sizing Assembly: Sizer can be operated with the standard expander button, converted to bushing-only sizing using the included decapping pin retainer to eliminate expander drag, or stripped of internal parts to serve as a body bump die.
Hardened Steel Construction: Built from heat-treated steel for mechanical reloading presses, maintaining dimensional precision across high-volume match preparation cycles.

Specifications

Manufacturer Part Number (MPN): 36648
Calibre Compatibility: 6mm Dasher (.243 in bullet diameter)
Press Threading: Standard 7/8"-14 thread
Sizing Die Model: Type S Full-Length Bushing Sizing Die (Part #77648)
Seating Die Model: Competition Seating Die (Part #55648)
Shellholder Compatibility: Standard Redding Shellholder #1 (Part #11001) or Competition Shellholder Set #1 (Part #11601), sold separately
Operation: Purely mechanical / non-powered
Weight: Approximately 0.6 to 0.7 kg (1.3 to 1.5 lbs) boxed

Who is the Redding 6mm Dasher Type S Match Full Length Die Set for?

Precision Rifle Series (PRS) competitors — requires full-length sizing reliability across standard 7/8"-14 thread presses to ensure smooth feeding of 6mm Dasher (.243 in bullet diameter) brass during fast-paced positional stages.
Benchrest and long-range target shooters — relies on the Competition Seating Die with its 0.001" micrometer adjustments and sliding sleeve alignment to seat .243 in bullets with minimal axial runout.
Australian fly shoot competitors — utilizes interchangeable sizing bushings in this 6mm Dasher reloading die set to regulate neck tension in 0.001" increments for consistent muzzle velocity.

Less suitable for: Shooters fireforming brass dedicated to a single bolt-action chamber where full-length body sizing is unnecessary (who are better served by a bushing neck-sizing die set), or high-volume field shooters who do not require neck bushing adjustments in 0.001" increments (who are better suited to standard non-bushing full-length dies).

SKU	RD41525LP
Model #	36648
Brand	Redding
Shipping Weight	1.0000kg

What our Customers are Saying

We Also Recommend

Sellier & Bellot 300 Winchester Magnum Unprimed Br

$57.95

Kleenbore Cp16b Cotton Cleaning Patches 1.25 Inch

$32.95

Recommended Products

Redding 80443 6mm Creedmoor Full Length Die Set 7/

$201.95

Redding 88191 Titanium Carbide 3-Die Set 45 Colt 4

$272.95

Redding 84287 204 Ruger Deluxe Reloading Die Set F

$214.95

Redding 74155 Small Base Body Die 308 Winchester R

$120.95

Welcome to Xhunter Australia. By accessing and using our website (www.xhunter.com.au) and purchasing from our online store, you agree to be bound by the following Terms and Conditions. Please read them carefully before proceeding.

1. Eligibility

By agreeing to these Terms and Conditions, you confirm that:

• You are at least 18 years of age.
• You are legally capable of entering into a binding contract under Australian law.
• You will not purchase any restricted or controlled items unless legally permitted to do so.

2. Product Information

• All products listed are subject to availability.
• Product descriptions, specifications, and pricing are subject to change without notice.
• We make every effort to display products accurately, although we do not guarantee that all images or content are error-free.

3. Orders and Payments

• All orders are subject to acceptance and confirmation.
• Prices are in AUD and include GST unless otherwise stated.
• We reserve the right to cancel or refuse any order at our sole discretion.
• Full payment is required before dispatch.

4. Authority to Leave (ATL) and Delivery

• By default, all orders are shipped with Authority to Leave (ATL).
• If you require Signature on Delivery, please contact us prior to purchasing. Additional charges apply.
• If an order is returned to us due to failed delivery or non-receipt when ATL is not permitted, a $25 return processing fee must be paid before reshipment or refund.

5. Returns and Refunds

• Please refer to our full Returns Policy on the website.
• Returned items must be in original, resalable condition unless faulty.
• A restocking fee may apply if an item is not in reselling condition.
• Change-of-mind returns may not be accepted for clearance or custom-ordered items.

6. Firearms and Restricted Items

• You must comply with all relevant State and Federal laws for regulated products.
• You are responsible for ensuring proper licences and permits are held.
• We reserve the right to request proof of eligibility before dispatch.

7. Limitation of Liability

• Xhunter Australia is not liable for direct or indirect losses arising from the use or misuse of products.
• We are not responsible for any unauthorised modifications or incorrect application of products.

8. Manufacturer Warranty Support

Some products sold by Xhunter Australia include a manufacturer’s warranty (for example, limited lifetime warranties). These warranties are provided solely by the manufacturer and are separate from the consumer guarantees under Australian Consumer Law.

Where a manufacturer provides a warranty:

A. The warranty is offered and honoured by the manufacturer, not by Xhunter Australia, unless expressly stated otherwise.
B. Customers may be required to contact the manufacturer directly and comply with their warranty process, which may include overseas product assessment.
C. Proof of purchase is required to lodge a manufacturer warranty claim.
D. Assistance provided by Xhunter Australia in lodging warranty claims is a goodwill service only and does not imply liability for warranty outcomes or decisions.

Nothing in this clause limits your rights under Australian Consumer Law.
Xhunter Australia remains responsible for providing legally required remedies for products that fail to meet the consumer guarantees of acceptable quality, fitness for purpose, and reasonable durability.

9. Privacy

Your personal information is collected, used, and stored in accordance with our Privacy Policy.

10. Intellectual Property

All text, graphics, logos, and images on this website remain the property of Xhunter Australia and are protected by copyright laws.

11. Amendments

We may update or modify these Terms and Conditions at any time without prior notice. Continued use of our site constitutes acceptance of any updated Terms.

12. Governing Law

These Terms and Conditions are governed by the laws of Victoria, Australia. Any disputes will be handled exclusively by the courts of Victoria.

13. 18+ Age Requirement

By placing an order, you confirm that you are at least 18 years of age and legally entitled to purchase the products ordered. We may cancel any order that breaches this requirement.

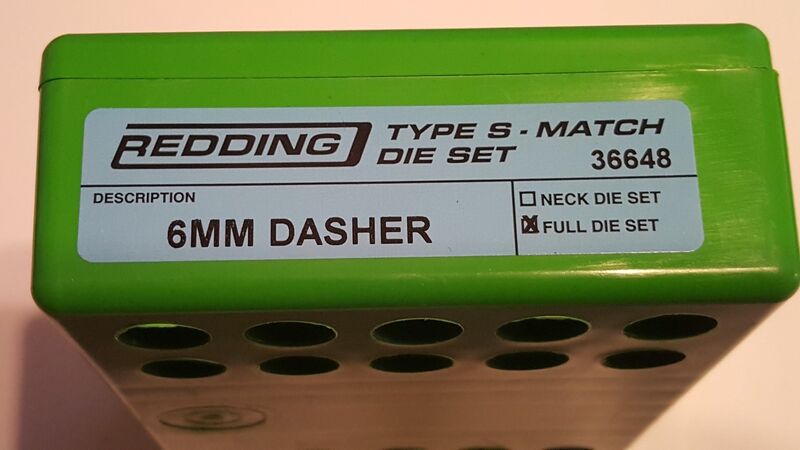

Redding 36648 Type S Match Die Set 6mm Dasher Full Length
