What components are included in the Redding 38141 3-Die Set for the .284 Winchester?

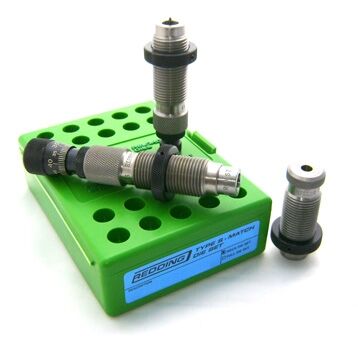

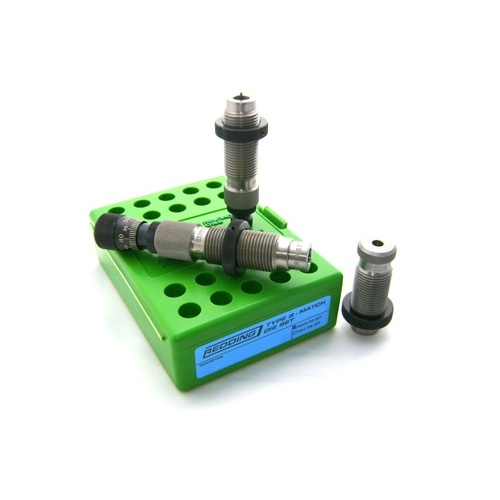

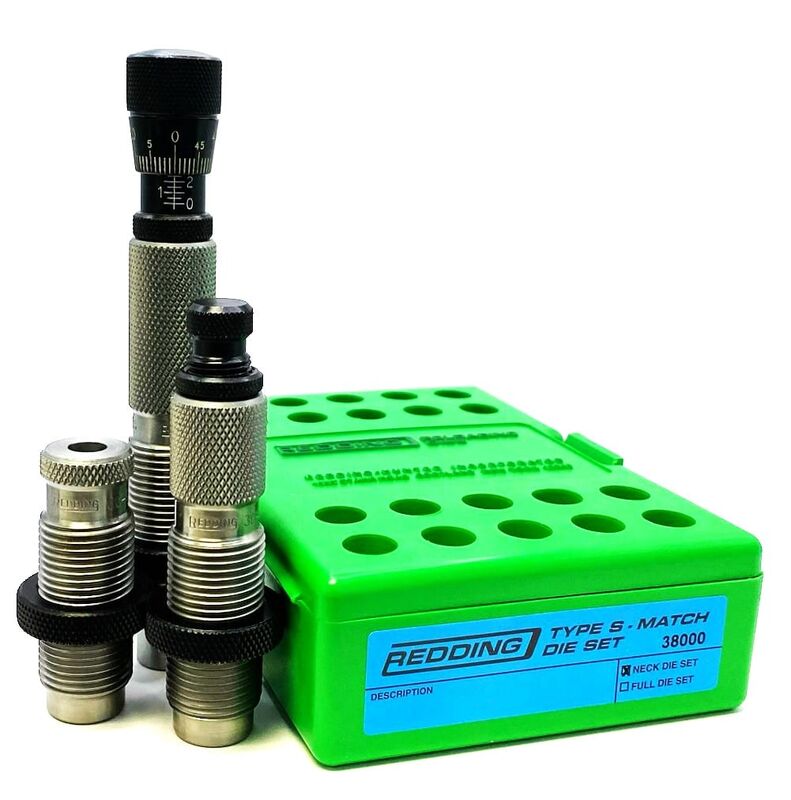

This match-grade set includes a Type S Bushing Neck Sizing Die with a decapping rod assembly, a dedicated Body Die for shoulder bumping without touching the neck, and a Competition Seating Die featuring a micrometer adjustment head graduated in 0.001 inch increments. It also comes with a convenient plastic storage case. Note that sizing bushings and the standard Redding Shellholder #1 must be purchased separately.

Are neck sizing bushings included with this die set, and how do I select the right size?

Neck sizing bushings are not included with the 38141 set and must be selected and purchased separately in 0.001 inch increments to match your loaded cartridge neck diameter. To ensure optimal concentricity and tension control, many reloaders pair these with precision heat-treated steel bushings such as the Redding 73244. Using Imperial Sizing Die Wax like the Redding 07500 will also help maintain smooth operation during the sizing process.

Is this die set suitable for brass fired in semi-automatic rifles or multiple different chambers?

While the Type S neck sizing and body die combination excels for bolt-action match rifles firing dedicated, fire-formed brass, semi-automatic or mixed-action rifles require full-length sizing for reliable feeding. Because this set includes a separate Body Die rather than a full-length sizing die, it is specifically optimised for precision bolt-action applications where brass is kept in the same chamber. For optimal case longevity, ensure cases are kept clean and lightly oiled during storage to prevent surface corrosion in humid Australian environments.

Do I need any special electrical certifications or Australian compliance checks to use these reloading dies?

No electrical certifications, SAA/RCM approvals, or 240V power compatibility apply to this product. The Redding 38141 is a strictly mechanical, hand-operated reloading tool using standard 7/8 inch-14 press threads. Furthermore, reloading dies are unrestricted accessories in Australia and do not require a firearm licence to purchase.

Redding 284 Win Die Set - Redding 38141

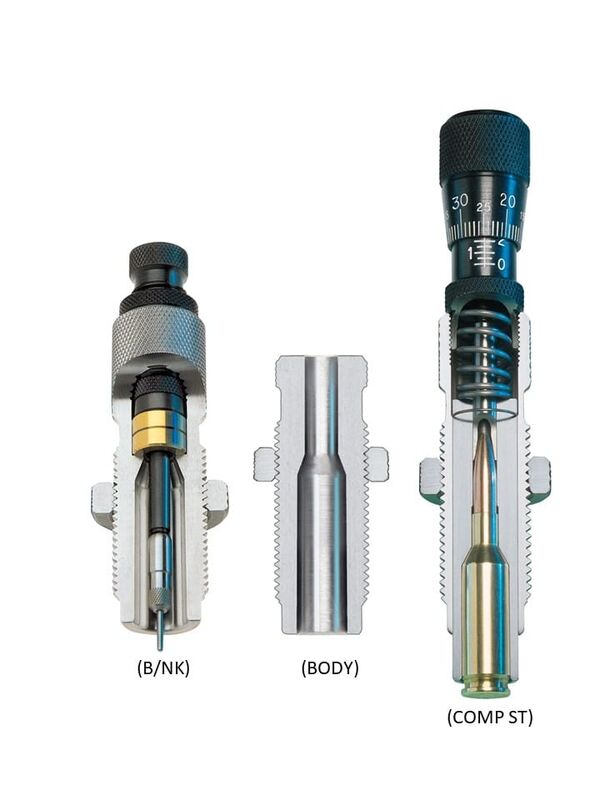

The Redding .284 Winchester Type S - Match Bushing Neck Die Set (SKU: 38141) is a 3-die precision reloading system engineered for match handloaders and long-range competitors. Machined from heat-treated, case-hardened steel, this set allows exact control over case neck sizing, shoulder bump, and bullet seating depth for .284 Winchester cartridges. Built around a standard 7/8"-14 thread interface, the system isolates neck sizing from body sizing to extend brass life and minimise cartridge run-out on fire-formed cases.

Key Features

Type S - Bushing Neck Die: Sizes the case neck using interchangeable steel or carbide bushings (sold separately) that adjust neck tension in 0.001" increments while freely self-centring on the case neck. Includes a decapping rod assembly and standard expander button.
Dedicated Body Die: Resets critical case body dimensions and bumps the shoulder back without contacting or altering the neck.
Competition Seating Die: Features a micrometer adjustment head graduated in 0.001" increments and an internal floating bullet alignment sleeve for precise cartridge overall length (COAL) and concentric bullet seating.
Standard Press Mounting: Uses standard 7/8"-14 reloading press threading across all three dies for broad single-stage and turret press compatibility.

Specifications

Calibre: .284 Winchester (.284" / 7mm bullet diameter)
Thread Interface: 7/8"-14 standard
Micrometer Adjustments: 0.001" graduations
Material: Heat-treated, case-hardened steel
Shellholder Compatibility: Redding Shellholder #1 or Competition Shellholder set (sold separately)
Total Set Weight: Approximately 0.7–0.9 kg (boxed)

Who is the Redding 284 Winchester Type S - Match Neck Die Set for?

F-Class Open competitors — sizes fire-formed .284 Winchester brass using interchangeable bushings graduated in 0.001" steps to manage precise neck tension for tight vertical dispersion at long range.
Precision bolt-action handloaders — mounts to standard 7/8"-14 reloading presses and incorporates a Competition Seating Die with 0.001" micrometer graduations to dial in consistent seating depth across repeated firings.
Benchrest target shooters — utilises a free-floating alignment sleeve within this reloading die set to seat .284 Winchester projectiles with minimal run-out for fire-formed match brass.

Less suitable for: Handloaders sizing brass fired across multiple chambers or running semi-automatic platforms; a full-length sizing die set (such as a Type S Match Full Die Set) is better suited to restore factory body dimensions for reliable chambering.

SKU	RD41530LP
Model #	38141
Brand	Redding
Shipping Weight	1.0000kg
