Why should I choose the Redding 48111 small base die set instead of a standard full-length die set for my .223 Remington?

The Redding 48111 small base die set is specifically engineered to size the case body down to minimum SAAMI specifications and bump the shoulder back slightly more than standard dies. This ensures flawless chambering and extraction in tight custom match chambers, semi-automatics, or pump-action rifles. However, if you are shooting standard-chambered bolt-action rifles, you should stick to standard dies to avoid overworking the brass and reducing case life.

What press threading and additional accessories do I need to set up the Redding 48111 die set?

The Redding 48111 features industry-standard 7/8"-14 threads, making it compatible with all standard single-stage and progressive reloading presses. To operate this specific set, you will need to separately acquire a Redding Shellholder #10 (Part #11010). Additionally, because small base dies resize further down near the case web, you must use a high-lubricity case sizing lube during setup to prevent stuck cases.

Does the Redding 48111 .223 Remington Small Base Die Set require any electrical certifications for use in Australia?

No, electrical certifications such as 240V compatibility or SAA/RCM approvals do not apply to this product. The Redding 48111 is an entirely manual, non-powered mechanical reloading tool designed for benchtop reloading in Australian workshops and outback setups.

.223 Die Set - Redding 48111

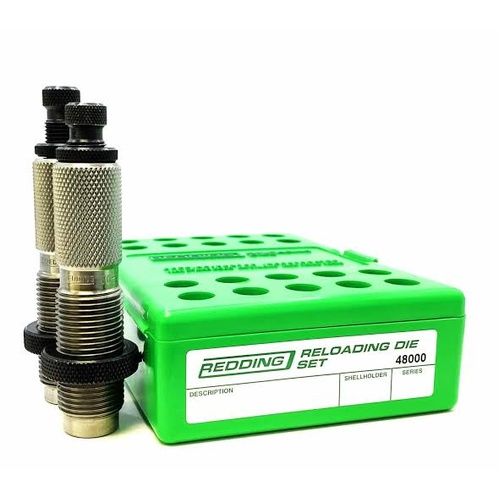

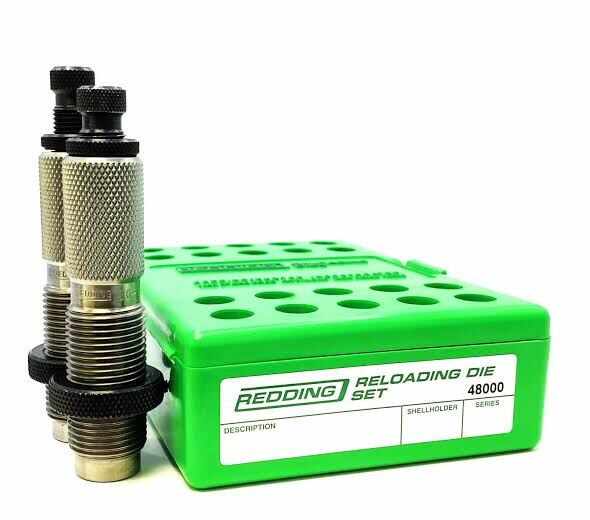

The Redding 223 Remington Small Base Die Set is a precision two-die reloading system designed to restore fired .223 Remington cartridge cases to minimum SAAMI dimensions. Manufactured in the USA from heat-treated alloy steel, this set includes a small base full-length resizing die and a standard seating die with an integrated crimping ring. It provides extra reduction along the case body and shoulder to guarantee smooth feeding, chambering, and extraction in firearms with tight clearances or rapid-cycling actions.

Key Features

Small Base Resizing: Compresses the lower case body diameter closer to minimum SAAMI specifications and sets the shoulder back further than standard full-length dies to prevent chambering resistance.

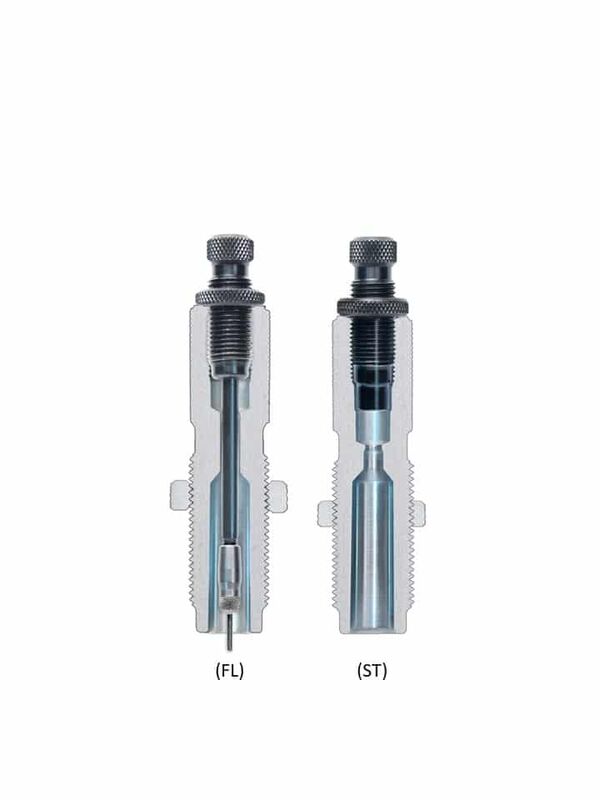

Two-Die Configuration: Includes one small base full-length sizing die with a decapping rod assembly and expander button, plus one seating die with a built-in roll crimp ring.
Precision Construction: CNC-machined from alloy steel and heat-treated in atmospherically controlled furnaces for long-term dimensional consistency.
Universal Press Mounting: Uses standard 7/8"-14 threading to fit single-stage and progressive reloading presses.

Specifications

Calibre: .223 Remington
Bullet Diameter Compatibility: .224"
Die Thread Size: 7/8"-14 thread
Shellholder Requirement: Redding Shellholder #10 (sold separately)
Packaged Weight: Approx. 450–550 g
Country of Origin: USA

Who is the Redding 223 Remington Small Base Die Set for?

Competitive target shooters — Requiring reliable chambering of .224" diameter bullets in tight custom match chambers, this small base reloading die set sizes the case web and body down to minimum tolerances on standard 7/8"-14 thread presses.
Semi-automatic and rapid-action shooters — Needing flawless cycling in autoloading or pump-action .223 platforms, this small base reloading die set reduces case body dimensions and bumps the shoulder back to prevent chambering jams during rapid feeding.

Less suitable for: Standard-chambered bolt-action rifles, where standard full-length sizing dies or neck-sizing dies are preferred to avoid overworking the brass and reducing case life.

SKU	RD41642LP
Model #	48111
Brand	Redding
Shipping Weight	1.0000kg
