What is the difference between this Small Base Die Set and a standard Redding Full-Length Die Set for 308 Winchester?

The Redding Small Base Die Set (Part #48155) is specifically engineered to resize the case diameter near the web by an extra .001 to .002 inches compared to minimum SAAMI specs, while also setting back the shoulder. This prevents feeding and chambering issues in semi-automatic, pump-action, or tight custom match chambers. For standard bolt-action rifles with generous factory chambers, you should use standard Full-Length Dies (Redding #80155) to avoid overworking the brass and reducing case life.

Do I need any special accessories or shellholders to use the Redding 48155 die set on my reloading press?

The dies feature a standard 7/8"-14 thread pitch that fits virtually all standard single-stage, turret, and progressive reloading presses. You will need to separately acquire a standard #1 shellholder (such as Redding Part #11001) or a matching Redding competition shellholder to hold your 308 Winchester cases during the resizing and seating operations.

Are there any specific Australian compliance or electrical safety certifications required for this Redding die set?

No electrical certifications or SAA, RCM, or ERAC approvals are necessary for this product. The Redding 48155 is a completely mechanical, unpowered workshop tool with a 0W power rating, meaning mains electrical regulations do not apply to its use in Australian reloading benches.

How should I lubricate my 308 Winchester brass when using this small base sizing die?

Because small base dies work the brass harder and resize the web area more aggressively than standard dies, high-pressure case lubrication is mandatory to prevent cases from becoming stuck inside the resizing die. Ensure you apply a quality case lube evenly to prevent friction-related damage during your reloading sessions on the bench.

308 Win Small Base Dies - Redding 48155

The Redding 308 Winchester Small Base Die Set (Manufacturer Part Number: 48155) is a precision two-die metallic reloading set manufactured in the USA from alloy steel. Specifically engineered for bottleneck .308 Winchester cartridge cases, this specialised set sizes the case body slightly smaller than standard dimensions and sets the shoulder back to guarantee seamless chambering and reliable extraction in firearms with strict dimensional tolerances. The mechanical die set operates via an industry-standard 7/8"-14 thread pitch interface and requires a standard #1 shellholder (Part #11001) or Redding competition shellholders to operate on standard reloading presses.

Key Features

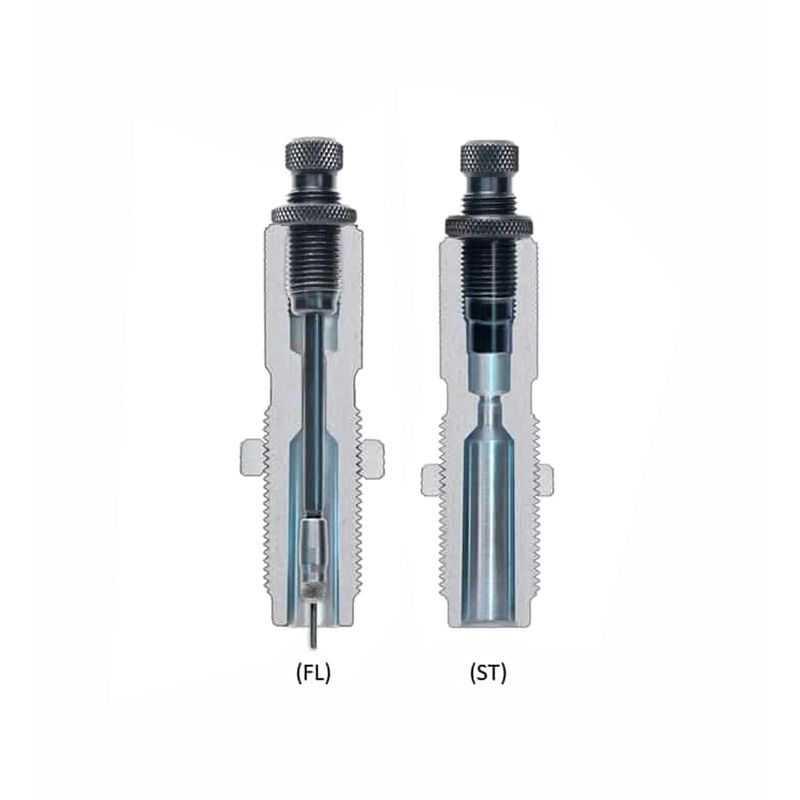

Small Base Resizing Die (#08155): Reduces the cartridge diameter near the case base/web by approximately .001" to .002" below standard SAAMI minimum specifications while incorporating a decapping rod assembly, replaceable decapping pin, and expander size button.
Standard Bullet Seating Die (#92155): Features an internal bullet guide, seating plug, and built-in roll crimp ring for uniform projectile seating depth and crimping.
Universal Press Interface: Machined with a standard 7/8"-14 thread pitch to ensure compatibility across single-stage, turret, and progressive reloading presses.

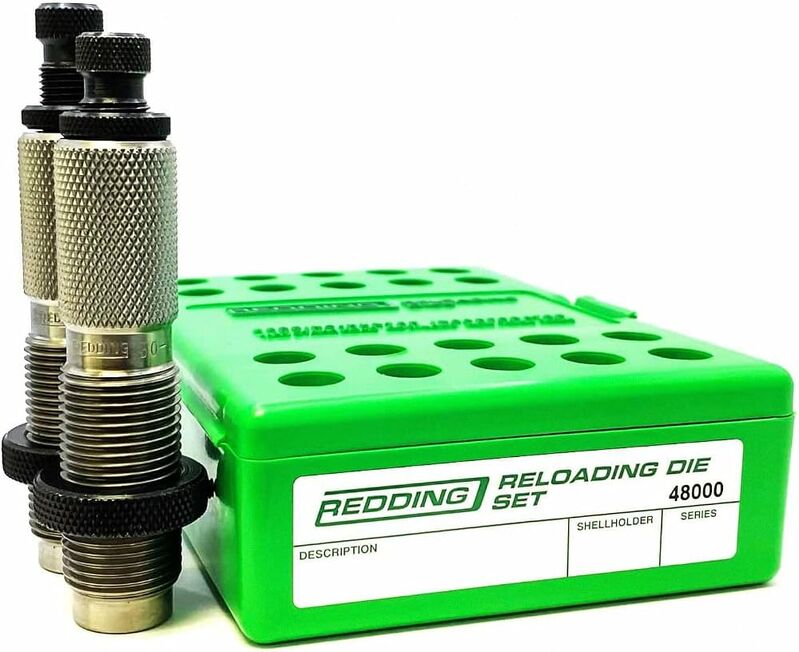

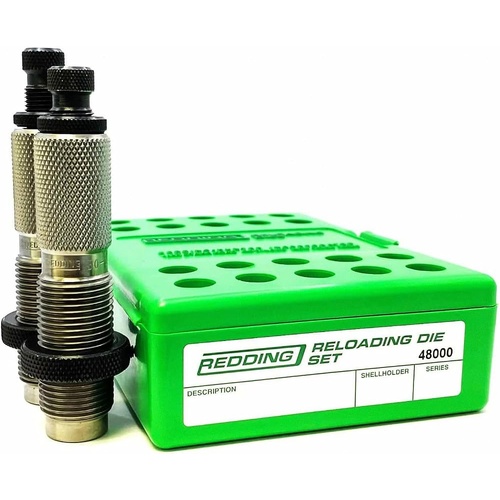

Complete Workshop Storage: Ships in a dedicated plastic storage box containing a spare decapping pin and adjustment hex wrench, weighing approximately 0.45–0.55 kg.
Non-Powered Mechanical Operation: Requires no electrical power (0W), functioning purely through manual press mechanical leverage and high-pressure case lubrication.

Product Specifications

Calibre: .308 Winchester
Material: Alloy steel
Thread Pitch: 7/8"-14
Set Configuration: 2-Die Set (Small Base Full-Length Sizer and Standard Bullet Seater)
Shellholder Compatibility: Standard #1 Shellholder (Part #11001, sold separately)
Total Package Weight: 0.45–0.55 kg

Who is the Redding 308 Winchester Small Base Die Set for?

Handloaders for semi-automatic and pump-action rifles — sizes .308 Winchester brass approximately .001" to .002" below standard SAAMI base dimensions via a 7/8"-14 thread pitch small base sizing die to eliminate stiff lockup and feed failures in actions with limited primary extraction leverage.
Precision shooters with custom match chambers — provides consistent full-length resizing across a package weight of 0.45–0.55 kg, ensuring once-fired range brass chambers reliably into tight minimum-spec .308 Winchester match-grade chambers.

Less suitable for: Handloaders running standard bolt-action rifles with generous factory SAAMI chambers; small base sizing works brass heavily near the case web and accelerates wear, making a standard full-length resizing die set or neck-sizing die set a better choice to maximise brass life.

SKU	RD41643LP
Model #	48155
Brand	Redding
Shipping Weight	1.0000kg
