What reloading press threading and shellholders are compatible with the Redding 56114 .243 Winchester die?

The Redding 56114 competition neck sizing die features standard 7/8"-14 reloading press threading, making it fully compatible with any standard single-stage or turret reloading press used in Australia. It requires a standard Redding Shellholder #1 (Part #11001) or a Competition Shellholder Set #1 (Part #11601) to securely hold your .243 Winchester cases during the sizing operation.

Does this neck sizing die come with sizing bushings and a sizing button included?

No, the sizing bushings are sold separately so you can select the precise size required for your specific brass wall thickness and desired neck tension. The die does not include a sizing button as standard, though optional carbide size button kits can be purchased separately if you prefer additional control over the inside neck diameter.

When should I transition from this neck sizing die to a full-length sizing die or body die?

This die is specifically designed to size only the neck of fire-formed cartridge cases for bolt-action rifles to minimise runout and extend brass life. However, once brass stretching causes bolt-lift to become tight after multiple firings, or if you intend to use the brass in semi-automatic, pump, or lever-action rifles, you must transition to a full-length sizing die or complement this neck die with a dedicated Redding Body Die.

Does this mechanical reloading die require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required for the Redding 56114. Because it is a purely mechanical, non-powered reloading tool, it does not consume electricity and is completely exempt from Australian 240V mains requirements and electrical safety standards.

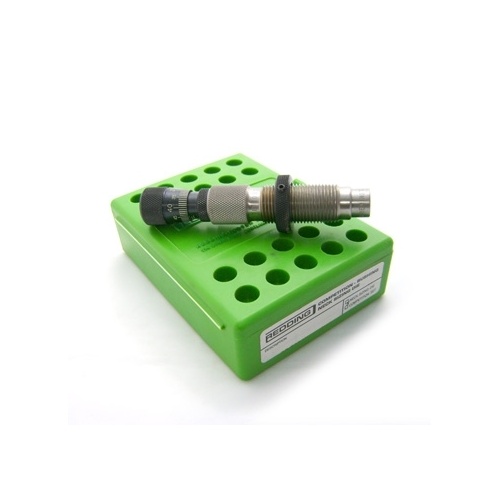

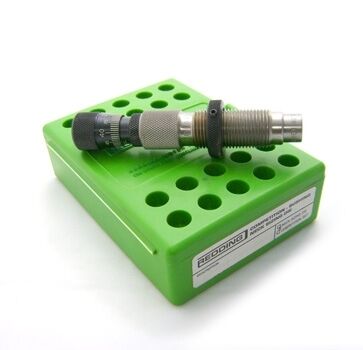

Neck Sizing Die - Redding 56114

The Redding 56114 Competition Neck Sizing Die is a match-grade reloading tool engineered specifically for .243 Winchester cartridge cases. Designed to size only the neck of fire-formed brass while minimising runout, this die uses a free-floating, self-centring bushing system and an internal full-alignment sliding sleeve to guide and support the case before sizing begins. Handloaders can control neck tension precisely without overworking brass or requiring an expander ball, extending cartridge case life and preserving fire-formed case dimensions for dedicated bolt-action rifles.

Key Features

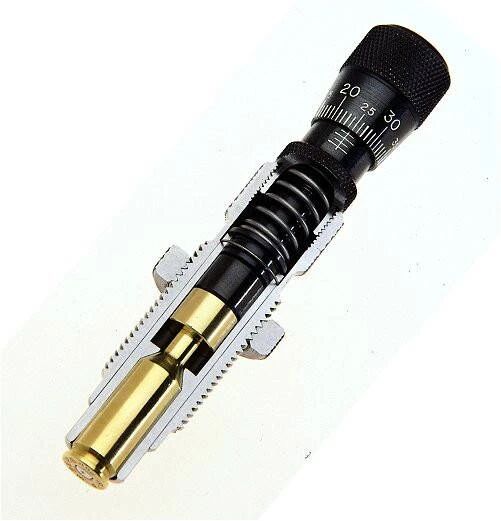

Full Alignment Sliding Sleeve: Features an internal sliding sleeve that fully captures and centres the cartridge case body before the neck enters the sizing bushing.
Precision Micrometer Adjustment: Features a top-mounted micrometer that allows handloaders to adjust the exact length of the case neck being sized in fine increments.
Self-Centring Bushing Design: Accommodates interchangeable neck sizing bushings (sold separately) that float freely within the die to eliminate concentricity errors and runout.
Floating Decapping Assembly: Retains linear decapping pin alignment without the need for an expander button, preventing neck stretching during the press downstroke.

Specifications

Calibre Compatibility: .243 Winchester (0.243 in / 6mm bullet diameter)
Die Type: Micrometer-adjustable competition bushing neck sizing die
Thread Interface: Standard 7/8"-14 reloading press threading
Shellholder Compatibility: Redding Shellholder #1 or Competition Shellholder Set #1
Unit Weight: ~0.499 kg
Packaging Dimensions: 152 mm (L) × 112 mm (W) × 41 mm (H)
Power Requirements: None (purely mechanical operation)

Who is the Redding Competition Bushing Neck Sizing Die for .243 Winchester for?

Precision benchrest shooters reloading for .243 Winchester bolt-action rifles — sizes only the neck of fire-formed brass to match a specific chamber using a micrometer-adjustable bushing system on standard 7/8"-14 threaded reloading presses.
Long-range competition shooters seeking to maximise case life and accuracy — controls neck tension on 0.243 in (6mm) diameter cases via interchangeable self-centring bushings, eliminating the need for an expander ball and minimising brass fatigue.

Less suitable for: Reloaders preparing brass for semi-automatic, pump-action, or lever-action rifles, brass fired across multiple different firearms, or cases where repeated firings cause tight bolt-lift due to shoulder and body growth; these conditions require a full-length sizing die or the addition of a dedicated body die to restore factory body dimensions and bump the shoulder back.

SKU	RD102257LP
Model #	56114
Brand	Redding
Shipping Weight	0.2000kg
