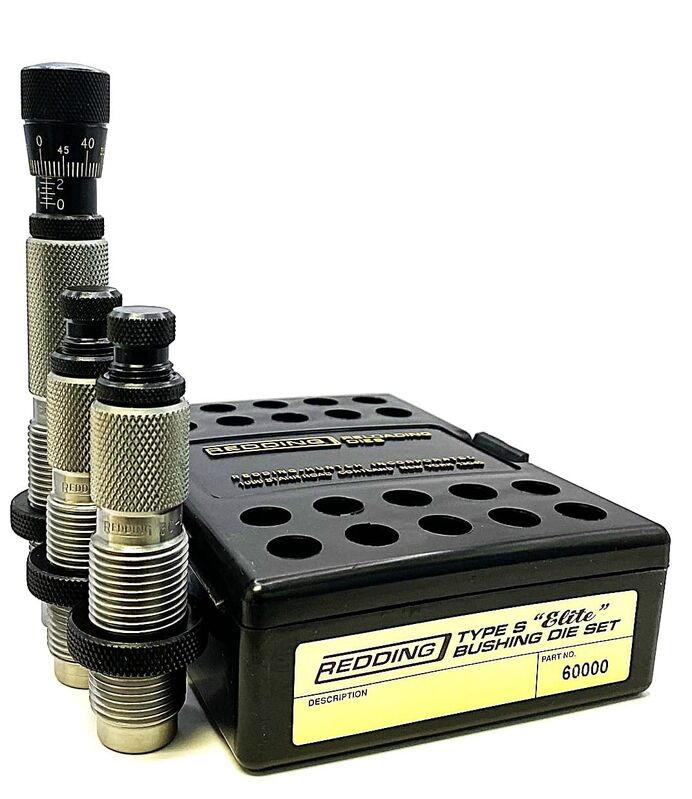

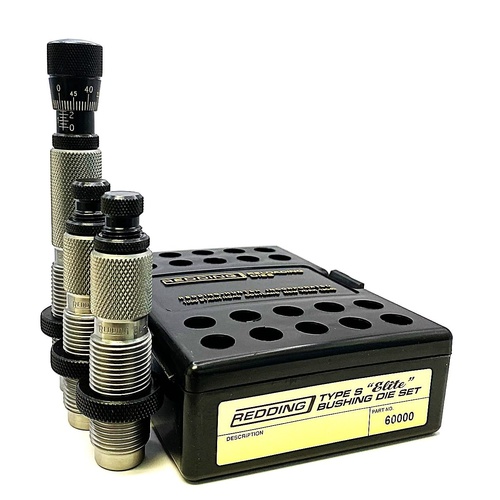

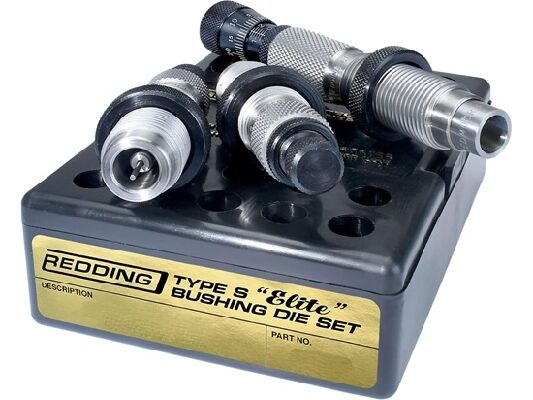

The Redding Type S - Elite Bushing Die Set (.22-250 Remington) is a precision 3-die handloading system engineered for resizing .22-250 Remington cartridge cases and seating 0.224 in bullets. Designed for low-to-medium batch loading on single-stage presses, this set provides precise control over neck tension and bullet seating depth to minimise runout and preserve brass life.

Key Features

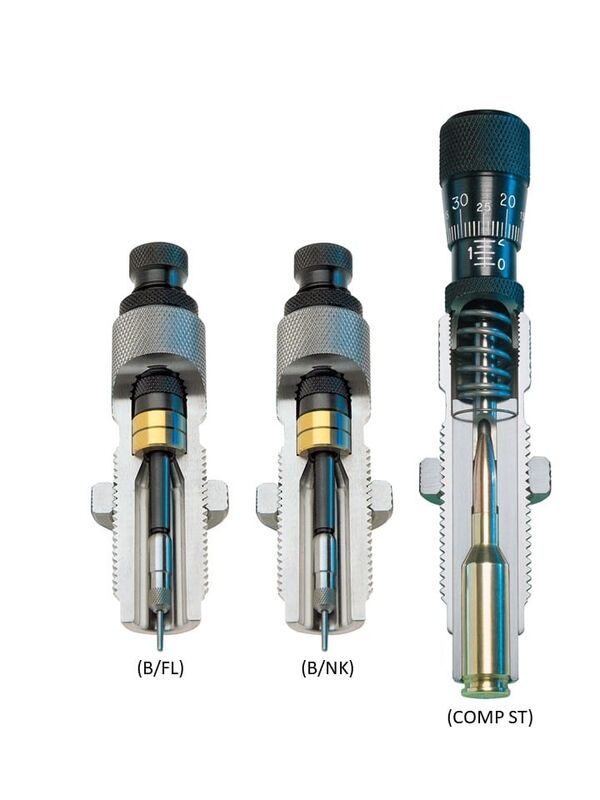

• 3-Die Configuration: Includes a Type S Bushing Full Length Sizing Die, a Type S Bushing Neck Sizing Die, and a Competition Bullet Seating Die with Micrometer.
• Interchangeable Free-Floating Bushing System: Accepts Redding bushings to control case neck tension in precise 0.001 in increments without overworking brass necks.
• Micrometer Seating Die: Features an internal sliding alignment sleeve to support the cartridge case and bullet before seating, with micrometer adjustments graduated in 0.001 in increments.
• Industry-Standard Interface: Machined with 7/8"-14 threads to mount directly onto standard single-stage and turret reloading presses.

Specifications

• Calibre: .22-250 Remington (0.224 in bullet diameter)

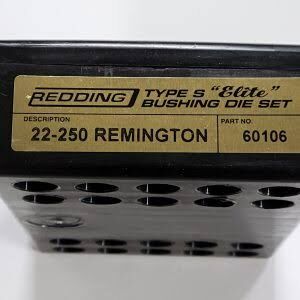

• Manufacturer Part Number (MPN): 60106
• Thread Interface: 7/8"-14 thread
• Included Sizing Dies: Type S – Bushing Full Length Sizing Die (Part #77106), Type S – Bushing Neck Sizing Die (Part #71106)
• Included Seating Die: Competition Bullet Seating Die with Micrometer (Part #55106)
• Compatible Bushing Range: 0.244 in (min) to 0.252 in (max) Redding sizing bushings (sold separately)
• Shellholder Compatibility: Redding Standard Shellholder #1 or Competition Shellholder Set #1 (sold separately)

Who is the Redding 22-250 Rem Type S - Elite Die Set for?

• Precision benchrest shooters — Requires the Competition Seating Die's internal sliding alignment sleeve and 0.001 in micrometer adjustments to minimise bullet runout when handloading .22-250 Remington match ammunition.
• Long-range varmint hunters — Utilises the interchangeable bushing range of 0.244 in to 0.252 in to fine-tune exact case neck tension across fire-formed .22-250 Remington brass.

Less suitable for: Fire-formed .22-250 Remington Improved (Ackley Improved) chambers that require dedicated 40-degree shoulder Ackley Improved sizing dies, or non-standard case neck wall thicknesses that fall outside the 0.244 in to 0.252 in bushing range requiring custom-dimensioned or standard non-bushing sizing dies.
