The Redding 243 Winchester Type S - Elite Die Set (SKU 60114) is a premium three-die reloading system designed to deliver precise case sizing and accurate bullet seating for the standard .243 Winchester cartridge. Built for bench-mounted reloading presses using the industry-standard 7/8"-14 TPI thread interface, this set includes a Type S Bushing Full-Length Sizing Die, a Type S Bushing Neck Sizing Die, and a Competition Seating Die equipped with a micro-adjustable micrometer. The system gives handloaders direct control over neck tension and runout while minimising brass working.

Key Features

• Interchangeable Bushing System: Both sizing dies accept self-centering steel or Titanium Nitride (TiN) neck bushings (available in 0.001" increments), allowing precise neck tension adjustment without overworking the brass.
• Dual Sizing Flexibility: Includes both full-length and neck-sizing dies, giving reloaders the choice to full-length resize for reliable feeding across multiple actions or neck-size fire-formed cases for dedicated bolt-action rifles. Removing the bushing from the full-length die also allows it to serve as a body die.
• Competition Micrometer Seating: The Competition Seating Die features a calibrated micrometer mechanism that aligns both the cartridge case and the .243" (6mm) projectile before seating to ensure minimal bullet runout.
• Benchtop Mechanical Design: A purely mechanical, unpowered handloading tool engineered for benchtop reloading setups.

Specifications

• Cartridge: .243 Winchester (uses .243" / 6mm projectiles)
• Thread Interface: 7/8"-14 TPI

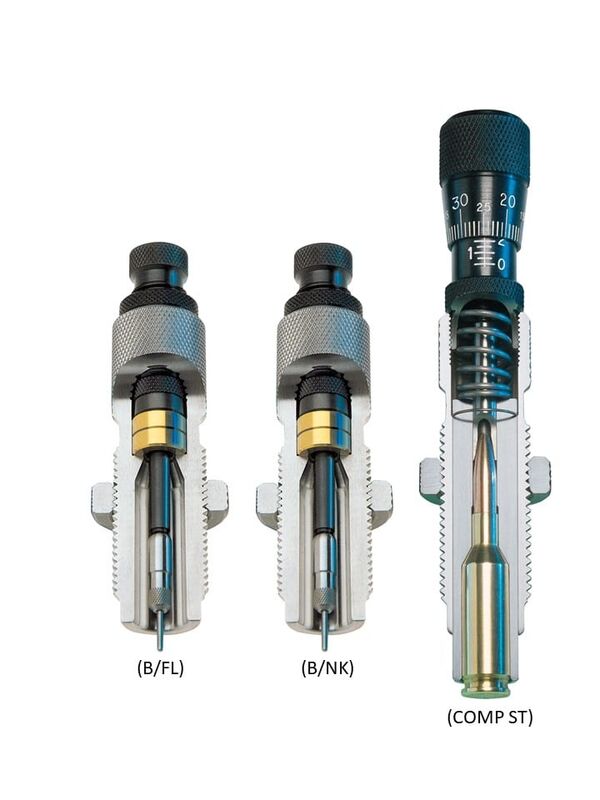

• Included Dies: Type S Bushing Full-Length Sizing Die, Type S Bushing Neck Sizing Die, Competition Seating Die
• Package Dimensions: 152 mm × 109 mm × 44 mm
• Shipping Weight: 0.82 kg (816 g)

Who is the Redding 243 Winchester Type S - Elite Die Set for?

• Precision Rifle Competition Shooters: Demands precise projectile concentricity and calibrated seating depth via the micrometer seating die on this 0.82 kg .243 Winchester elite reloading die set to maintain minimal runout for F-Class and Benchrest matches.
• Long-Range Handloaders: Relies on the standard 7/8"-14 TPI threaded sizing dies to run interchangeable neck bushings in 0.001" increments, controlling neck tension precisely on fire-formed .243 Winchester brass.
• Custom Varmint Reloaders: Needs the versatility of a 0.82 kg three-die set that can switch between dedicated neck sizing for single bolt rifles and full-length body sizing for reliable chambering across different .243 Winchester firearms.

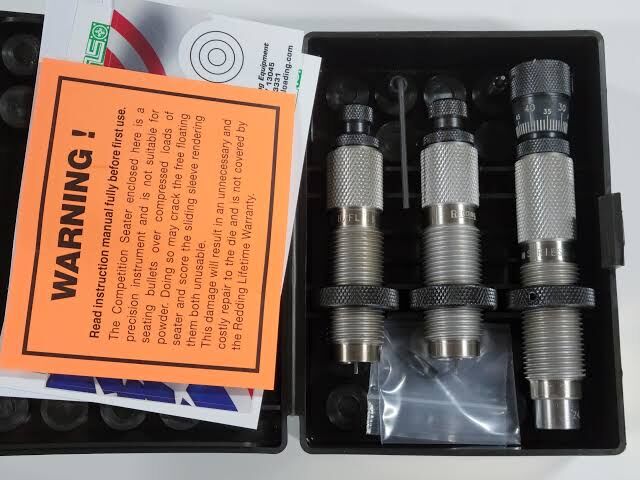

Less suitable for: Handloaders assembling compressed powder charges, as heavy internal compression can damage the micrometer alignment mechanism in the competition seating die (a standard non-micrometer seating die fits compressed loads better), or shooters using non-standard chamberings like .243 WSSM or .243 Win Improved 40°, who require dedicated custom-calibre die sets.
