What components are included in the Redding 60776 Elite Bushing Die Set, and are the neck sizing bushings included?

The Redding 60776 set includes three dies: a Type S Bushing Full Length Sizing Die, a Type S Bushing Neck Sizing Die, and a Competition Bullet Seating Die featuring a micro-adjustable micrometer top. Please note that the interchangeable neck sizing bushings and shellholders are not included in the box and must be purchased separately based on your brass neck wall thickness, with sizes ranging from 0.331" to 0.339" for .300 PRC.

Which reloading presses and shellholders are compatible with the 7/8"-14 TPI thread standard of this .300 PRC die set?

This die set features an industry-standard 7/8"-14 TPI thread, making it fully compatible with all standard single-stage and turret reloading presses such as Redding, RCBS, Lyman, and Lee. For proper case retention during operation, you will need to pair it with a standard Redding Shellholder #6 (Part #11006) or a Competition Shellholder #6 (Part #11606), which are sold separately.

Does this mechanical reloading die set require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required because the Redding 60776 is an entirely non-powered, mechanical handloading tool. It operates purely on manual press leverage without needing a 240V Australian power plug.

How should I maintain these precision steel dies to protect them against corrosion in humid Australian outback or coastal environments?

Because the dies are crafted from precision alloy steel, they should be kept clean, properly lubricated with sizing wax during case preparation, and protected with a light coat of anti-corrosion oil after use. Storing them in a dry environment will prevent surface rust and ensure smooth micro-adjustable operation over many years of reloading.

.300 PRC Die Set - Redding 60776

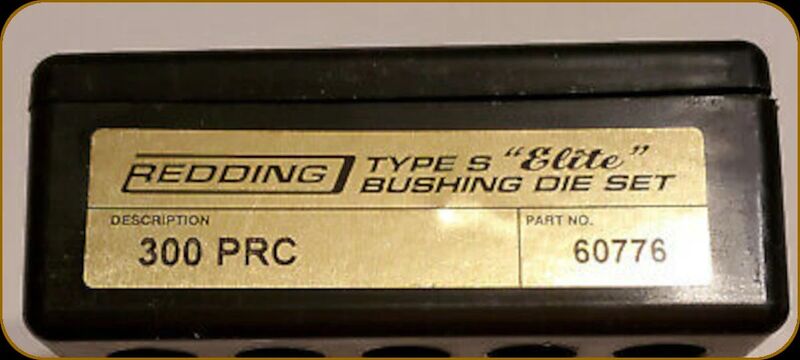

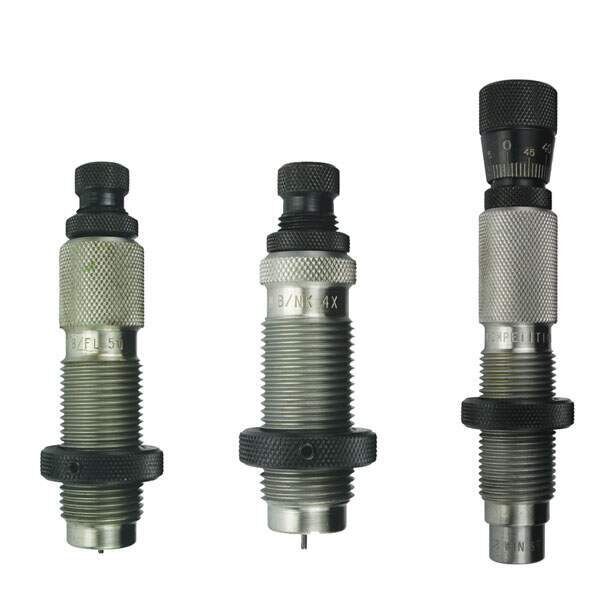

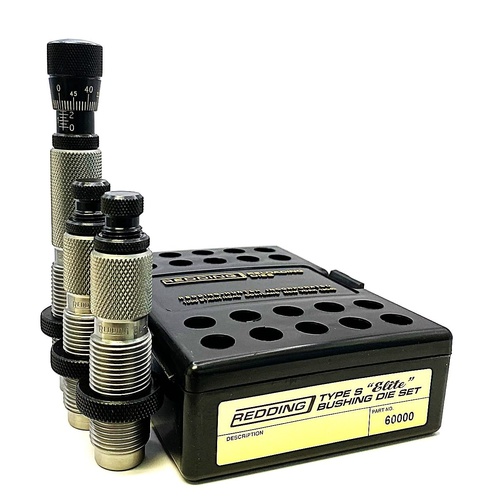

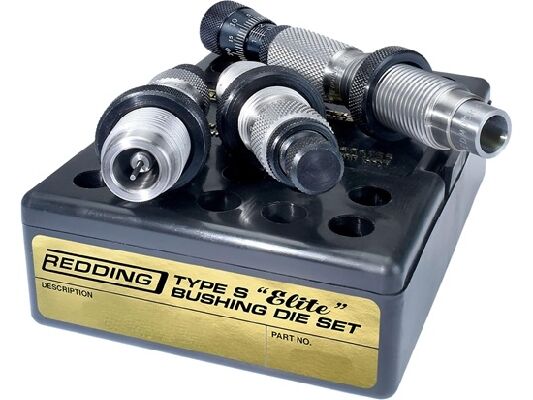

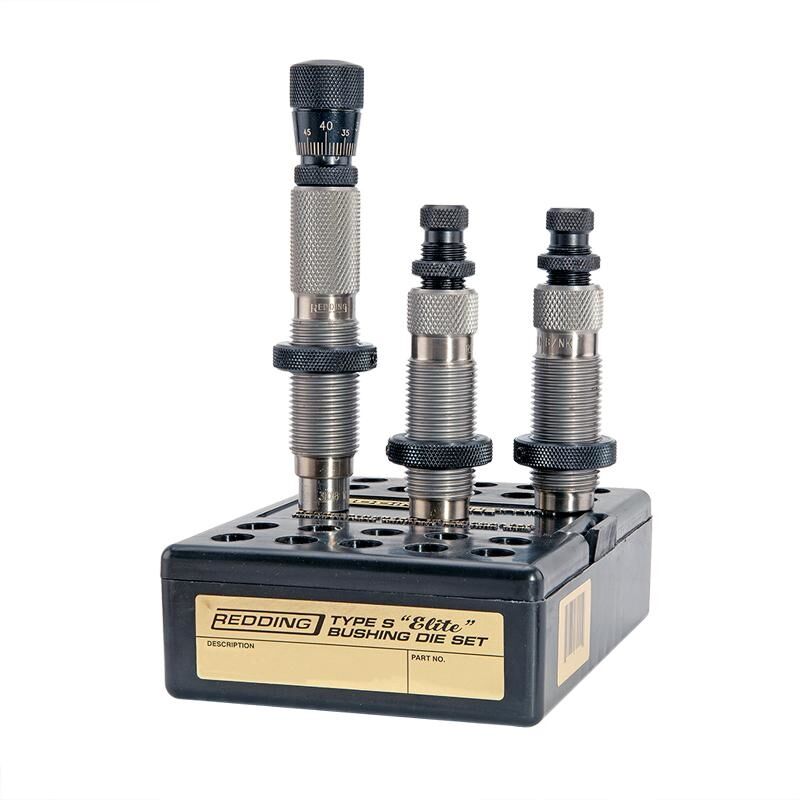

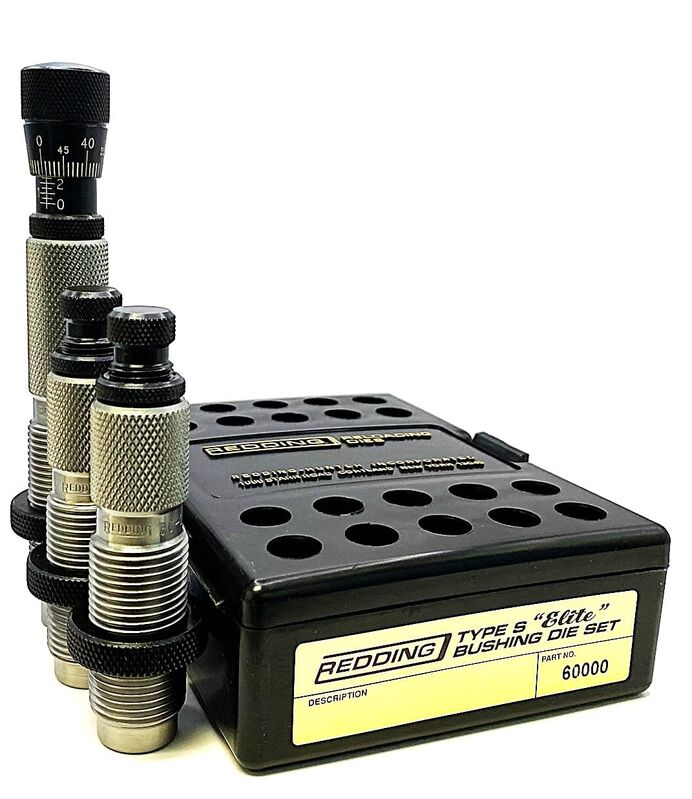

The Redding .300 PRC Type S - Elite Bushing Die Set (MPN 60776) is a precision 3-die handloading kit engineered to resize .300 Precision Rifle Cartridge brass and seat bullets with strict concentricity control. Featuring an industry-standard 7/8"-14 TPI thread pattern, this mechanical die set mounts directly to standard single-stage and turret reloading presses. It provides complete control over case dimensions, neck tension, and bullet seating depth to produce consistent ammunition for extreme long-range shooting.

Key Features

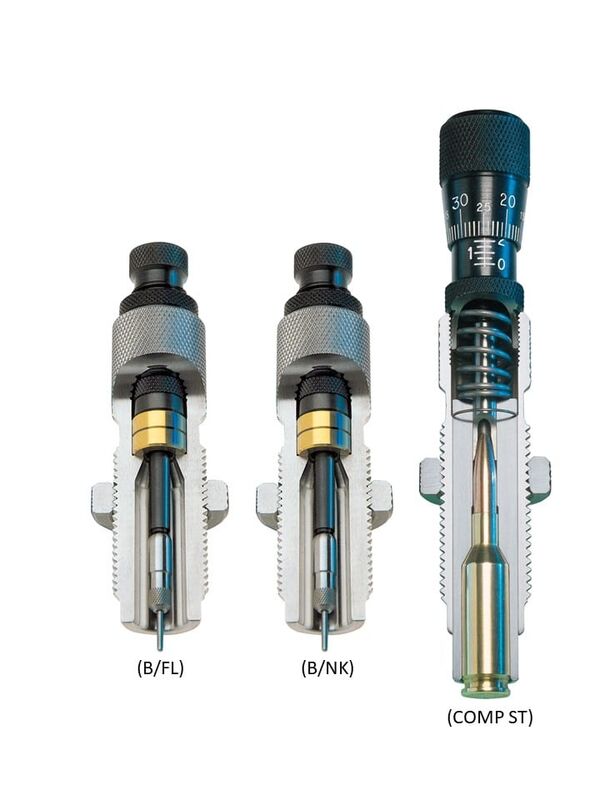

Type S Bushing Full Length Sizing Die: Returns the cartridge body and shoulder to SAAMI specifications while utilizing interchangeable neck sizing bushings to prevent brass overworking.
Type S Bushing Neck Sizing Die: Resizes only the case neck of fire-formed brass without altering the fire-formed body geometry, extending case life and maintaining chamber alignment.
Competition Bullet Seating Die: Integrates a tight-tolerance sliding alignment sleeve and a free-floating seating stem controlled by a top-mounted micrometer graduated in 0.001" increments to minimise bullet runout.
Standard Thread Mounting: Precision-machined with standard 7/8"-14 TPI threads for compatibility with common reloading press stations without requiring powered connections.

Specifications

Calibre: .300 Precision Rifle Cartridge (.300 PRC / .308 in. bullet diameter)
Die Thread Size: 7/8"-14 TPI
Compatible Neck Bushing Range: 0.331" to 0.339" (bushings sold separately)
Micrometer Adjustability: 0.001" increments
Shellholder Compatibility: Standard Redding Shellholder #6 (#11006) or Competition Shellholder #6 (#11606) (sold separately)
Total Boxed Weight: 0.45 kg (1.0 lb)

Who is the Redding .300 PRC Type S - Elite Bushing Die Set for?

Long-range competitive shooters (PRS and ELR disciplines) — Requires the 0.001" micrometer seating adjustments and interchangeable neck bushing accommodation between 0.331" and 0.339" provided by this 300 PRC reloading die set to eliminate runout and maximize extreme-spread consistency past 1,000 metres.
Magnum hunters — Demands the precise shoulder bumping and neck-sizing control of this 300 PRC reloading die set, which installs on standard 7/8"-14 TPI presses, to craft uniform, sub-MOA field ammunition for long-range game harvesting.

Less suitable for: Volume or budget reloaders who do not neck-turn brass or require customizable neck tension, who are better served by standard non-bushing full-length die sets.

SKU	RD41695LP
Model #	60776
Brand	Redding
Shipping Weight	1.0000kg
