What calibre range is the Redding 69300 Large Universal Decapping Die Rod designed to handle?

The Redding 69300 replacement rod is engineered specifically for cartridge cases ranging from 7mm (.284 calibre) up to .50 calibre with case lengths up to 3.0 inches (76.2 mm). It cannot accommodate case neck diameters smaller than 7mm or cases under .25 calibre, for which you would need Redding's small decapping die components instead.

Which specific die model does the Redding 69300 replacement rod fit into?

This replacement rod is directly designed as an OEM component for the Redding Large Universal Decapping Die (Part #69200). It features a standard retention groove secured via a top C-clip, allowing for quick and toolless removal or replacement inside the die body.

Are there any specific safety precautions or Australian compliance requirements for using this decapping rod?

As a fully mechanical reloading tool component, the Redding 69300 requires no electrical input, meaning standard Australian 240V mains compatibility, SAA approval, and RCM regulatory markings do not apply. For safe operation, it is strictly built for Boxer-primed brass and the manufacturer strictly warns never to attempt decapping live primers.

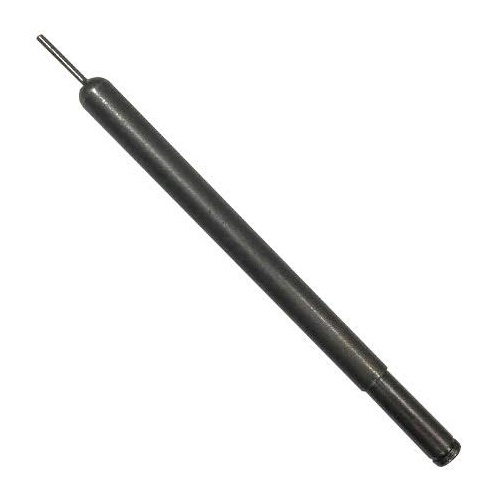

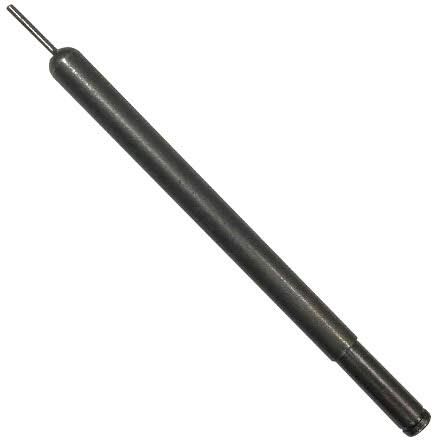

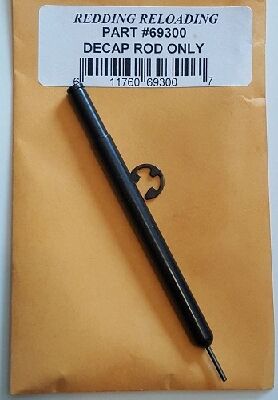

Decapping Die Rod - Redding 69300

The Redding Large Universal Decapping Die Rod (MPN: 69300) is a factory-original replacement decapping rod assembly manufactured in the USA. Designed specifically for the Redding Large Universal Decapping Die (Part #69200), this fully mechanical tool component replaces bent, worn, or damaged decapping assemblies used on stationary bench-mounted reloading presses. It allows handloaders to punch spent Boxer primers from cartridge cases prior to case cleaning or resizing operations.

Key Features

Factory OEM Direct Replacement: Restores factory function to the Redding Large Universal Decapping Die without requiring modification.
Large-Calibre Envelope: Accommodates cartridge cases from 7mm (.284 calibre) through to .50 calibre.
Extended Case Length Handling: Deprimes spent Boxer primers from cases measuring up to 3.0 inches (76.2 mm) in total length.
Retaining Clip Interface: Features a standard retention groove secured by a top C-clip for toolless removal and assembly inside the die body.

Specifications

Brand: Redding Reloading Equipment
Manufacturer Part Number (MPN): 69300
Country of Manufacture: USA
Operation: Manual / mechanical reloading press component
Die Compatibility: Redding Large Universal Decapping Die (#69200)
Calibre Range: 7mm (.284 calibre) to .50 calibre
Maximum Case Length: Up to 3.0 inches (76.2 mm)
Primer Compatibility: Boxer primers only
Packaged Shipping Weight: Approximately 0.63 lbs (~285 g)
Packaged Shipping Dimensions: 4.75 × 3.5 × 1.5 inches (~120.6 × 88.9 × 38.1 mm)

Who is the Redding Large Universal Decapping Die Rod for?

Handloaders processing large rifle brass — Needs a universal decapping die replacement rod that handles calibres ranging from 7mm (.284 calibre) up to .50 calibre with case lengths reaching up to 3.0 inches (76.2 mm).
Sports shooters and hunters maintaining reloading presses — Requires an exact OEM replacement decapping rod assembly to service stationary bench-mounted dies handling spent Boxer-primed cases up to 76.2 mm (3.0 inches) in length.

Less suitable for: Handloaders depriming cases with neck diameters smaller than 7mm (.284 calibre) or sub-.25 calibre brass (such as .22, .20, or .17 calibre cartridges), who require a dedicated small decapping die or small-diameter replacement rod assembly. Never use this tool to decap live primers or Berdan-primed cartridge cases.

SKU	RD41724LP
Model #	69300
Brand	Redding
Shipping Weight	1.0000kg
