Is the Redding 71114 Type S die suitable for reloading .243 Winchester ammunition for a semi-automatic hunting rifle?

No, this neck sizing die is exclusively designed for bolt-action rifles where cases are fire-formed to a single chamber. Semi-automatic, lever-action, or pump-action rifles require full-length resizing for reliable chambering and feeding, making a neck sizing die unsuitable for those platforms.

Do neck-sized cases processed with this die require any additional maintenance after multiple firings?

Yes, because neck sizing leaves fire-formed body dimensions untouched, cases will eventually experience shoulder and body expansion after 3 to 5 firings. When you notice chambering resistance, you must bump the shoulder back using a dedicated body die or a full-length sizing die to ensure smooth operation.

Are neck sizing bushings included with the Redding 71114 die, and how do I select the right size?

Interchangeable sizing bushings are sold separately and are available in 0.001-inch increments to let you precisely control neck tension and bullet grip. For example, if you need a specific steel bushing size like the Redding 73291 (0.291" neck sizing bushing), you will need to purchase it separately based on your brass wall thickness and loaded cartridge dimensions.

243 Win Neck Sizing Die - Redding 71114

Q: What press threading and shellholder do I need to set up the Redding 71114 in my reloading workshop?

The die features an industry-standard 7/8"-14 TPI threading, making it directly compatible with all standard single-stage and progressive reloading presses used in Australia. You will also need a Redding #1 Shellholder or a standard equivalent, which is sold separately.

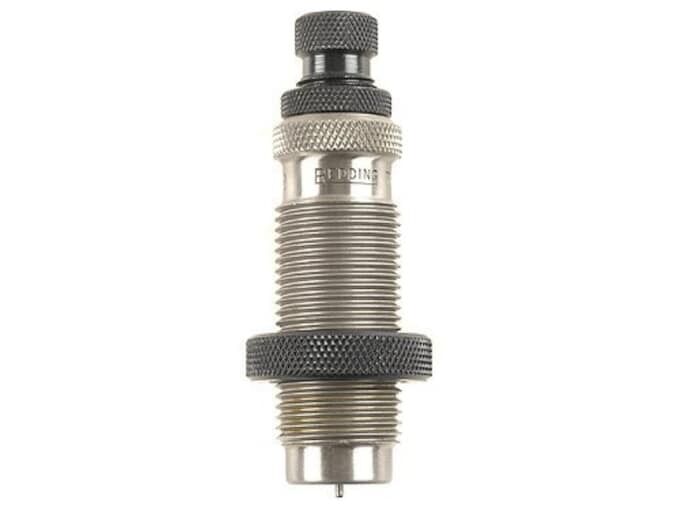

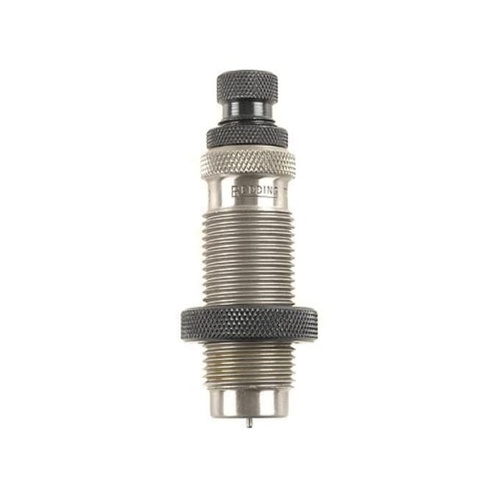

The Redding Type S Neck Bushing Sizing Die (Item #71114) provides precise cartridge neck resizing for .243 Winchester brass. Designed to size only the case neck while leaving the fire-formed body dimensions untouched, it preserves headspace and chamber fit for bolt-action rifles. Machined with industry-standard 7/8"-14 TPI threading, this die integrates into standard single-stage and progressive reloading presses used in Australian workshops. It utilizes interchangeable neck sizing bushings to adjust neck tension without overworking the cartridge brass, maximizing case life and bullet concentricity.

Key Features

Interchangeable Bushing System: Accepts Redding steel or titanium nitride (TiN) neck sizing bushings (sold separately), allowing neck tension adjustments in precise 0.001" increments.
Preserves Fire-Formed Dimensions: Resizes case necks while keeping the cartridge body fire-formed to the specific chamber, maintaining custom-fit headspace.
Dual Setup Modes: Operates with the decapping rod assembly and expander ball installed for commercial brass, or with the expander ball removed when working with uniform, neck-turned cases.
Standard Press Interface: Features 7/8"-14 TPI threads to ensure broad compatibility with standard reloading presses.
Decapping Assembly Included: Ships with an adjustable decapping rod, decapping pin, and expander button.

Specifications

Calibre Compatibility: .243 Winchester
Die Thread Interface: 7/8"-14 TPI
Bushing Adjustment Increment: 0.001"
Required Shellholder: Redding #1 Shellholder (or standard equivalent, sold separately)
Bushing Compatibility: Redding standard steel or TiN neck sizing bushings (sold separately)
Weight: Approximately 0.35–0.45 kg (boxed)
Power Requirements: None (manual reloading tool)

Who is the Redding Type S Neck Sizing Die for .243 Winchester for?

Precision target shooters — Preserves custom chamber headspace for .243 Winchester bolt-action rifles by sizing only the neck, utilizing interchangeable bushings in 0.001" increments to achieve exact neck tension and concentricity on fire-formed cases.
Long-range varmint hunters — Extends brass life across repeated firings by eliminating body resizing on fire-formed .243 Winchester brass while securing consistent bullet grip via a standard 7/8"-14 TPI reloading press setup.

Less suitable for: Semi-automatic, lever-action, or pump-action firearms, as well as bolt-action brass that has exceeded 3 to 5 firings without body resizing; these applications require a full-length sizing die or dedicated body die to ensure reliable chambering.

SKU	RD102299LP
Model #	71114
Brand	Redding
Shipping Weight	0.2000kg
