Will the Redding 71136 Type S Neck Die work on my standard Australian reloading press?

Yes, this die features standard 7/8"-14 reloading press threading, making it fully compatible with all common single-stage and turret presses used in Australia, such as the RCBS Rock Chucker, Hornady Lock-N-Load, and Redding presses. You will also need a Redding #6 Standard Shellholder (Part #11006) or a #6 Competition Shellholder (Part #11606) to secure your 7mm Rem Mag brass properly.

How often do I need to switch from this neck sizing die to a full-length sizing or body die?

Because the Redding 71136 only resizes the case neck and does not push back the shoulder or size the body, case bodies will eventually expand after 3 to 5 firings depending on your chamber pressures. Once you notice stiff or impossible bolt closure, you will need to transition to a Redding Type S Full Length Sizing Die (MPN: 77136) or use a dedicated body die. Neck-only sizing is strictly recommended for bolt-action rifles using fire-formed brass and should be avoided for semi-automatics.

Does the Redding 71136 die come with neck sizing bushings included?

No, the sizing bushings are sold separately to allow you to precisely tune your neck tension using .001" increments. For the 7mm Remington Magnum (.284" bullet diameter), the recommended bushing size range is approximately .305" to .313", depending on your brass wall thickness and whether you turn your necks.

Are there any electrical compliance requirements or Australian certifications needed for this reloading die?

No electrical compliance, 240V mains compatibility, SAA approvals, or RCM markings are required for the Redding 71136. It is a purely mechanical, heat-treated steel reloading tool designed for workshop and indoor bench use.

7mm Rem Mag Neck Die - Redding 71136

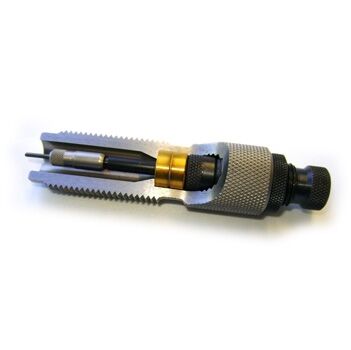

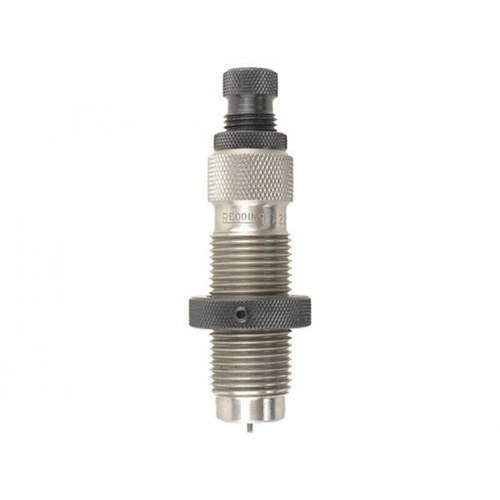

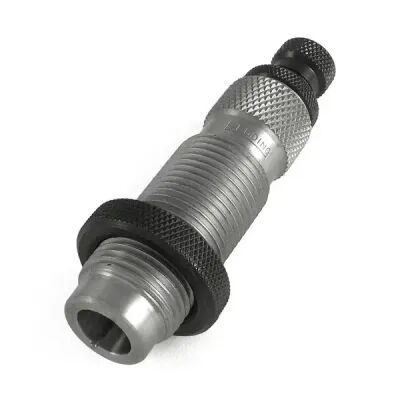

The Redding Type S – Bushing Neck Sizing Die (MPN: 71136) is a precision reloading tool designed for 7mm Remington Magnum cartridges (.284" bullet diameter). Engineered for single-rifle bolt-action setups, this die sizes fire-formed cartridge case necks while preserving the fire-formed dimensions of the case body and shoulder. By utilizing freely floating, interchangeable sizing bushings (sold separately, typically ranging from .305" to .313" for this calibre), the die self-centres on the case neck axis to minimise runout, maintain concentricity, and eliminate overworking of brass.

Key Features

Interchangeable Bushing System: Accepts standard Redding steel or titanium nitride (TiN) bushings adjustable in .001" increments to establish exact neck tension.
Self-Centring Alignment: The freely floating bushing design self-aligns with the cartridge neck axis during the sizing stroke to optimise concentricity.
Dual Decapping Modes: Includes a standard size expander button for commercial unturned brass as well as a decapping pin retainer for turned match brass, allowing decapping without drawing an expander through the neck.
Selective Sizing Depth: The adjustable decapping rod assembly enables handloaders to size the complete neck or only a partial length of the neck.
Standard Press Integration: Features industry-standard 7/8"-14 die threading with an included locking ring to fit standard single-stage and turret reloading presses.

Product Specifications

Calibre: 7mm Remington Magnum (.284" bullet diameter)
Thread Standard: 7/8"-14 TPI
Shellholder Compatibility: Redding #6 Standard Shellholder (Part #11006) or #6 Competition Shellholders (Part #11606)
Bushing Range Compatibility: .305" to .313" diameter bushings (sold separately)

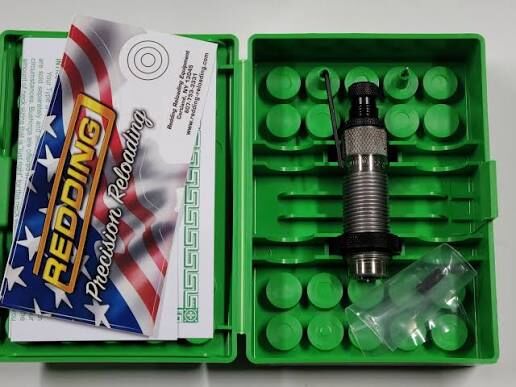

Included Components: Die body, 7/8"-14 lock ring, decapping rod assembly, expander button, decapping pin retainer
Packaged Dimensions: 11.2 cm × 4.4 cm × 4.4 cm (approx. 4.4" × 1.75" × 1.75")
Packaged Weight: Approximately 250 g to 300 g

Who is the Redding 7mm Rem Mag Type S - Neck Die for?

Long-range precision handloaders — requires exact neck tension control for .284" diameter projectiles using interchangeable bushings in .001" increments to extend brass life and minimise runout on fire-formed 7mm Remington Magnum cases.
Benchrest competitors — handloading fire-formed 7mm Remington Magnum brass on standard 7/8"-14 threaded presses who require the ability to decap and size turned case necks without dragging an expander ball through the neck.

Less suitable for: Handloaders processing brass that has reached 3 to 5 firings where body expansion and shoulder migration cause stiff bolt closure, or shooters using semi-automatic, pump, or lever-action actions; these conditions require switching to a full-length sizing die or dedicated body die to bump the shoulder and resize the case body.

SKU	RD41726LP
Model #	71136
Brand	Redding
Shipping Weight	1.0000kg
