Are interchangeable neck bushings included with the Redding 300 PRC Type S Neck Die?

No, interchangeable neck bushings are sold separately to allow you to select the exact sizing diameter needed for your brass. The die requires bushings available in 0.001 inch increments, such as the Redding 73333 0.333 inch neck sizing bushing, depending on your brass wall thickness and loaded cartridge dimensions.

Does this neck sizing die require any special licensing or permits to purchase in Australia?

No, reloading dies and non-pressure-bearing metallic tools are unrestricted for purchase across all Australian states and territories. You do not need a firearms licence endorsement to buy the die itself, though the possession of live ammunition components remains subject to your local state-level legislation.

How do I know when I need to transition from this neck sizing die to a full-length sizing die?

Because neck sizing dies only resize the case neck and do not push back the shoulder, your brass will gradually expand over 3 to 5 firings depending on your chamber pressures. Once you begin to experience heavy bolt lift or failure to chamber your reloads, you will need to incorporate a full-length sizing die or body die to reset the case dimensions.

What shellholders are compatible with the Redding 71776 300 PRC neck die?

This die features industry-standard 7/8 inch-14 TPI press mounting threads and is fully compatible with standard Redding Shellholder number 6 part 11006 or the Competition Shellholder number 6 part 11606. It fits easily into any standard single-stage or turret reloading press using these shellholders.

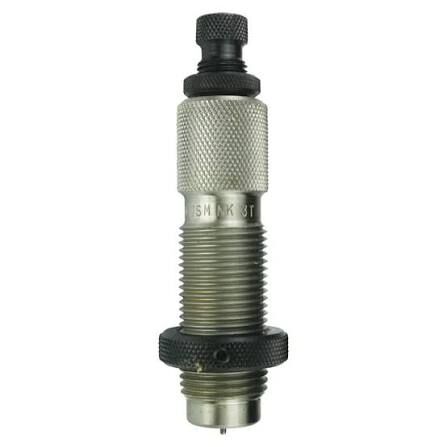

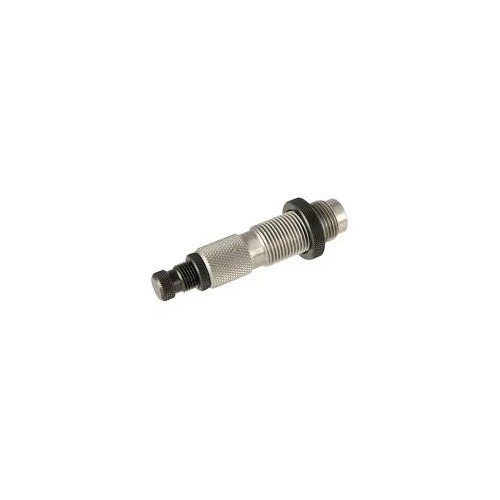

.300 PRC Neck Die - Redding 71776

The Redding Type S – Bushing Style Neck Sizing Die for .300 PRC (MPN: 71776) is engineered for precision metallic reloading, allowing handloaders to resize cartridge case necks while preserving the fire-formed dimensions of the case body. Built from heat-treated alloy steel and machined to standard 7/8"-14 TPI press mounting threads, this die uses interchangeable neck bushings adjustable in 0.001" increments to establish precise neck tension without overworking the brass. The self-centering bushing floats within the die cap to minimise runout and improve bullet concentricity. It includes a complete decapping rod assembly with a .30 calibre size button and a decapping pin retainer for buttonless neck sizing.

Key Features

Interchangeable Bushing System: Accepts interchangeable sizing bushings (available in 0.001" increments) to allow exact control over case neck tension and extend brass case life.

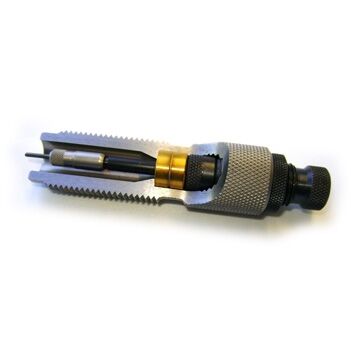

Self-Centering Floating Design: The bushing floats freely inside the die pocket during the sizing stroke, self-aligning to the case neck to minimise concentricity runout.
Adjustable Sizing Depth: The decapping assembly allows reloaders to adjust the bushing position to size either the entire neck length or only a partial section.
Configurable Decapping Assembly: Ships with both an expander size button for commercial brass and a decapping pin retainer for buttonless sizing of uniform or neck-turned brass.

Specifications

Manufacturer Part Number (MPN): 71776
Cartridge Compatibility: .300 PRC (Precision Rifle Cartridge)
Bullet Diameter Compatibility: .308 in (7.82 mm)
Press Thread Size: 7/8"-14 TPI
Shellholder Compatibility: Redding Shellholder #6 (Part #11006) or Competition Shellholder #6 (Part #11606)
Material: Heat-treated alloy steel

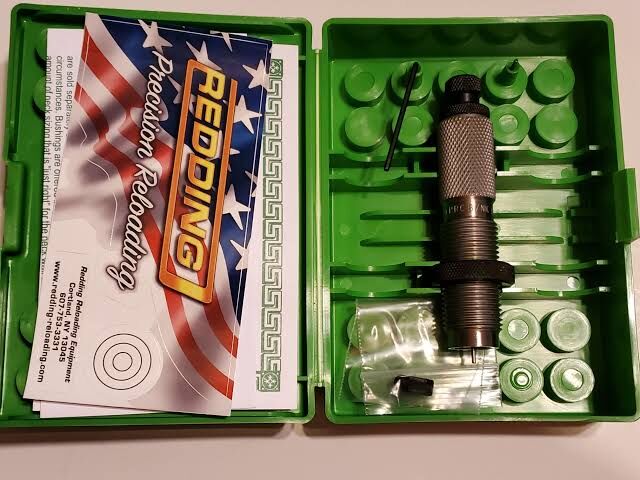

Included Components: Die body, decapping rod assembly (#23308), .30 calibre size button (#40307), decapping pin retainer (#10196), and lock ring (#01016)

Who is the Redding .300 PRC Type S Neck Die for?

Long-Range Precision Rifle Reloaders — Requires exact neck tension control for .308 in (7.82 mm) bullets using interchangeable bushings in 0.001" increments to minimise brass work-hardening across repeated firings in standard 7/8"-14 TPI reloading presses.
F-Class and ELR Competitors — Requires a 300 PRC neck sizing die that maintains the fire-formed body dimensions of dedicated chamber brass, using a floating bushing pocket to minimise neck runout for extreme-distance consistency beyond 1,000 yards.

Less suitable for: Handloaders whose fired cases have expanded after 3 to 5 firings and exhibit heavy bolt lift or chambering resistance; in these conditions, a full-length sizing die or dedicated body die is required to bump shoulders and restore body clearance.

SKU	RD41740LP
Model #	71776
Brand	Redding
Shipping Weight	1.0000kg
