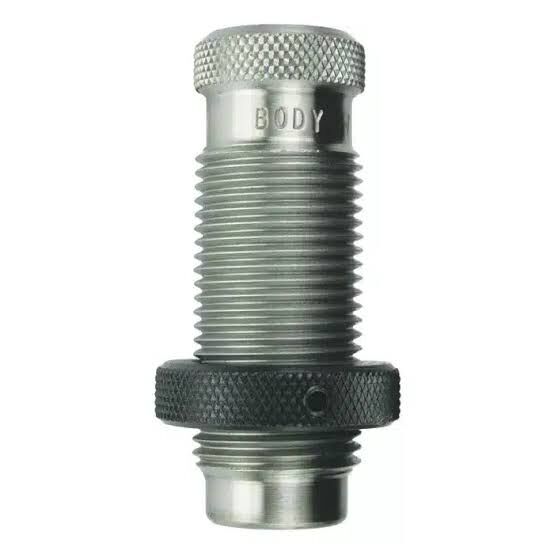

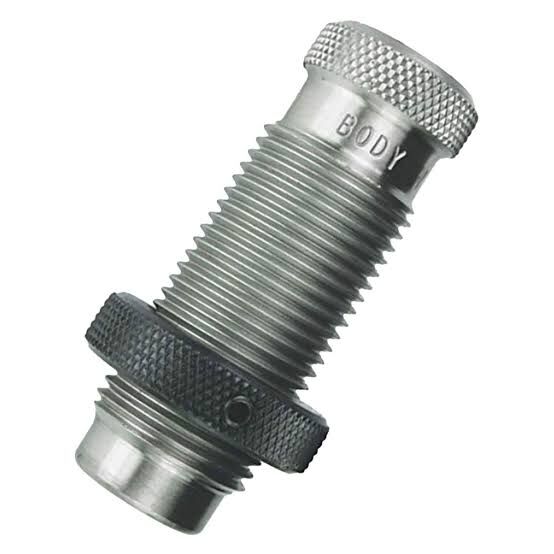

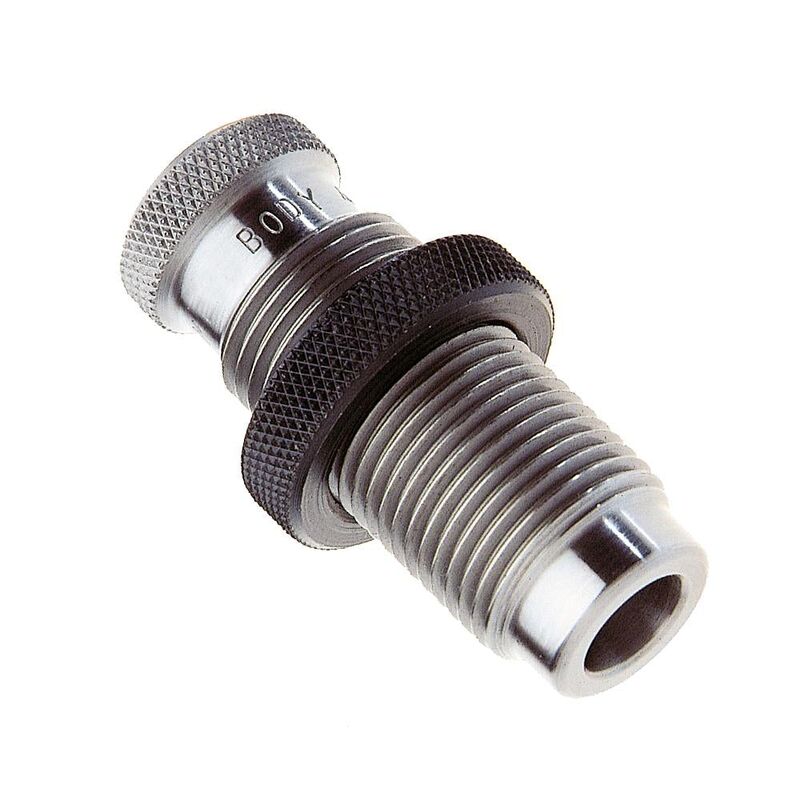

The Redding 22 Creedmoor Body Die (Model: 75302) is a dedicated reloading tool engineered to resize the case body and bump the shoulder of fired .22 Creedmoor brass without sizing or contacting the case neck. Built with standard 7/8"-14 threading, this die restores headspace clearance and maintains smooth chambering when brass expands after multiple firings, eliminating bolt-close resistance while preserving established neck tension. Designed without an expander ball or decapping rod, it operates with zero internal friction points to minimise case stretch and concentricity loss.

Key Features

• Shoulder Bumping and Body Sizing: Resizes the case body and bumps the shoulder back to proper headspace dimensions on .22 Creedmoor brass without touching the case neck.
• Neck-Sizing Companion: Pairs with Type S Bushing Neck Dies or standard neck sizing dies to manage headspace on work-hardened brass without altering neck tension.
• Frictionless Internal Design: Contains no decapping assembly or expander ball, reducing case neck runout and brass stretch during the sizing stroke.
• Standard Press Mounting: Uses industry-standard 7/8"-14 thread pitch and includes Redding's lock ring with a non-marring hex screw to hold depth settings securely.

Specifications

• Product: Redding 22 Creedmoor Body Die
• Model Number: 75302
• Calibre Compatibility: .22 Creedmoor (.224" bullet diameter)
• Thread Pitch: 7/8"-14 thread pitch
• Compatible Shellholders: Redding Shellholder #1 (Part #11001) or Competition Shellholder Set #11601

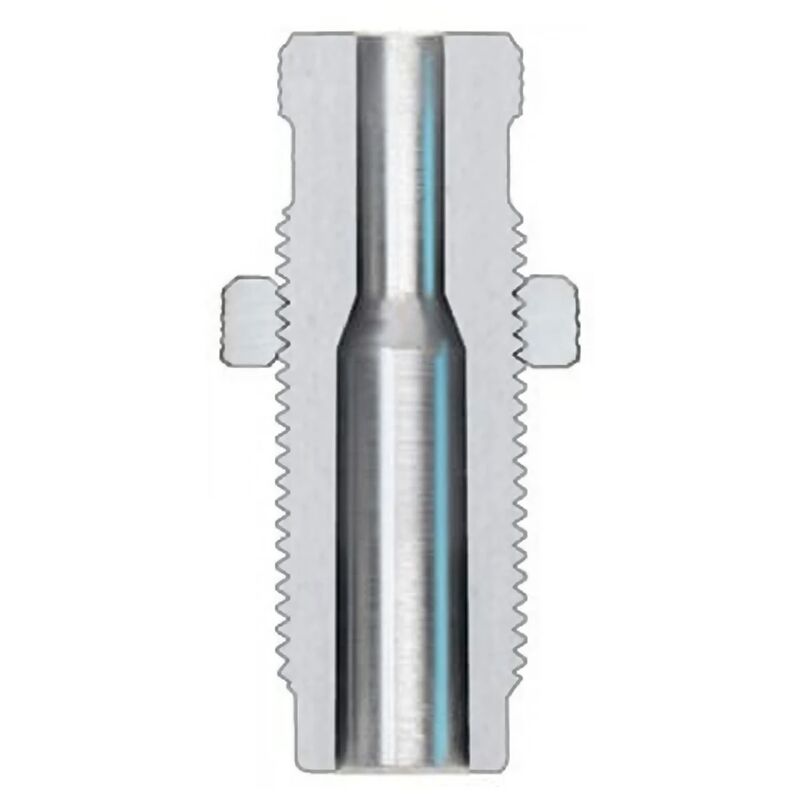

• Internal Mechanism: Hollow-body steel die (no decapping pin, neck bushing, or expander ball)
• Packaged Weight: Approximately 200–250 g
• Operation Type: Manual mechanical reloading press die

Who is the Redding 22 Creedmoor Body Die for?

• Australian PRS precision rifle series shooters handloading 22 Creedmoor — Requires standard 7/8"-14 thread pitch press compatibility to bump case shoulders by 0.001" to 0.002" on .224" bullet diameter brass for reliable feeding across rapid-fire stages without disturbing neck tension.
• Benchrest competitors reloading 22 Creedmoor brass — Uses a solid hollow-body 22 Creedmoor body die design built without an expander ball to prevent concentricity loss and brass stretch across tight-tolerance .224" projectile loads.
• Long-range varmint hunters handloading 22 Creedmoor — Employs a dedicated 7/8"-14 thread pitch body sizing die to eliminate bolt-close resistance on repeat-fired .22 Creedmoor cases while maintaining customized neck sizing.

Less suitable for: Reloaders needing all-in-one depriming, neck sizing, or bullet seating (which require dedicated neck sizing dies, seating dies, or universal decapping dies), or shooters managing tight custom chambers or semi-automatic feeding issues, who require a specialised small-base body die.
