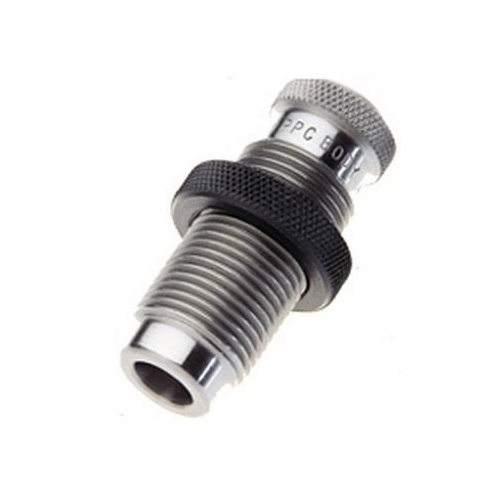

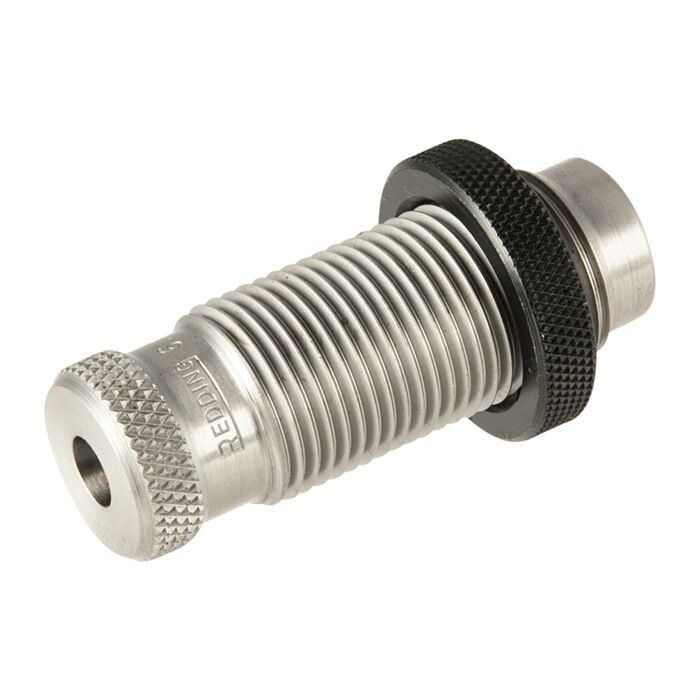

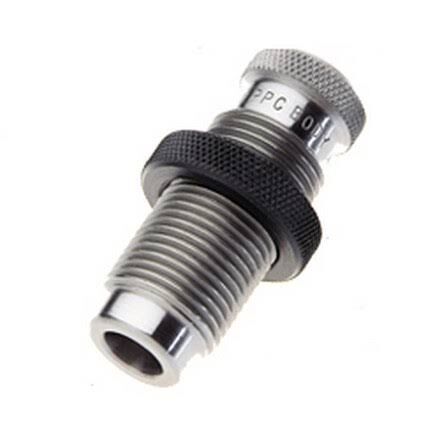

The Redding 75319 6mm PPC USA Body Die is a dedicated case-forming tool designed to full-length resize the case body and bump the shoulder back to correct headspace without contacting or altering the case neck. Built for precision handloaders running standard reloading presses with an industry-standard 7/8"-14 thread interface, this die contains no internal decapping assembly or expander button. It functions as a specialised companion die for shooters who prefer to manage neck tension separately, restoring proper chambering clearance to 6mm PPC USA brass once cases become tight after multiple firings.

Key Features

• Dedicated Body Resizing and Shoulder Bump: Restores factory case body dimensions and bumps the shoulder back to maintain reliable chambering without touching the neck.
• Preserves Neck Geometry: Features internal dimensions machined to bypass the case neck entirely, preventing unwanted working of neck brass or alterations to existing neck tension.
• Streamlined Mechanical Design: Manufactured without an internal decapping rod, expander button, or moving internal components, eliminating friction and runout during the sizing stroke.
• Press Compatibility: Utilises standard 7/8"-14 threading to fit standard single-stage and turret reloading presses.

Specifications

• Calibre: 6mm PPC USA (0.243-inch bullet diameter family)
• Die Type: Body sizing die (non-decapping, non-neck-sizing)
• Thread Interface: 7/8"-14 standard press thread
• Required Shellholder: Redding #12 standard shellholder or Redding Competition Shellholder #12 (sold separately)
• Approximate Packaged Weight: 0.2 kg to 0.3 kg
• Lubrication: Case sizing lubricant required prior to operation

Who is the Redding 6mm PPC USA Body Die for?

• Precision benchrest shooters reloading 6mm PPC USA — requires bump-sizing fired 6mm PPC USA cartridge cases on standard 7/8"-14 threaded presses to correct headspace growth while maintaining customised case neck dimensions without disturbance.
• Target reloaders utilizing neck-sizing dies — pairs with dedicated neck-sizing setups to periodically restore case body clearance and shoulder placement on 6mm PPC USA brass using a #12 shellholder without subjecting the case neck to extra working cycles.

Less suitable for: Firearm chambers cut to tight custom match tolerances that fall below standard SAAMI dimensions, which require a small base body die, or reloading workflows requiring simultaneous neck sizing, decapping, and body sizing in a single stroke, which require a standard full-length sizing die.
