Can I use the Redding 6mm Creedmoor Body Die on 6.5 Creedmoor or .22 Creedmoor brass?

No, this die (Model 75443) is exclusively dedicated to standard 6mm Creedmoor cartridge dimensions. Using it on other Creedmoor variants will result in incorrect shoulder bump and case sizing. You must use caliber-specific dies for 6.5 Creedmoor or .22 Creedmoor.

Does this body die resize the case neck or decap primers?

No, the Redding Body Die features no internal moving parts and does not contain an expander ball, neck bushing, or decapping assembly. It is designed strictly to resize the case body and bump the shoulder without altering the neck diameter, allowing you to use it alongside a neck-sizing or bushing die. Primers must be decapped using a separate dedicated tool.

What shellholders are compatible with the Redding 6mm Creedmoor Body Die?

This die requires either a Redding Standard Shellholder #1 (Part #11001) or a Redding Competition Shellholder Set #1 (Part #11601) to function correctly in your reloading press. It features industry-standard 7/8"-14 threading, making it compatible with all standard single-stage and turret reloading presses.

Can I use this body die on loaded ammunition or do I need case lubrication?

The manufacturer explicitly warns against using body dies on loaded ammunition; it is strictly intended for unloaded, fired brass cases. Because it performs full-length case body sizing, you must apply a high-pressure case lubricant, such as Imperial Sizing Die Wax, prior to cycling cases into the die to prevent stuck cases.

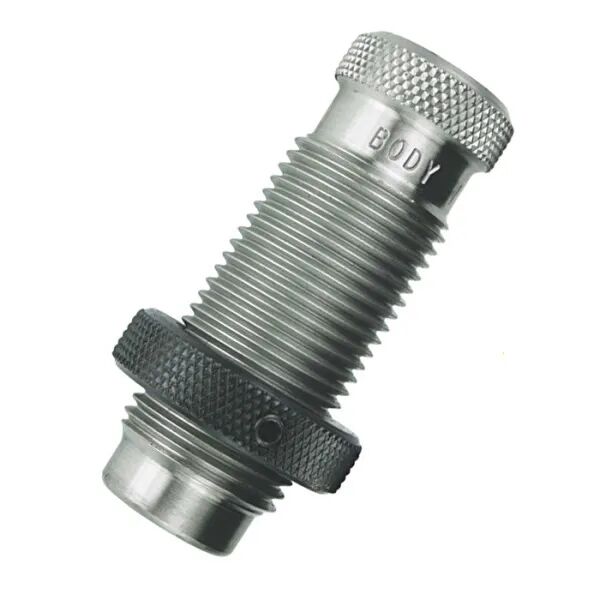

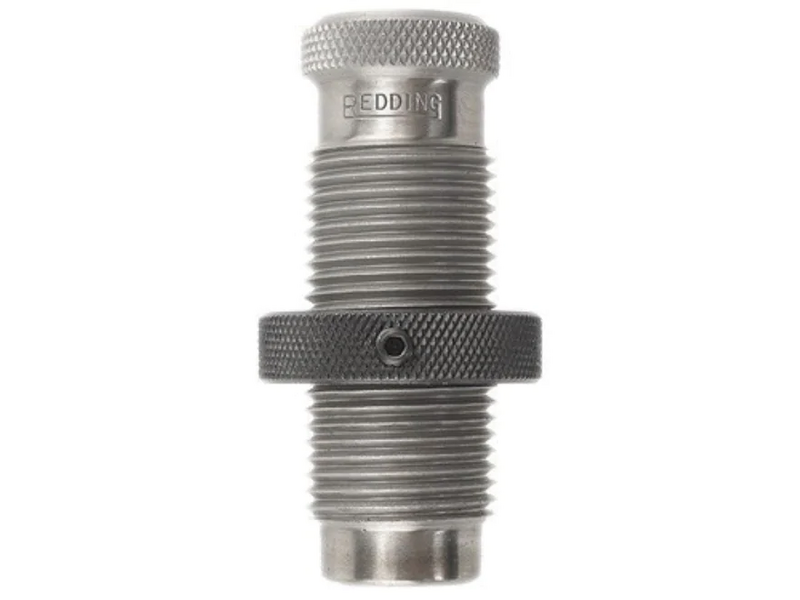

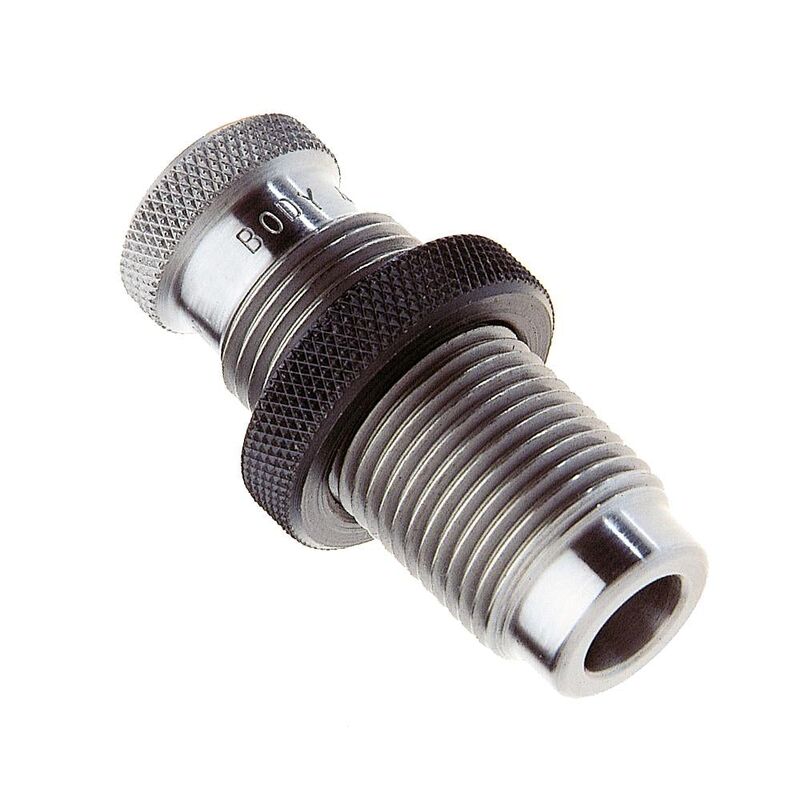

6mm Creedmoor Body Die - Redding 75443

The Redding 6mm Creedmoor Body Die (MPN: 75443) is a precision reloading tool engineered specifically to full-length resize the cartridge case body and bump the shoulder back to achieve correct chamber headspace without contacting or altering the case neck. Built with industry-standard 7/8"-14 threading, this mechanical steel die contains no internal expander ball, neck bushing, or decapping assembly. It is designed to be used in conjunction with neck-sizing or bushing dies, allowing reloaders to maintain proper headspace dimensions and ensure effortless bolt-action chambering while extending the working life of their cartridge brass.

Key Features

Independent Body Sizing & Shoulder Bump: Restores fired case body dimensions and sets back the cartridge shoulder without altering neck diameter or neck tension.
Bushing & Neck-Die Companion: Designed to pair with bushing neck dies or neck-only sizing dies to maintain consistent headspace across repeated firings.
No Decapping Assembly: Contains no internal moving components or expander balls; decapping must be completed separately with a dedicated tool.
Standard Press Interface: Machined with 7/8"-14 outer threading and includes a knurled steel lock ring for secure installation on standard reloading presses.

Product Specifications

Manufacturer: Redding Reloading Equipment
Model Number: 75443
Calibre Compatibility: 6mm Creedmoor (0.243 in bullet diameter)
Press Thread Size: 7/8"-14 thread
Shellholder Requirement: Redding Standard Shellholder #1 (Part #11001) or Redding Competition Shellholder Set #1 (Part #11601)
Case Lubrication: Required (high-pressure sizing lubricant)
Operation: Mechanical, non-powered

Who is the Redding 6mm Creedmoor Body Die for?

Precision Rifle Series (PRS) competitors — requires bumping the shoulder and sizing the body of 6mm Creedmoor brass across standard 7/8"-14 threaded presses to ensure flawless, rapid chamber cycling between stages without working the case neck.
Long-range target shooters — isolates case body and shoulder dimensions on fired 6mm Creedmoor cases to preserve concentricity and maintain precise chamber headspace alongside neck-bushing tools.
Long-range bolt-action hunters — restores reliable chambering clearance for 6mm Creedmoor hunting brass on standard 7/8"-14 press setups without disturbing fine-tuned neck tension.

Less suitable for: Reloading other Creedmoor variants such as 6.5 Creedmoor or .22 Creedmoor cases, which require dedicated calibre-specific body dies; sizing loaded ammunition (unloaded brass only); and semi-automatic rifles with undersized chambers, which require a small base body die or an all-in-one full-length sizing die with integrated decapping.

SKU	RD41800LP
Model #	75443
Brand	Redding
Shipping Weight	1.0000kg
