Does the Redding 300 PRC Body Die remove spent primers during the sizing operation?

No, this die features no internal moving parts and does not include a decapping assembly. If you require spent primer expulsion while sizing, you will need to use a dedicated decapping die or switch to a standard full-length sizing die instead.

What shellholders are compatible with the Redding 75776 Body Die for setup on a standard reloading press?

This die utilizes industry-standard 7/8"-14 threading and is designed to pair directly with either a Redding #6 Standard Shellholder or a Redding Competition Shellholder #6. It fits easily into standard single-stage and turret presses used by Australian handloaders.

Can I use this body die to resize and shape the case necks of my .300 PRC ammunition?

No, the Redding 300 PRC Body Die is specifically engineered to resize only the case body and bump back the shoulder without touching the neck. For optimal modular reloading, handloaders typically pair this with a neck-sizing component such as the Redding 73333 Neck Sizing Bushing to control neck tension independently.

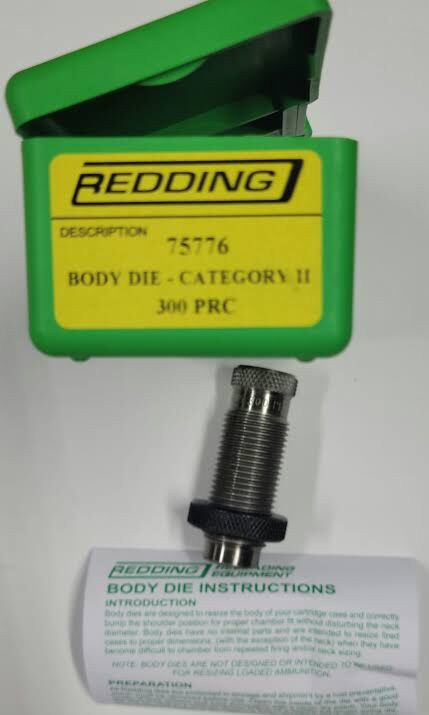

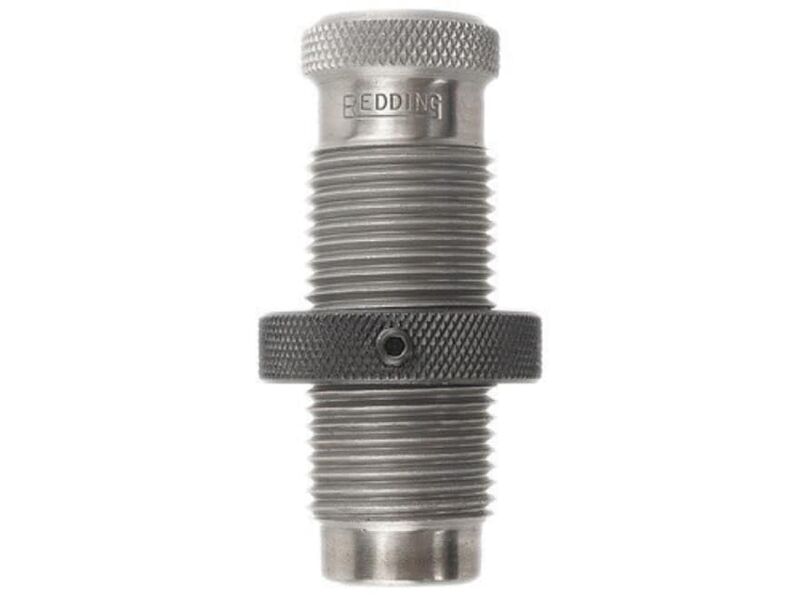

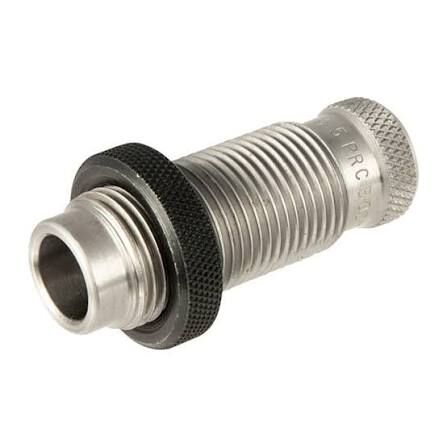

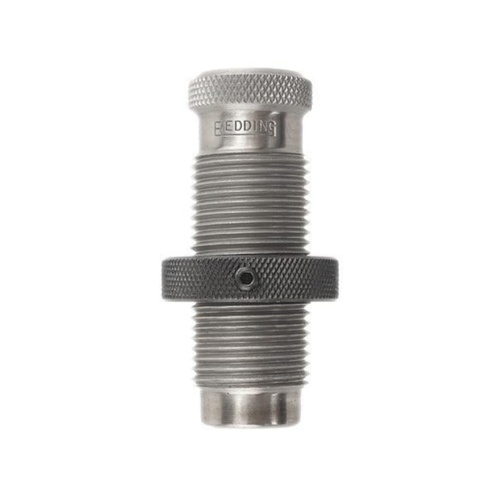

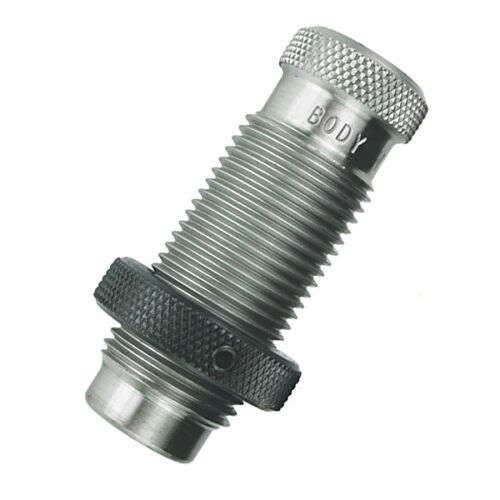

Redding 300 PRC Body Die - Redding 75776

The Redding 300 Prc Body Die (Manufacturer SKU: 75776) is a precision cartridge-reloading tool engineered specifically for the .300 Precision Rifle Cartridge (.300 PRC). Designed for manual mechanical reloading presses, this die resizes the cartridge case body and bumps the shoulder position to maintain proper cartridge headspace and reliable chambering without contacting or resizing the case neck. Built from precision-machined, heat-treated steel, it features no internal moving parts or decapping assembly, allowing handloaders to separate case body sizing from neck tension management.

Key Features

Dedicated Case Body and Shoulder Resizing: Restores factory body dimensions and bumps the shoulder on fired brass without working or sizing the case neck.
No Internal Moving Parts: Functions without an expander ball or decapping rod assembly, eliminating internal friction and preventing unwanted neck runout during the sizing stroke.
Modular Handloading Integration: Designed to pair with bushing neck sizing dies or dedicated neck dies, giving reloaders independent control over neck tension and shoulder bump.
Heat-Treated Steel Construction: Precision-machined for long service life and supplied with a standard Redding lock ring for secure press setup.
Standard Press Mounting: Features standard 7/8"-14 threading for direct compatibility with standard reloading presses.

Product Specifications

Calibre Compatibility: .300 PRC (.308" projectile diameter)
Die Type: Case Body Resizing Die (non-decapping, non-neck-sizing)
Press Threading: Industry-standard 7/8"-14 threads
Required Shellholder: Redding #6 Standard Shellholder (SKU: 11006) or Competition Shellholder #6 (SKU: 11606)
Material: Heat-treated steel
Operation: Manual mechanical (requires external case lubrication, such as sizing wax)

Who is the Redding 300 PRC Body Die for?

Precision handloaders tuning .300 PRC ammunition for long-range shooting — requires precision shoulder bumping and case dimension restoration on .300 PRC (.308" projectile diameter) cases using standard 7/8"-14 threaded reloading presses without altering finely tuned neck tension.
Handloaders seeking to extend brass case life through modular neck and body sizing — pairs with dedicated neck-sizing dies using Redding #6 shellholders to full-length resize cartridge bodies only when brass flow causes stiff bolt closure, minimising unnecessary work-hardening of .300 PRC brass.

Less suitable for: Reloaders who require spent primer expulsion during sizing, who should instead use a dedicated decapping die or standard full-length sizing die, and high-volume hunters seeking single-operation reloading who are better served by a traditional single-step full-length sizing die.

SKU	RD41805LP
Model #	75776
Brand	Redding
Shipping Weight	1.0000kg
