What reloading press threads and shellholders are required to set up the Redding 77135 Type S Full Length Die in my workshop?

The Redding 77135 features standard 7/8"-14 thread pitch making it fully compatible with all industry-standard single-stage and progressive reloading presses commonly available in Australia. For optimal shell retention, you will need to separately acquire a standard Redding Shellholder #1 (Part #11001) or a Redding Competition Shellholder #1 (Part #11601).

Do I need to purchase neck sizing bushings separately for this .270 Winchester die?

Yes, the neck sizing bushings are sold separately and are not included in the box. This die is designed to accept standard Redding neck sizing bushings ranging from 0.298" minimum to 0.306" maximum, allowing you to precisely tune your cartridge neck tension.

Does this mechanical reloading die require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required because the Redding 77135 is a purely mechanical, bench-mounted reloading tool that does not draw 240V mains power or use electrical components. It is entirely suited for manual operation in any Australian shed or reloading bench setup.

Can I use this die to reload calibres other than .270 Winchester, such as .30-06 Springfield?

No, this die is strictly engineered for .270 Winchester brass utilising 0.277" diameter projectiles and cannot be used for .30-06 Springfield or .280 Remington without using cartridge-specific dies. Attempting to use mismatched calibres will result in improper case sizing and chambering failures.

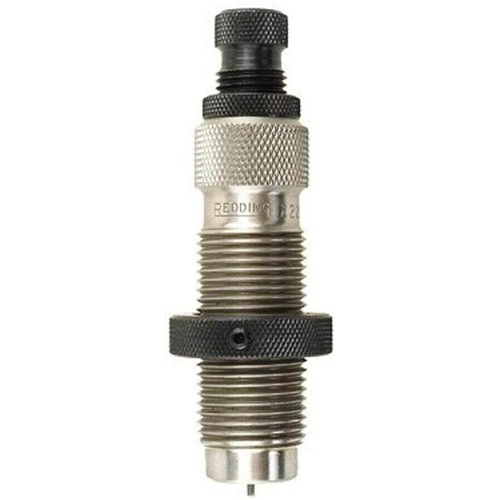

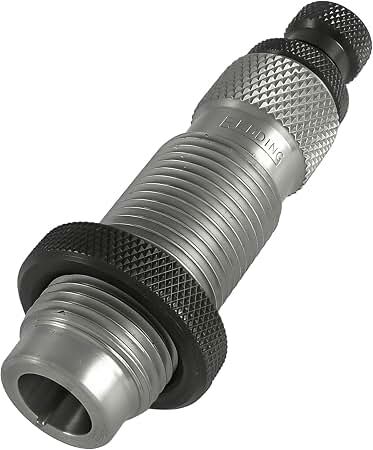

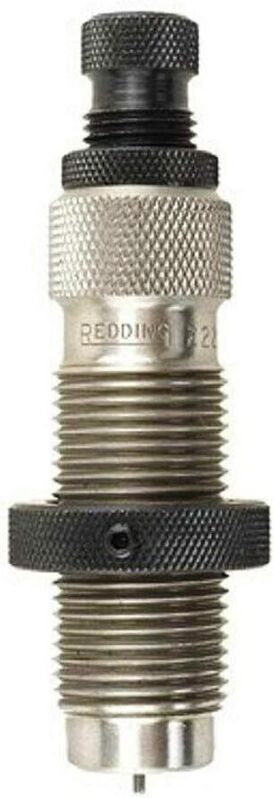

270 Win Sizing Die - Redding 77135

The Redding Type S Bushing Full Length Sizing Die for .270 Winchester (MPN 77135) resizes the cartridge case body, bumps the shoulder to restore proper headspace, and precisely regulates neck diameter in a single press stroke. Engineered for precision reloading, it uses interchangeable self-centering bushings to control neck tension without overworking brass necks, enhancing concentricity and minimising runout for cartridges loaded with 0.277" diameter projectiles.

Key Features

Interchangeable Bushing System: Employs freely self-centering neck sizing bushings (sold separately) to set precise neck tension in .001" increments.

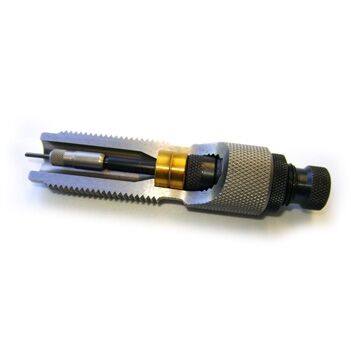

Dual-Operation Expander Assembly: Includes a standard steel size button for non-turned brass and an alternative decapping pin retainer to eliminate neck expansion on neck-turned brass.
Adjustable Sizing Length: The internal decapping spindle adjusts vertically to size either the entire neck length or a partial section of the case neck.
Body Die Functionality: Removing the internal decapping rod assembly and bushing converts the tool into a dedicated shoulder bump and body sizing die.
Standard Press Mounting: Features standard 7/8"-14 threading to fit industry-standard single-stage and turret reloading presses.

Specifications

Calibre: .270 Winchester
Compatible Bullet Diameter: 0.277"
Thread Pitch: 7/8"-14
Compatible Bushing Range: 0.298" to 0.306" outer diameter
Shellholder Fitment: Redding Shellholder #1 or Competition Shellholder #1 (sold separately)

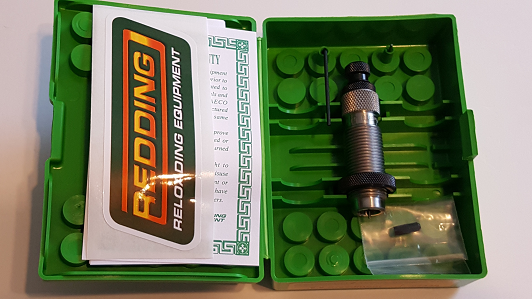

Included Components: Die body, decapping rod assembly (#23277), steel expander button (#40276), decapping pin retainer (#10196), decapping pin (#01060), and 7/8"-14 lock ring (#01016)

Who is the Redding 270 Win Type S - Full Length Die for?

Long-range precision shooters — Requires precise control over cartridge neck tension across a 0.298" to 0.306" bushing range to minimise projectile runout and maintain consistent muzzle velocities in .270 Winchester match loads.
Hunters reloading for bolt-action rifles — Needs complete case body resizing and shoulder bump via a standard 7/8"-14 thread pitch die to guarantee smooth, reliable chambering in field conditions for 0.277" calibre hunting rifles.

Less suitable for: Reloaders processing parent cases such as .30-06 Springfield or .280 Remington, which require dedicated calibre-specific full-length sizing dies, or those loading fire-formed brass exclusively for a single rifle where a neck-only sizing die is preferred.

SKU	RD41828LP
Model #	77135
Brand	Redding
Shipping Weight	1.0000kg
