Will the Redding 77211 Small Base Type S Die fit my standard Australian reloading press?

Yes, this die features standard 7/8"-14 reloading press threading, making it fully compatible with virtually all single-stage and turret presses commonly used by Australian handloaders. No special adaptors are required to mount the die body securely to your bench.

What additional components do I need to purchase separately to start reloading 6mm PPC with this die?

To complete your setup, you will need to purchase Redding sizing bushings in the appropriate diameter for your neck tension requirements, along with a standard reloading shellholder #12 (Part #11012) or a Redding Competition Shellholder #12 (Part #11612). The die comes with the decapping rod assembly and standard expander button included.

Is this small-base die recommended if my 6mm PPC rifle has a standard factory chamber?

No, if your rifle features a standard factory or loose-spec chamber, standard Type S Full Length Dies or Neck Sizing Dies are better suited. Small-base dies like the 77211 work the lower brass wall more aggressively to ensure chambering in tight match chambers, which can unnecessarily reduce case life if over-sizing is not required.

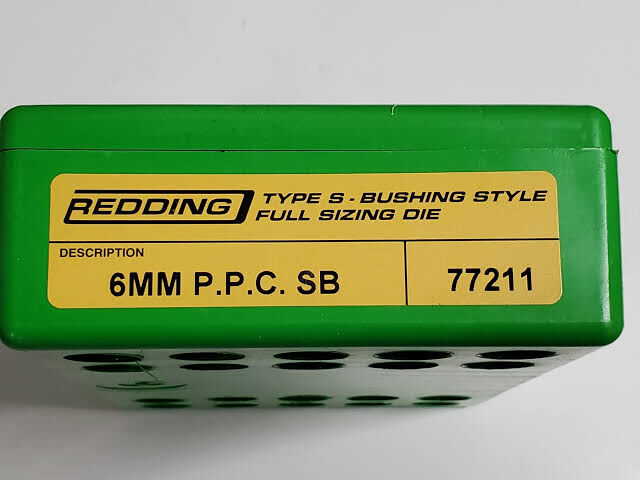

6mm PPC Reloading Die - Redding 77211

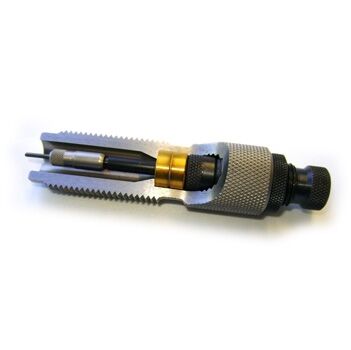

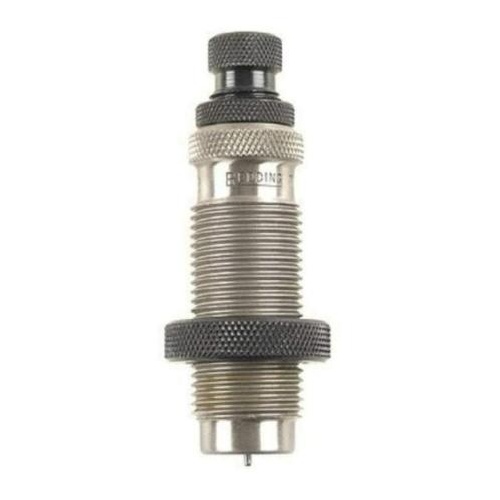

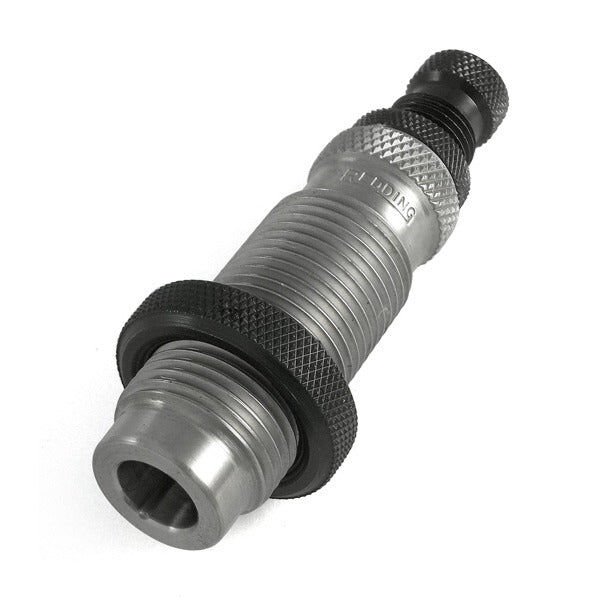

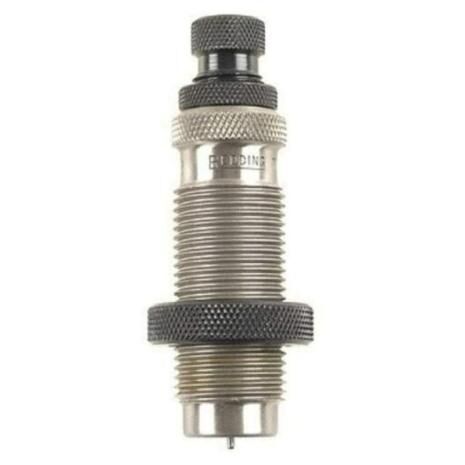

The Redding 6mm PPC Small Base Type S – Full Length Resizing/Bushing Die (Item #77211) is a precision reloading tool engineered to resize cartridge cases for firearms with tight-tolerance chambers. It sizes the cartridge body and lower web area slightly below standard SAAMI dimensions to prevent stiff bolt closure and guarantee smooth cycling. Built with an interchangeable bushing system, it gives reloaders precise control over case neck tension without overworking the brass, ensuring enhanced concentricity and reduced runout for competitive benchrest applications.

Key Features

Small-Base Sizing Profile: Sizes the lower case web and body narrower than standard dies to ensure reliable feeding and easy bolt closure in tight match chambers.
Interchangeable Bushing System: Accepts Redding neck sizing bushings (adjustable in 0.001-inch increments) to manage neck tension accurately while preventing work-hardening.
Self-Centering Neck Bushing: Utilises a free-floating bushing design to improve case alignment and minimise bullet runout.
Adjustable Decapping Assembly: Features an adjustable decapping rod assembly (#10242) and includes a decapping pin retainer to permit resizing without an expander button.
Body Die Versatility: Can be converted to function as a dedicated small-base body die by removing the bushing and internal decapping rod assembly.

Product Specifications

Calibre: 6mm PPC (accepts 0.243 in bullet diameter)
Die Thread Size: Standard 7/8"-14 reloading press threading
Packaged Weight: Approximately 200–300 g

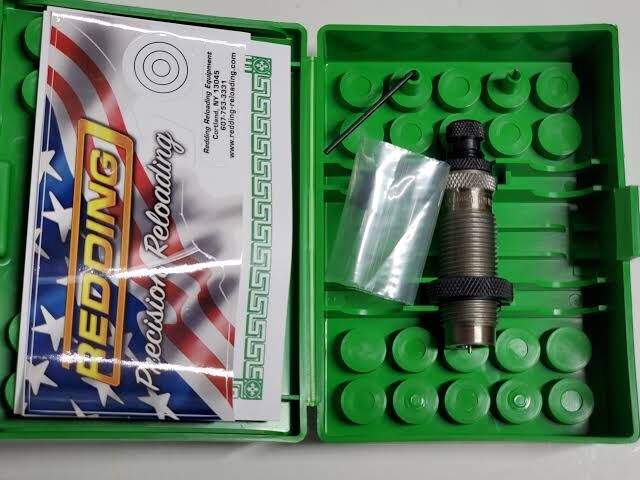

Included Components: Small base full-length die body, decapping rod assembly (#10242), standard size button/expander (#39242), decapping pin retainer, and standard lock ring (#01016)
Required Accessories (Sold Separately): Redding sizing bushings, reloading shellholder #12 (Part #11012) or Competition Shellholder #12 (Part #11612)

Who is the Redding 6mm PPC Small Base Type S Full Length Die for?

Australian benchrest competition shooters — Requires precise neck tension control and smooth chambering for the 6mm PPC cartridge (0.243 in bullet diameter) across standard 7/8"-14 threaded single-stage or turret presses.
Custom rifle builders — Employs a small-base full length reloading die profile to eliminate bolt-closing resistance and ensure reliable case extraction in tight-tolerance match chambers threaded for standard 7/8"-14 tooling.

Less suitable for: Standard factory or loose-spec chambers; small-base dies work the lower case wall more aggressively than required, making standard Type S full-length dies or standard neck-sizing dies better suited to preserve overall brass life.

SKU	RD41831LP
Model #	77211
Brand	Redding
Shipping Weight	1.0000kg
