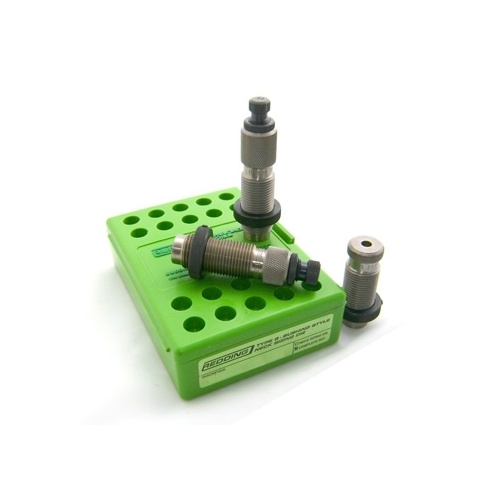

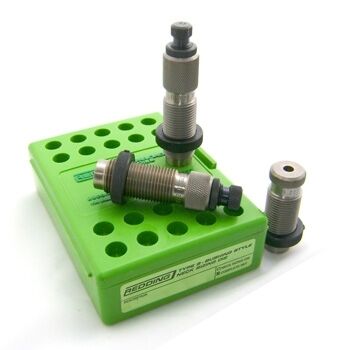

The Redding Type S Bushing Neck Sizing 3-Die Set for .243 Winchester (MPN: 78114) is a precision handloading tool designed for exact case sizing, neck tension management, and bullet seating. Built for standard SAAMI-spec .243 Winchester brass using 0.243" diameter projectiles, this set incorporates an interchangeable bushing system that sizes case necks without overworking the brass. The 3-piece kit includes a Type S Bushing Neck Sizing Die, an independent Body Die for bumping the case shoulder, and a Series 92000 Standard Bullet Seating Die with a built-in crimp. All dies feature standard 7/8"-14 threads to mount securely in common single-stage and turret reloading presses.

Key Features

• Interchangeable Bushing System: Utilises freely floating Redding neck sizing bushings (sold separately, available in 0.001" increments) to allow exact neck tension adjustments while maintaining concentricity.
• Dual Decapping Configuration: Includes a standard steel expander button for unturned commercial brass alongside a decapping pin retainer for sizing uniform neck-turned brass without an expander ball.
• Independent Body Die: Restores critical case dimensions and bumps shoulders back without disturbing the neck, extending brass life for fire-formed cases.
• Standard Seating Die: Features a Series 92000 bullet seating assembly with an integrated crimping shoulder for reliable bullet retention.
• Universal Press Interface: Standard 7/8"-14 threading ensures mechanical compatibility with standard workshop reloading presses.

Specifications

• Calibre Compatibility: .243 Winchester (0.243" bullet diameter)
• Manufacturer Part Number (MPN): 78114
• Die Threading: Standard 7/8"-14
• Required Shell Holder: Redding Shellholder #1 (Part #11001, sold separately)

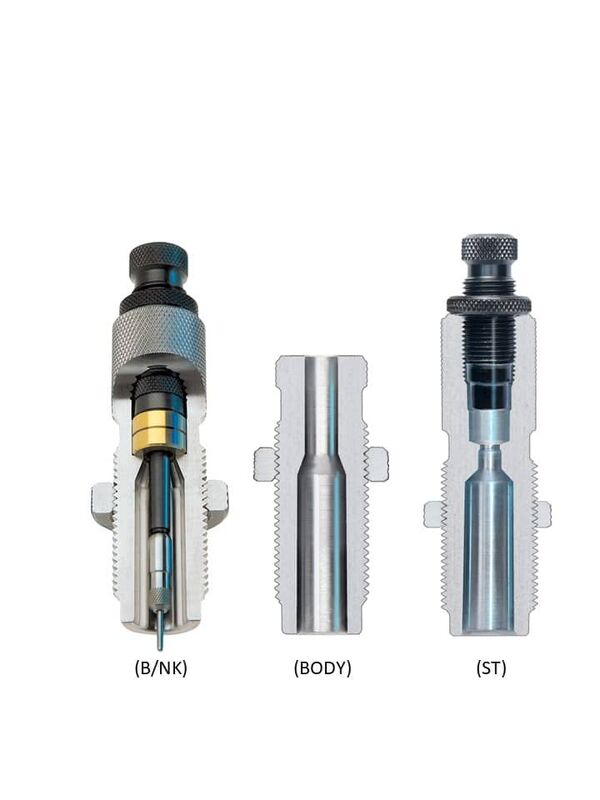

• Included Dies: Type S Bushing Neck Sizing Die, Body Die, Series 92000 Standard Bullet Seating Die
• Weight: Approximately 0.5–0.6 kg shipping weight
• Power Requirements: None (manual benchtop tool)

Who is the Redding Type S Bushing Neck Die Set for .243 Winchester for?

• Precision Bolt-Action Handloaders — Sizes fire-formed brass using freely floating neck bushings selectable in 0.001" increments to establish exact neck tension and minimise runout on .243 Winchester bolt-action rifles.
• Long-Range Target and PRS Competitors — Delivers concentric handloads via a 3-die set featuring a dedicated Body Die that bumps shoulders back without sizing the case neck, mounting directly into standard 7/8"-14 threaded presses.
• Varmint and Game Hunters — Produces consistent custom ammunition loaded with 0.243" diameter projectiles while preserving chamber-matched case life through selective neck sizing and shoulder maintenance.

Less suitable for: Semi-automatic, pump-action, or lever-action rifles, as well as .243 Winchester Improved 40° chambers; non-bolt actions require a full-length sizing die set to ensure reliable feeding and extraction.
