What press thread standard does the Redding 80114 use, and does it require any electrical compliance or SAA/RCM certification for use in Australia?

The Redding 80114 utilizes the industry-standard 7/8"-14 thread, making it fully compatible with single-stage and turret reloading presses commonly used in Australia. As it is a purely mechanical reloading tool requiring no electrical power, electrical compliances such as 240V compatibility and SAA/RCM certifications are not applicable.

Is the Redding 80114 Full Length Die Set suitable for semi-automatic rifles or tight-chamber firearms experiencing sticky extraction?

While the standard 80114 full-length die set ensures reliable chambering and cycling across most bolt-action and standard rifles, Redding explicitly recommends using a Small Base Full Length Die Set (MPN 48114) instead if you are loading for tight-chamber semi-automatic or pump-action platforms that experience sticky extraction.

What shellholder do I need to use with the Redding 80114 die set for .243 Winchester?

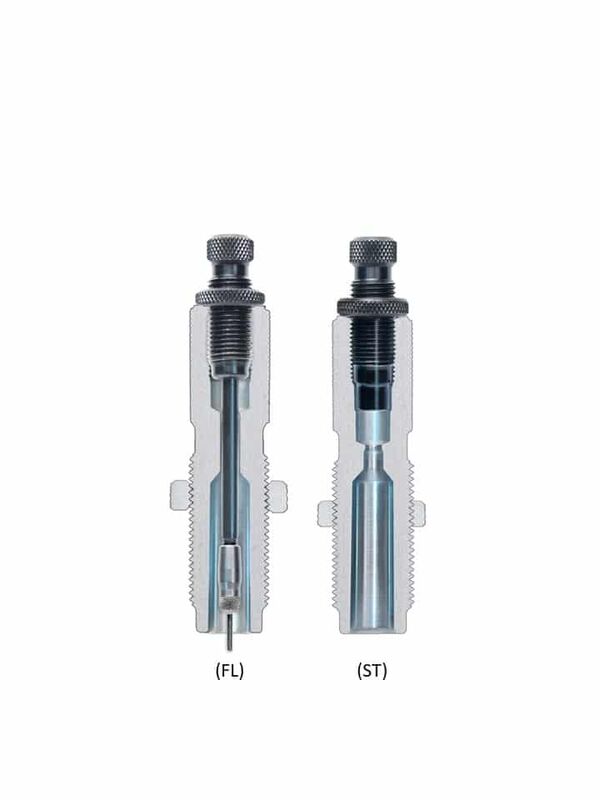

The Redding 80114 requires a standard Redding #1 Shellholder (Part #11001), which is sold separately. The die set itself includes a full-length sizing die with a decapping rod assembly, a standard bullet seating die with an integrated roll-crimp ring, a hex wrench, and a spare decapping pin.

243 Win Die Set - Redding 80114

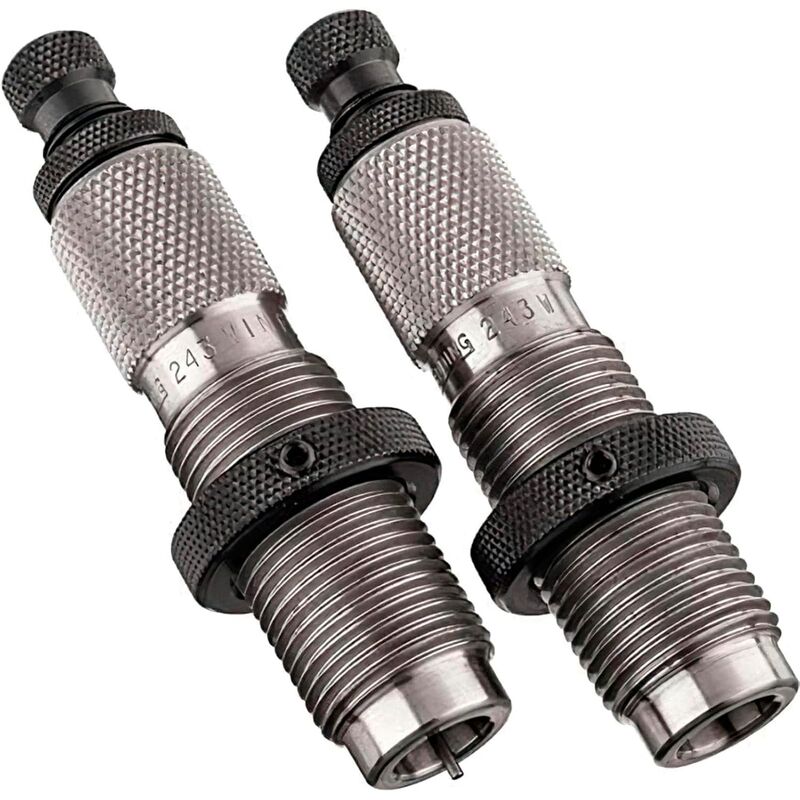

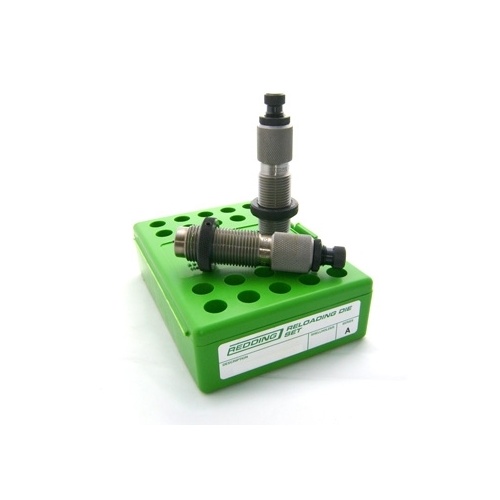

The Redding Series A Full Length Die Set for .243 Winchester Bottleneck Cases (MPN: 80114) is a non-powered, mechanical reloading tool set precision-machined from heat-treated alloy steel. Engineered for standard 7/8"-14 threaded reloading presses, this two-die set fully resizes fired cartridge cases back to SAAMI factory dimensions, decaps spent primers, expands neck diameters, and seats bullets for hunting and target shooting applications.

Key Features

Full-Length Case Sizing: Sizing die (Part #91114) resizes the case neck and body while setting the shoulder back to SAAMI specifications for reliable feeding across bolt-action, semi-automatic, and lever-action firearms.
Integrated Decapping and Expanding: Features a decapping rod assembly (#33242) with decapping pin (#01060) and steel expander button (#39242) to deprime and size the inner neck in a single press stroke.
Bullet Seating with Roll Crimp: Seating die (Part #92114) includes standard seat plug (#01067) and a built-in crimp ring that adjusts for uniform seating depth with or without a roll crimp.
Precision Construction: Heat-treated alloy steel dies are precision-machined and hand-polished for smooth cycling with standard case lubrication.
Standard Press Mounting: Features industry-standard 7/8"-14 threads compatible with standard single-stage and turret reloading presses.

Specifications

Manufacturer Part Number (MPN): 80114
Calibre: .243 Winchester (0.243 in / 6.17 mm bullet diameter)
Die Thread: 7/8"-14 thread standard
Die Set Type: Full-length 2-die set (Series A)
Material: Heat-treated, hand-polished alloy steel
Shellholder Compatibility: Standard Redding #1 Shellholder (Part #11001, sold separately)

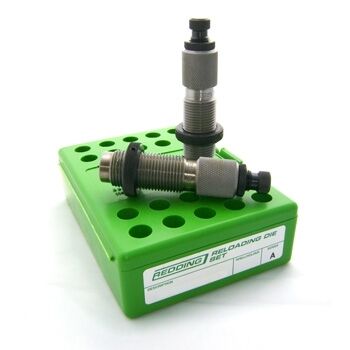

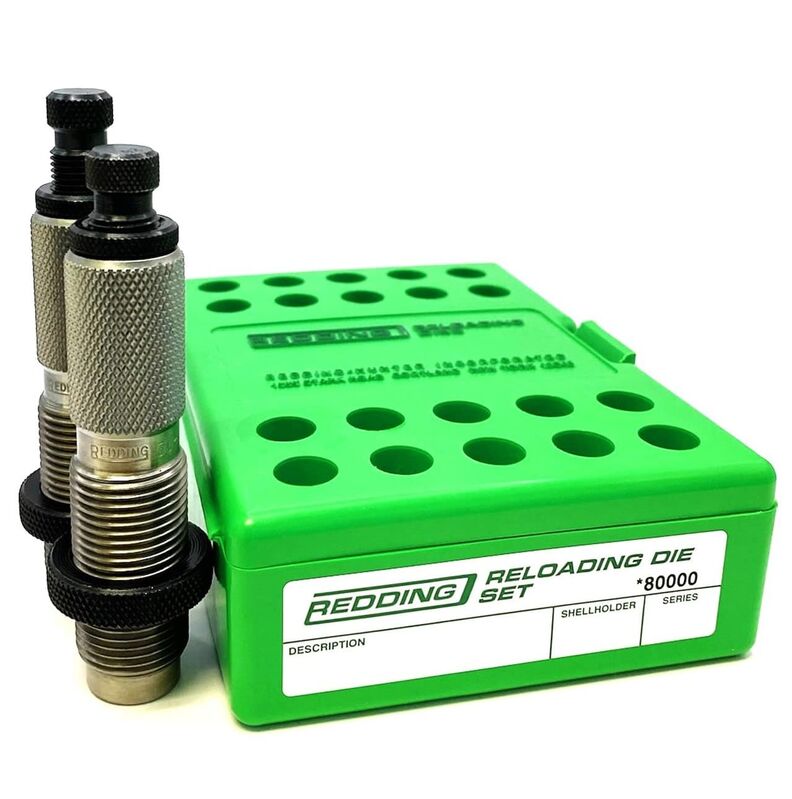

Included Accessories: Storage box/loading block, spare decapping pin, and hex wrench

Who is the Redding Series A Full Length Die Set for .243 Winchester for?

Reloaders working with mixed-rifle or once-fired brass — provides complete body resizing and shoulder bump back to factory SAAMI dimensions for .243 Winchester cases (0.243 in / 6.17 mm bullet diameter) across bolt-action and semi-automatic platforms using this full-length reloading die set.
Handloaders outfitting standard reloading presses — mounts directly to any standard single-stage or turret reloading press featuring the industry-standard 7/8"-14 thread specification for uniform .243 Winchester cartridge assembly.

Less suitable for: Firearm platforms experiencing extraction issues in tight-chamber semi-automatic or pump actions (which require a small-base full-length die set), bolt-action target shooters seeking maximum brass life by sizing only the fire-formed neck (which require a neck-sizing die set), or precision reloaders needing direct 0.001-inch seating depth adjustments (which require a micrometer-adjustable competition seating die set).

SKU	RD102265LP
Model #	80114
Brand	Redding
Shipping Weight	0.2000kg
