Can I use the Redding 81114 neck sizing die for brass fired in multiple different bolt-action rifles?

No, this die is designed exclusively for brass that has been fire-formed to a single, specific rifle chamber. Because it only sizes the neck and leaves the case body untouched, neck-sized brass will generally not chamber reliably if mixed across different firearms.

What shellholder do I need to use with the Redding 81114 .243 Winchester neck sizing die?

This die utilizes the industry-standard 7/8"-14 TPI thread interface to fit standard reloading presses and requires a Redding #1 Shellholder (such as part #11001 or the competition #11601) to securely hold .243 Winchester cases during the stroke.

What should I do if my bolt becomes stiff to close after reloading with this die several times?

After 3 to 5 reload cycles, repetitive firing can cause the case shoulder to grow, resulting in stiff bolt closure. When this happens, you will need to complement your setup with a full-length sizing die or a dedicated Redding body die to bump the shoulder back.

Do I need any special electrical certification or power supply to operate this reloading die in Australia?

No, electrical compliance such as SAA or RCM certification is completely inapplicable here because this is a purely manual, non-powered workshop tool requiring no mains electricity.

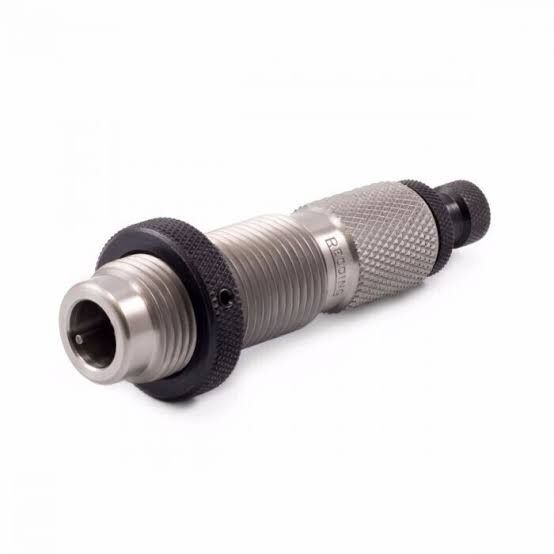

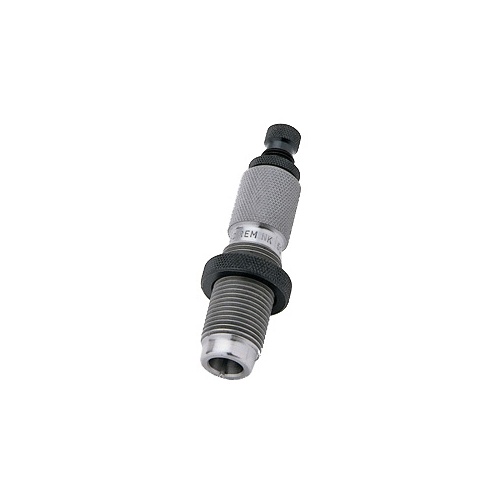

Neck Sizing Die - Redding 81114

The Redding 81114 Neck Sizing Die for .243 Winchester Bottleneck Cases resizes the case neck to provide proper bullet retention while preserving the fire-formed dimensions of the case body and shoulder. Machined from heat-treated alloy steel on precision CNC lathes and hand-polished, this die minimizes brass working to extend case life and maintain alignment with an individual bolt-action rifle chamber. An internal decapping rod assembly automatically expels spent primers and expands the neck during the sizing stroke on standard reloading presses.

Targeted Neck Sizing: Restricts resizing strictly to the neck of fired .243 Winchester brass, preventing excessive metal fatigue and maintaining fire-formed chamber fit.
Integrated Decapping and Expanding: Features a hardened steel decapping rod assembly (#33242) and expander button (#39242) to deprime and set internal neck tension in a single operation.
Precision Machined Construction: Manufactured from heat-treated alloy steel with hand-polished internal surfaces to resist wear and maintain concentricity.
Standard Press Interface: Built with industry-standard 7/8"-14 threads and a dedicated 7/8"-14 lock ring (#01016) for universal compatibility with standard bench reloading presses.

Specifications

Calibre Compatibility: .243 Winchester (6mm / 0.243 in bullet diameter)
Thread Interface: 7/8"-14 TPI
Shellholder Required: Redding #1 Shellholder (Part #11001 or #11601)
Internal Assembly Parts: Decapping rod assembly (#33242), expander button (#39242), decapping pin (#01060)
Material: Heat-treated alloy steel
Operation: Manual reloading die

Who is the Redding Neck Sizing Die for .243 Winchester for?

Bolt-action rifle handloaders — Sizes exclusively the neck of fired .243 Winchester (0.243 in bullet diameter) brass to preserve the exact fire-formed shoulder and body dimensions of a single dedicated rifle chamber using standard 7/8"-14 TPI press setups.
Precision target shooters and hunters — Reduces brass cold-working and prolongs case service life across repeated firings by eliminating body sizing on .243 Winchester cases that match the Redding #1 Shellholder interface.

Less suitable for: Handloaders loading for semi-automatic, lever-action, or pump-action rifles, brass used across multiple different firearms, or cases experiencing stiff bolt closure after 3 to 5 reload cycles due to shoulder growth; these conditions require a full-length sizing die or dedicated body die to bump the shoulder and resize the case body for reliable feeding.

SKU	RD102268LP
Model #	81114
Brand	Redding
Shipping Weight	0.2000kg
