Is the Redding 81125 die suitable for use with semi-automatic or lever-action .257 Roberts rifles?

No, this neck sizing die is strictly designed for bolt-action or single-shot rifles where brass is fired-formed and reused exclusively in the same chamber. Semi-automatic, pump-action, or lever-action rifles require full-length resizing dies, such as the Redding Full Length Die 91125, to ensure reliable feeding and chambering under field conditions.

What shellholder do I need to use with the Redding 81125 die on my reloading press?

The die features a standard 7/8"-14 thread that fits all popular single-stage and turret reloading presses available in Australia, such as RCBS, Hornady, and Redding models. It requires a standard Redding Shellholder #1 (Part #11001) or a Competition Shellholder #1 (Part #11601) to correctly seat .257 Roberts cases.

How many reload cycles can I perform before needing to switch from neck sizing to full-length resizing?

While neck sizing significantly prolongs brass life by working only the neck area, case bodies and shoulders will eventually expand after roughly 3 to 5 reload cycles depending on your load pressures. When chambering begins to feel stiff or tight, you will need to switch to a full-length sizing die or a dedicated Redding Body Die to bump the shoulder and resize the body.

Does the Redding 81125 require any electrical compliance certification for use in Australia?

No electrical compliance or SAA/RCM certification is required because the Redding 81125 is a fully mechanical, non-powered workshop reloading tool containing no electrical components. It is safe for manual operation in any Australian home workshop or outback reloading bench.

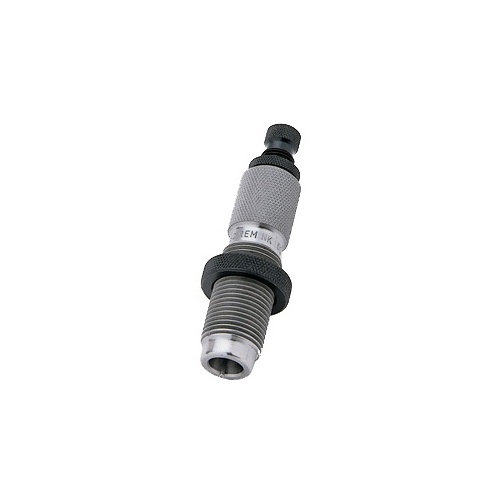

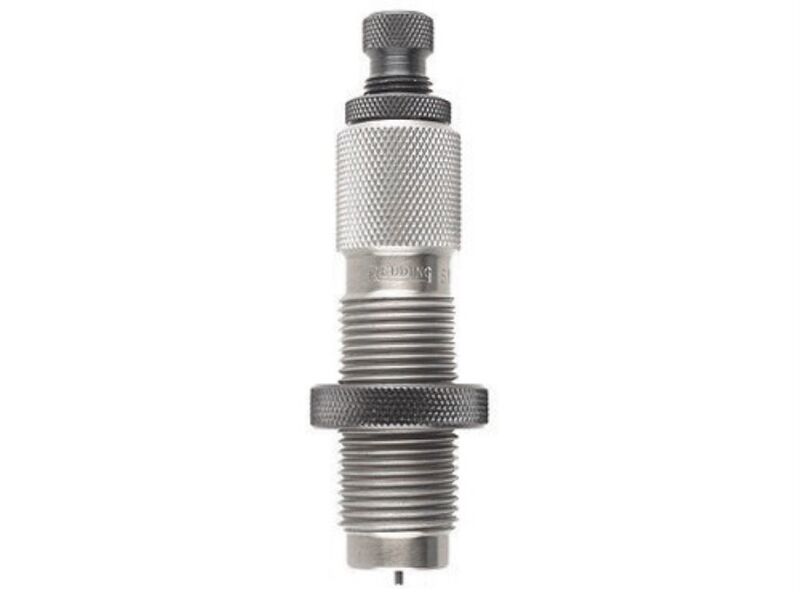

Neck Sizing Die - Redding 81125

The Redding Precision Neck Sizing Die for .257 Roberts Cartridges (Model 81125) is a workshop reloading tool manufactured from heat-treated alloy steel with hand-polished internal surfaces. Designed for single-stage and turret presses utilising industry-standard 7/8"-14 threads, this die resizes only the neck portion of fire-formed bottleneck cases while leaving the body and shoulder dimensions unchanged. This process preserves the precise fire-formed fit of the cartridge case to a specific rifle chamber, reduces brass fatigue, and extends case life for precision shooting applications.

Neck-Only Resizing: Resizes the neck brass to hold a 0.257" diameter bullet without altering the fire-formed body or shoulder dimensions.
Integrated Decapping and Expanding: Contains a complete decapping assembly (Part #34256) with a replaceable decapping pin (Part #01060) and expander size button (Part #39256) to remove spent primers and set internal neck tension in a single stroke.
Standard Press Integration: Features standard 7/8"-14 die threads and includes a Redding 7/8"-14 lock ring (Part #01016) for secure mounting.
Shellholder Compatibility: Engineered for use with Redding Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601).
Durable Construction: Built from precision-machined, heat-treated alloy steel with an approximate weight of 200 g to 300 g.

Specifications

Calibre: .257 Roberts (0.257" bullet diameter)
Die Type: Neck Sizing Die
Thread Standard: 7/8"-14 TPI
Material: Heat-treated alloy steel
Decapping Assembly: Part #34256
Decapping Pin: Part #01060
Expander Size Button: Part #39256
Lock Ring: 7/8"-14 Lock Ring (Part #01016)
Compatible Shellholder: Redding Shellholder #1 (#11001) or Competition Shellholder #1 (#11601)

Who is the Redding Precision Neck Sizing Die for .257 Roberts for?

Precision handloaders shooting .257 Roberts bolt-action rifles — sizes only the neck of fire-formed .257 Roberts brass on standard 7/8"-14 threaded presses to preserve concentric chamber alignment and eliminate excessive working of the case wall.
Reloaders reloading brass exclusively for a single firearm — maintains custom chamber dimensions for 0.257" diameter projectiles across repeated firings without full-length resizing, maximising brass longevity when paired with a Redding #1 shellholder.

Less suitable for: Semi-automatic, pump-action, or lever-action rifles, cartridges expanded after 3 to 5 reload cycles, or the .257 Roberts Improved 40° chambering; these applications require a full-length sizing die or dedicated body die to restore factory body and shoulder clearances for reliable chambering.

SKU	RD102455LP
Model #	81125
Brand	Redding
Shipping Weight	0.2000kg
