Will this Redding neck sizing die fit my standard reloading press used in Australia?

Yes, the Redding 81234 features the industry-standard 7/8"-14 thread pitch, making it fully compatible with all major single-stage and turret reloading presses available on the Australian market. Being an entirely mechanical handloading tool, electrical certifications or 240V power requirements do not apply.

What extra accessories do I need to purchase separately to start reloading .270 Weatherby Magnum with this die?

To use this die, you will need a standard shellholder, specifically a Redding #6 or an RCBS #4, which are sold separately. Additionally, because expensive Weatherby magnum brass can be scarce in Australia, neck sizing helps extend brass life, but you must still use case neck lubricant to prevent friction against the internal expander ball.

How often will I need to switch from this neck sizing die to a full-length sizing die?

Because the Redding neck sizing die only formats the case neck and decaps spent primers without altering the body or shoulder, cases will gradually grow over multiple firings. Typically, after 3 to 5 reload cycles, you will notice the bolt closure becoming tight or sticky, at which point you must temporarily switch to a full-length sizing die to bump the shoulder back.

Is this neck sizing die suitable for the .270 Weatherby Magnum brass I shoot in my semi-automatic rifle?

No, this die is built strictly for bottleneck cases fired in bolt-action rifles and is not recommended for semi-automatic, pump-action, or lever-action rifles. These actions lack the heavy camming leverage of bolt-actions and require full-length resizing to guarantee reliable chambering and extraction.

270 Weatherby Magnum Die - Redding 81234

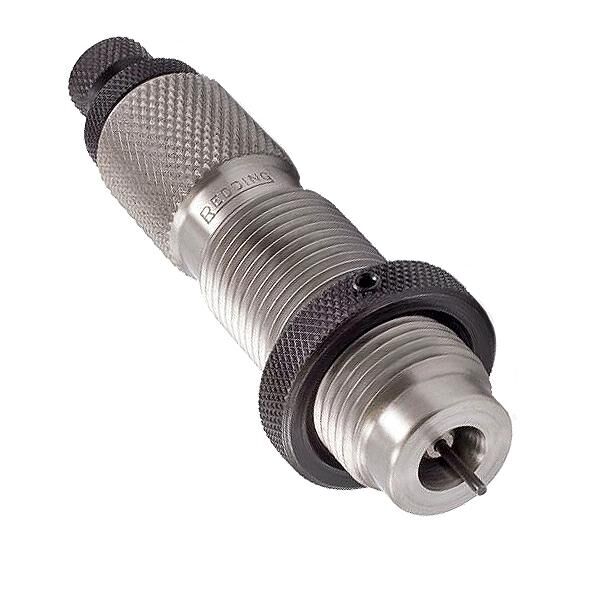

The Redding 270 Wby Weatherby Magnum Neck Sizing Die (MPN: 81234) is a Series B reloading die engineered to resize only the case neck and decap spent primers without altering the case body dimensions or pushing back the shoulder. Machined from heat-treated, case-hardened alloy steel, this die preserves the fire-formed chamber fit of .270 Weatherby Magnum brass (.277" diameter bullet) to maximise reload life and maintain cartridge-to-chamber concentricity.

Key Features

Neck-Only Resizing: Resizes only the neck portion of the case while maintaining fire-formed body dimensions and shoulder placement.
Integrated Decapping Assembly: Includes an internal decapping rod assembly with an expander ball and lock ring for simultaneous depriming and neck expansion.
Precision Hardened Steel: Lathe-turned from case-hardened alloy steel to minimise concentricity runout during sizing operations.
Standard Press Compatibility: Features an industry-standard 7/8"-14 thread to fit standard single-stage and progressive reloading presses.
Component Upgradability: Compatible with optional Redding carbide or tapered expander button upgrades to reduce internal neck friction.

Specifications

Manufacturer Part Number (MPN): 81234
Die Series: Redding Series B
Calibre Compatibility: .270 Weatherby Magnum (.277" bullet diameter)
Press Thread: Standard 7/8"-14 thread
Material: Heat-treated, case-hardened alloy steel
Required Shellholder (Sold Separately): Redding #6 or RCBS #4
Shipping Weight: Approximately 0.35–0.45 kg

Who is the Redding 270 Wby Weatherby Magnum Neck Sizing Die for?

Bolt-action rifle handloaders — Sizes exclusively the case neck for .270 Weatherby Magnum cartridges utilizing a standard 7/8"-14 thread press interface, maintaining fire-formed chamber alignment for precision shooting without overworking the brass.
Hunters managing expensive magnum brass — Extends case longevity across repeated firings by eliminating body working on .277" diameter bullet cases, requiring only a compatible Redding #6 or RCBS #4 shellholder to operate.

Less suitable for: Semi-automatic, pump-action, or lever-action firearms, as well as cases that have exceeded 3 to 5 reload cycles where shoulder expansion causes stiff bolt closure; these scenarios require a full-length sizing die or dedicated shoulder bump die to restore factory chamber clearances.

SKU	RD41910LP
Model #	81234
Brand	Redding
Shipping Weight	1.0000kg
