Can I use the Redding 81264R Neck Sizing Die if I shoot my .338 Federal ammunition across multiple different rifles?

No, neck sizing dies are strictly recommended only for brass fired in and returned to the exact same bolt-action rifle. If you use your ammunition across multiple rifles, semi-automatics, or lever-actions, you will need a Full-Length Sizing Die to ensure reliable chambering and smooth feeding.

What shellholder do I need to mount this Redding 338 Federal die onto my reloading press?

The Redding 81264R die features an industry-standard 7/8"-14 thread and requires a standard Redding Shellholder #1 (Part #11001) or a Competition Shellholder #1 (Part #11601), which are sold separately. It is fully mechanical and requires no electrical power or Australian mains certification.

How many reload cycles can I expect out of my brass when using this neck sizing die for outback hunting loads?

By resizing only the cartridge neck of fire-formed brass rather than working the entire case body and shoulder, you significantly reduce brass fatigue and eliminate excessive case stretching. While chambering can become stiff after 3 to 5 firings requiring a shoulder bump, neck sizing dramatically extends overall brass longevity for precision bolt-action setups.

338 Federal Die - Redding 81264R

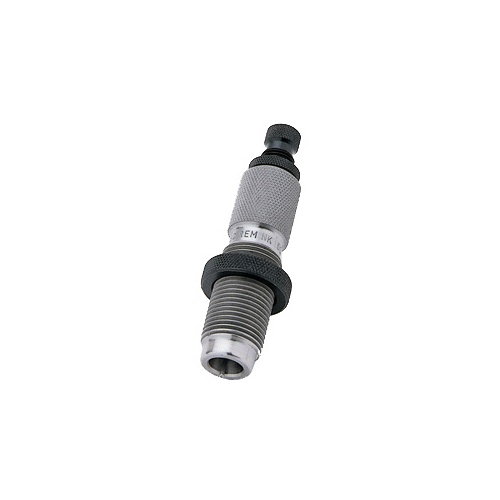

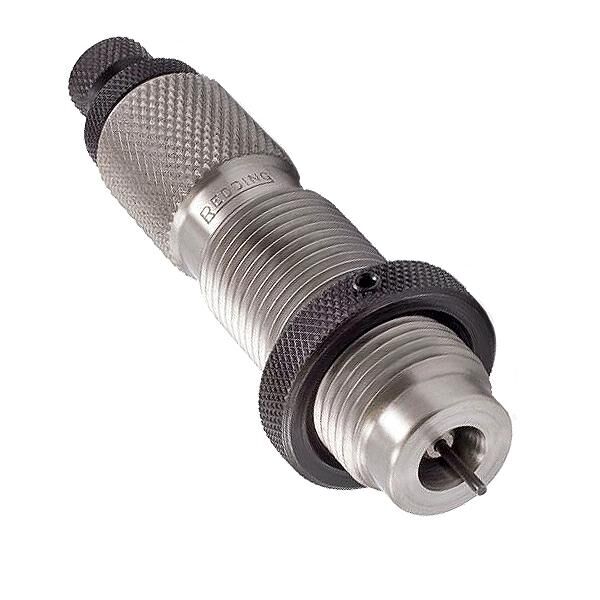

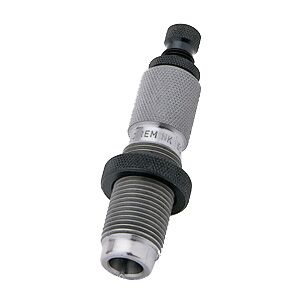

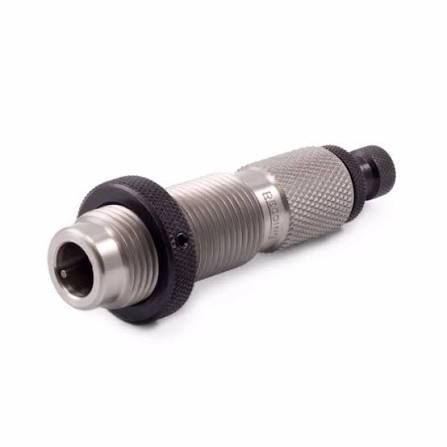

The Redding .338 Federal Neck Sizing Die (MPN: 81264 / 81264R) is a dedicated reloading tool designed to resize only the case neck of fire-formed .338 Federal brass. By leaving the case body and shoulder at the exact dimensions established by the rifle's chamber, this die preserves fire-formed fit, prevents excessive brass working, and maintains bullet-to-bore alignment. Machined from hardened alloy steel, the die features an industry-standard 7/8"-14 thread for compatibility with standard reloading presses and is configured for projectiles measuring 0.338 inches in diameter.

Key Features

Neck-Only Resizing: Resizes only the neck portion of the cartridge case while depriming spent primers, leaving the body and shoulder fire-formed to the rifle chamber.
Enhanced Brass Longevity: Prevents overworking the case body and shoulder, reducing brass fatigue and stretching across repeated firing cycles.
Precision Alignment: Improves concentricity and accuracy by maintaining the custom chamber fit of fired brass in single-rifle setups.
Internal Assembly: Includes a hardened steel die body, standard steel lock ring (Part #01016), decapping rod assembly (Part #23837), decapping pin (Part #01060), and a 0.338-inch neck expander/size button (Part #16336).

Specifications

Product Type: Neck Sizing Die
Manufacturer Part Number (MPN): 81264 / 81264R
Calibre Compatibility: .338 Federal
Bullet Diameter: 0.338 inches
Press Thread Pitch: 7/8"-14 thread
Shellholder Requirement: Redding Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601), sold separately
Operating Mode: Manual/mechanical bench-mounted press operation

Who is the Redding 338 Federal Neck Sizing Die for?

Precision handloaders reloading for bolt-action rifles — requires maintaining exact chamber fire-forming while establishing proper neck tension for 0.338-inch diameter bullets mounted via standard 7/8"-14 thread presses.
Hunters seeking extended brass life in single-firearm setups — avoids working the case body on fire-formed brass between firings, prolonging cartridge life and maintaining chamber alignment for 0.338-inch diameter projectiles without resizing the case shoulder.

Less suitable for: Reloading ammunition intended for semi-automatic, lever-action, or pump-action firearms, or sharing cartridges across multiple rifles; these actions require a full-length sizing die to ensure reliable feeding and chambering.

SKU	RD41912LP
Model #	81264R
Brand	Redding
Shipping Weight	1.0000kg
