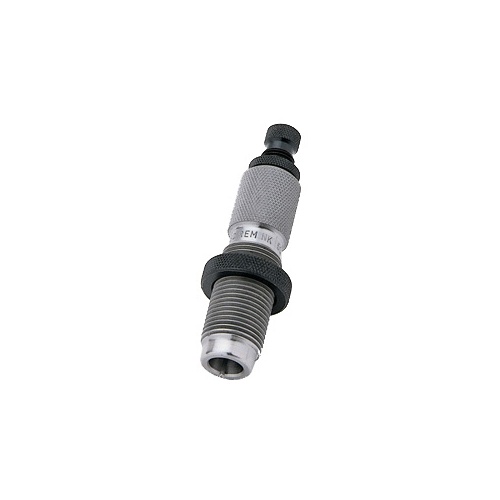

The Redding 81420 Neck Sizing Die is engineered specifically for handloaders working with .243 Winchester Ackley Improved cartridges featuring a 40° shoulder angle. Designed for mechanical reloading presses using standard 7/8"-14 threading, this die resizes solely the case neck while leaving the fire-formed cartridge body and 40° shoulder unaltered. By eliminating unnecessary working of the cartridge brass, it prolongs case life, prevents premature case head separation, and preserves the fire-formed fit of the cartridge to a specific rifle chamber for enhanced concentricity and benchrest-grade accuracy.

Key Features

• Neck-Only Sizing: Resizes only the neck portion of the case, preserving the custom fire-formed dimensions of the body and 40° shoulder.
• Integrated Decapping and Expanding: Features a hardened steel decapping rod assembly (#RE33242) and expanding size button (#RE42242) to deprime spent primers and establish correct internal neck tension in a single stroke.
• Standard Press Interface: Machined with industry-standard 7/8"-14 threads to fit all standard mechanical reloading presses.
• Extended Brass Life: Minimises work-hardening of the cartridge body, reducing case stretching and the risk of case head separation across repeated firings.

Specifications

• Calibre Compatibility: .243 Winchester Ackley Improved (40° shoulder angle)
• Thread Size: 7/8"-14 standard reloading press threading
• Components Included: Die body, decapping rod assembly (#RE33242), expanding size button (#RE42242)
• Required Shellholder: Standard .308 Winchester family case head shellholder (Redding Shellholder #1 / #RE11001, sold separately)
• Packaged Weight: Approximately 0.3 kg to 0.4 kg

Who is the Redding Ackley Improved Neck Sizing Die for .243 Winchester for?

• Precision handloaders shooting custom bolt-action rifles — requires maintaining exact concentricity and fire-formed brass dimensions by sizing exclusively the neck while preserving the sharp 40° shoulder angle in a 7/8"-14 threaded reloading press.
• Varmint hunters reloading for a single dedicated chamber — maximises brass lifespan across repeat firings by eliminating unnecessary body sizing on fire-formed .243 Ackley Improved cases with a 40° shoulder.

Less suitable for: Standard factory .243 Winchester cartridges with a standard 20° shoulder angle, or fire-formed cases exhibiting heavy bolt-lift resistance after 3 to 6 firings, which require a full-length sizing die or a dedicated body bump die to restore chambering clearance.
