Can I use the Redding 81907 neck sizing die on standard SAAMI .223 Remington factory ammunition?

No, this die is exclusively engineered for the .223 Remington Ackley Improved 40-degree shoulder angle variant and will not size standard SAAMI .223 cases back to factory dimensions. It is designed solely to work with brass that has already been fire-formed in an Ackley Improved chamber.

What press threading and shellholders are required to set up the Redding 223 Rem AI neck sizing die?

The die features an industry-standard 7/8"-14 thread pitch, making it fully compatible with standard single-stage and turret reloading presses available in Australia. You will also need a Redding Shellholder #10, which is sold separately, to properly secure your brass during the reloading stroke.

How often will I need to use a full-length sizing or body die when neck-sizing .223 Rem AI brass with this tool?

Because this die only sizes the neck and leaves the body and 40-degree shoulder unaltered, repeated firings will eventually cause the case body to grow. Depending on your load pressures, you will typically need to switch to a full-length sizing or dedicated body die every 3 to 5 firings to bump the shoulder and restore easy chamber clearance.

Are there any electrical compliance requirements or Australian certifications needed for this reloading die?

As a purely mechanical, manually operated workshop reloading tool, the Redding 81907 does not require mains electrical power, 240V compatibility, or SAA/RCM electrical safety certifications. It is ready for immediate setup in your Australian reloading bench or rural workshop.

223 AI Neck Die - Redding 81907

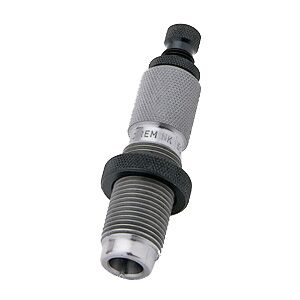

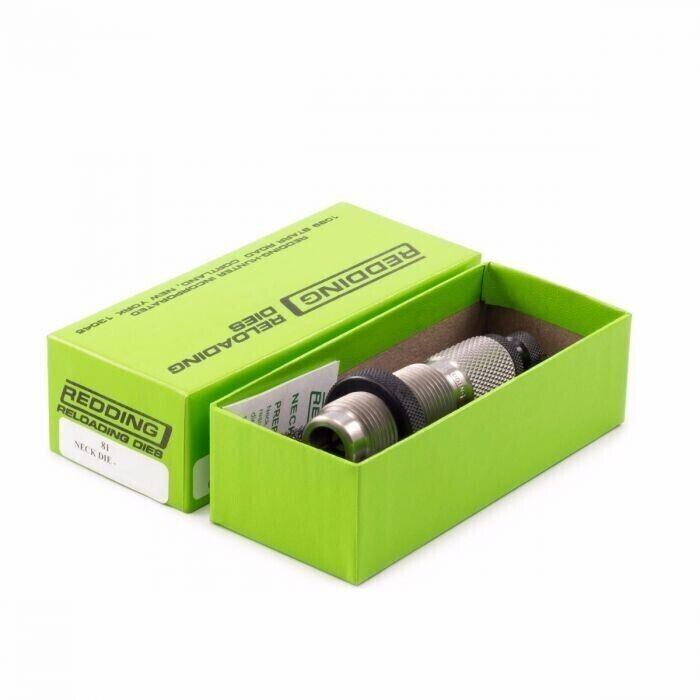

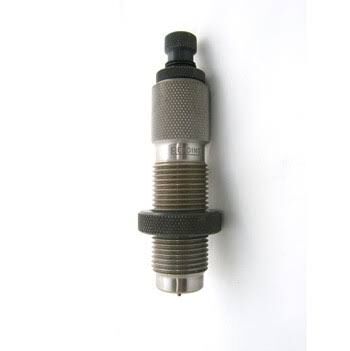

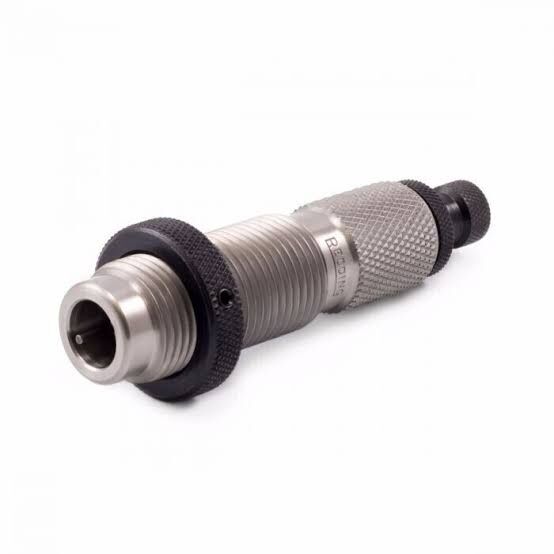

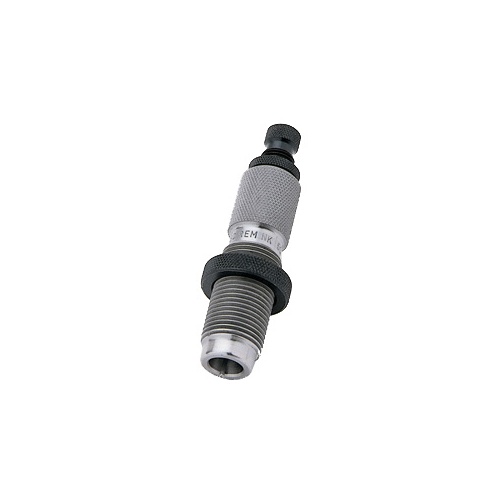

The Redding 223 Rem Ackley Improved 40° Neck Sizing Die (MPN: 81907) is a precision reloading tool engineered to resize only the neck area of fire-formed cartridge cases while leaving the fire-formed body and 40° shoulder unaltered. Machined from heat-treated alloy steel, this non-powered workshop accessory eliminates excessive working of the cartridge brass, preserving the exact chamber fit of your firearm, reducing bullet runout, and extending brass reload life. It features industry-standard 7/8"-14 threading for broad compatibility with standard single-stage and turret reloading presses and includes a complete decapping rod assembly with an expander button to decap and set uniform internal neck tension in a single operation.

Key Features

Targeted Neck Resizing: Resizes only the neck of fire-formed brass without altering the case body or 40° shoulder angle.
Decapping & Expander Assembly: Integrated decapping rod and expander button deprime spent primers and standardise internal neck tension in one pass.
Extended Case Longevity: Prevents over-working of the brass case body to extend usable reloading cycles and maintain tailored fire-formed chamber fit.
Alloy Steel Construction: Heat-treated alloy steel body with precision-machined internal surfaces for consistent dimensional control.
Standard Thread Mounting: Standard 7/8"-14 threads fit standard single-stage and turret reloading presses.

Product Specifications

Brand: Redding Reloading Equipment
Manufacturer Part Number (MPN): 81907
Calibre Compatibility: .223 Remington Ackley Improved (40° shoulder angle)
Interface / Thread Standard: 7/8"-14 threading
Shellholder Compatibility: Redding Shellholder #10 (sold separately)
Material: Heat-treated alloy steel
Power Requirements: Non-powered manual reloading tool
Packaged Dimensions & Weight: Approximately 1.5" H × 2.25" W exterior footprint; packaged weight approx. 200–350 g

Who is the Redding 223 Rem Ackley Improved 40° Neck Sizing Die for?

Precision Bolt-Action Handloaders — who require maximum accuracy from bolt-action target rifles chambered in .223 Remington Ackley Improved with a 40° shoulder angle, mounting this neck sizing die directly into standard 7/8"-14 threaded presses to eliminate body work and minimise bullet runout.
Rural Pest Controllers — who need to maximise brass reload cycles when maintaining high-volume repeat firings for a single rifle chambered in .223 Rem AI with a 40° shoulder, using Redding Shellholder #10 on standard 7/8"-14 single-stage presses.

Less suitable for: Handloaders resizing cases for semi-automatic, pump-action, or lever-action rifles, brass to be shared across multiple different firearms, standard SAAMI .223 Remington cases, or cartridges after 3 to 5 firings when body expansion causes stiff bolt closure; these applications require a full-length sizing die or dedicated body die to bump the shoulder and restore outer body clearance.

SKU	RD41924LP
Model #	81907
Brand	Redding
Shipping Weight	1.0000kg
