Will the Redding 83132 form trim die fit my standard reloading press in Australia?

Yes, the Redding 83132 features industry-standard 7/8"-14 reloading press threading and is fully compatible with all standard single-stage and turret presses commonly used in Australia, such as the RCBS Rock Chucker, Redding Big Boss, and Hornady units. As a purely mechanical bench tool requiring no electrical power, it has no complex setup requirements or Australian RCM/SAA certification needs.

Can I use this 6.5x55 Swedish trim die for other 6.5mm calibres like 6.5 Creedmoor?

No, the Redding 83132 is strictly calibrated and machined specifically for the 6.5x55mm Swedish (6.5x55 SE) cartridge dimensions, including its unique case taper and shoulder angles. It cannot be used for other 6.5mm calibres such as 6.5 Creedmoor, 6.5x47 Lapua, or 6.5 PRC.

How do I physically trim the brass cases using this Redding die?

To use the Redding 83132, screw the die into your press until it lightly touches the shellholder, insert a lubed 6.5x55mm case, and raise the ram into the chamber-dimensioned die body. You then use a fine-toothed flat mill bastard file across the hardened, precision-ground top surface of the die to file-trim the protruding case mouth flush to the exact required length.

Is this die suitable for high-volume brass processing sessions?

The Redding 83132 is designed for precision, low-to-medium volume handloading and custom case forming rather than high-volume commercial production. If you need to process hundreds to thousands of cases per session, a motorized lathe trimmer or electric trim die is recommended over this manual file trim method.

Form Trim Die - Redding 83132

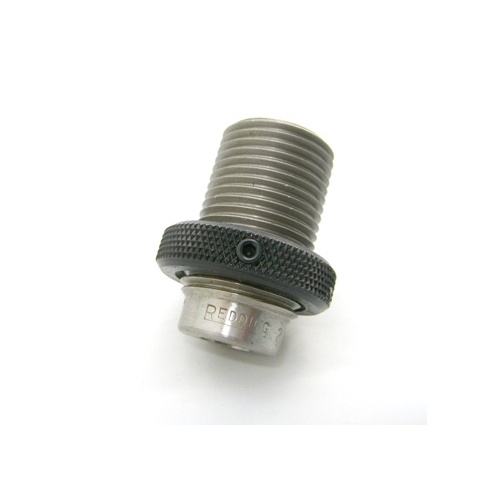

The Redding Form & Trim Die – 6.5x55mm Swedish Mauser (MPN: 83132) is a dedicated reloading tool designed for manual case forming and file-trimming operations. Machined to standard chamber dimensions rather than sizing dimensions, this die allows reloaders to trim 6.5x55mm Swedish case mouths to exact lengths without forcing full-length sizing or overworking the brass. Constructed from heat-treated, precision-ground hardened alloy steel, the top surface withstands contact with flat mill bastard files during manual trimming. It features industry-standard 7/8"-14 threading for mounting directly into standard Australian-market single-stage or turret reloading presses.

Key Features:

Chamber-Dimension Profiling: Holds brass cases to chamber dimensions to facilitate accurate neck trimming to SAAMI/CIP lengths without full-length resizing.
Case Forming & Conversion: Serves as an intermediate step to form, reform, or neck down brass into the 6.5x55mm Swedish cartridge profile before final sizing.
Hardened Top Surface: Precision-ground, heat-treated alloy steel top enables flush manual file trimming of protruding case necks.
Universal Press Interface: Utilises standard 7/8"-14 reloading press threading, ensuring compatibility with standard single-stage and turret presses.
Purely Mechanical Operation: Requires no electrical power, operating entirely via manual press action and hand filing.

Specifications:

Manufacturer Part Number (MPN): 83132
Calibre Compatibility: 6.5x55mm Swedish (6.5x55mm Mauser / 6.5x55mm SE; 0.264" bullet diameter)
Thread Interface: 7/8"-14 standard reloading die threads
Material: Heat-treated, precision-ground hardened alloy steel
Shellholder Compatibility: Redding Shellholder #7 (#11007) or Competition Shellholder #11607 (sold separately)
Lock Ring Compatibility: Standard 7/8"-14 lock rings (Redding #01016 or stainless #11071)
Shipping Weight: Approximately 120 g to 210 g (0.26 lb to 0.46 lb)

Who is the Redding 6.5x55 Swedish Form Trim Die for?

Handloaders reloading for the 6.5x55mm Swedish cartridge — requires a dedicated 6.5x55 Swedish form trim die with 7/8"-14 press threading to manually file-trim case necks to exact SAAMI/CIP lengths without repeatedly overworking case bodies through standard sizing dies.
Reloaders converting or forming custom brass for vintage Mauser rifles — relies on the 7/8"-14 threaded hardened steel die body to support intermediate case reforming and necking-down processes into the 6.5x55mm Swedish case profile.

Less suitable for: High-volume processing sessions requiring hundreds to thousands of cases per run, or calibres other than 6.5x55mm Swedish; motorized rotary power case trimmers or calibre-specific electric trim dies are better suited for bulk processing.

SKU	RD102794LP
Model #	83132
Brand	Redding
Shipping Weight	0.1000kg
