Will the Redding 35 Remington Form & Trim Die (Model 83165) fit standard reloading presses used in Australia?

Yes, this die features the industry-standard 7/8"-14 threading and is fully compatible with standard single-stage and turret presses commonly found on Australian reloading benches, such as the RCBS Rock Chucker or Redding Boss presses. It also requires a standard Redding #1 shellholder to operate correctly.

How does this form and trim die operate without full-length resizing the brass?

The Redding 83165 is precision-cut specifically to chamber dimensions rather than full-length sizing die dimensions. This allows you to raise the case into the hardened steel die and file-trim excess neck length flush with the top using a standard flat file, all without subjecting the case body to unnecessary cold-working.

Does this unpowered reloading tool require any Australian electrical certifications or adapters?

No electrical compliance or SAA/RCM certifications are required. The Redding 83165 is a completely manual, non-powered mechanical tool that requires no electrical cords, 240V mains power, or Australian plugs for use on your bench.

Is this model suitable for high-volume commercial brass processing?

The Redding 83165 is designed for manual file-trimming and is best suited for low-to-moderate volume case preparation or intermediate case forming from parent brass. If you require high-volume brass throughput, a rotary lathe-style or motorized trimmer should be used instead.

Trim Die - Redding 83165 35 Remington

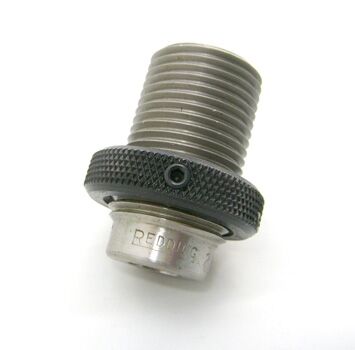

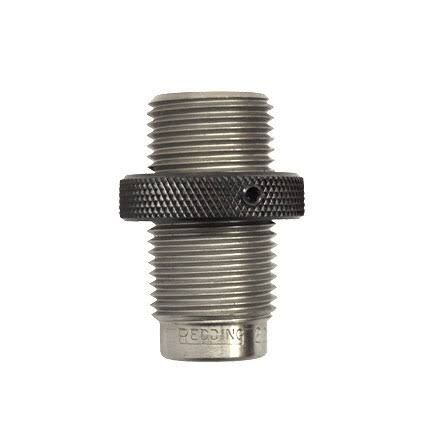

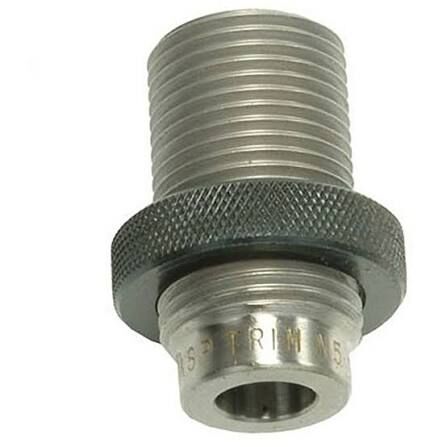

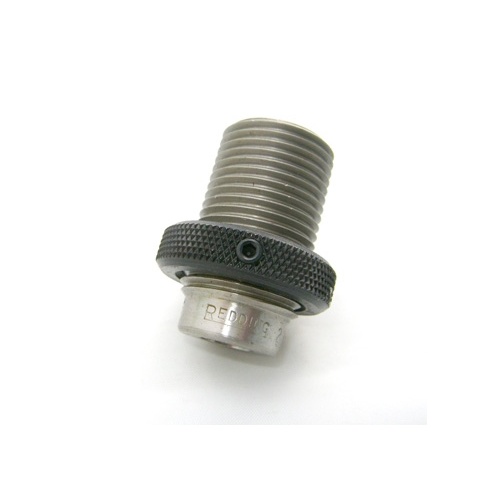

The Redding 35 Remington Form & Trim Die (MPN: 83165) is a specialised reloading tool engineered to form and manually file-trim .35 Remington brass cases. Cut to internal chamber dimensions rather than standard full-length sizing dimensions, this hardened steel die allows handloaders to trim case necks flush with the die top using a flat file without subjecting the cartridge body to unnecessary sizing or work-hardening. It also serves as an intermediate forming step when necking down parent brass to the .35 Remington profile prior to final sizing.

Chamber-Dimension Cut: Machined to chamber tolerances to allow file-trimming without working or over-sizing the case body.
Hardened Steel Construction: Heat-treated steel surface resists metal file contact during manual neck trimming operations.
Intermediate Case Forming: Facilitates forming parent brass into the .35 Remington cartridge before final sizing passes.
Standard Press Mounting: Uses industry-standard 7/8"-14 threading to integrate directly with standard single-stage and turret reloading presses.
Mechanical Operation: Fully manual, non-powered tool requiring no electrical connections or external power sources.

Specifications

Brand: Redding Reloading Equipment
Model Number (MPN): 83165
Calibre: .35 Remington (.358" bullet diameter)
Thread Standard: 7/8"-14 TPI
Shellholder Compatibility: Redding #1 shellholder (or compatible standard equivalent)
Material: Heat-treated, hardened tool steel
Operation: Manual press-mounted mechanical tool

Who is the Redding 35 Remington Form & Trim Die for?

Handloaders reloading for the .35 Remington cartridge — forms and file-trims .358" bullet diameter case brass to exact chamber lengths on standard 7/8"-14 threaded reloading presses using a #1 shellholder without full-length body sizing.
Reloaders performing intermediate case forming from parent brass — provides the step-down forming profile required when converting parent case stock into .35 Remington cartridge dimensions on standard 7/8"-14 tooling.

Less suitable for: High-volume brass processing workflows; handloaders requiring rapid, high-throughput case length preparation are better served by rotary lathe-style case trimmers or motorized power trimming systems.

SKU	RD41928LP
Model #	83165
Brand	Redding
Shipping Weight	1.0000kg
