What reloading press thread standard and shellholders does the Redding 83415 require?

The Redding 83415 form and trim die is manufactured with an industry-standard 7/8"-14 TPI press thread, making it fully compatible with all standard single-stage and turret reloading presses available in Australia. For case retention, it requires a Redding Standard Shellholder #1 or an equivalent standard .308/.284 rim-diameter shellholder, which is sold separately.

Is the Redding 83415 suitable for high-volume commercial brass processing?

No, this die is designed for manual, single-case operation on a metallic reloading press where you physically run a fine file across the top hardened tool steel surface. For high-volume production trimming of hundreds of rounds per hour, a dedicated powered rotary trimmer is recommended over this hand file-trim die.

Does this Redding die require any electrical compliance certifications or power sources in Australia?

No, the Redding 83415 is an entirely mechanical benchtop reloading tool made from heat-treated tool steel and requires no electrical power. Therefore, 240V mains power compatibility, Australian plug types, and SAA/RCM regulatory electrical certifications are not applicable to this product.

Trim Die 83415 - Redding 6.5/284 Winchester

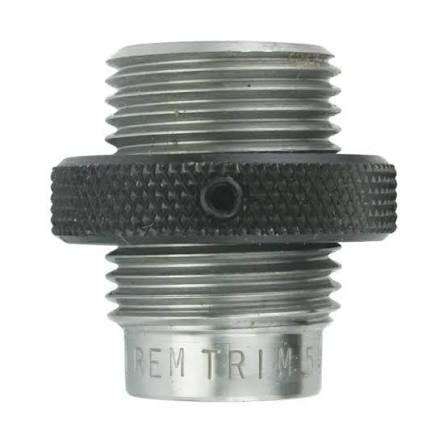

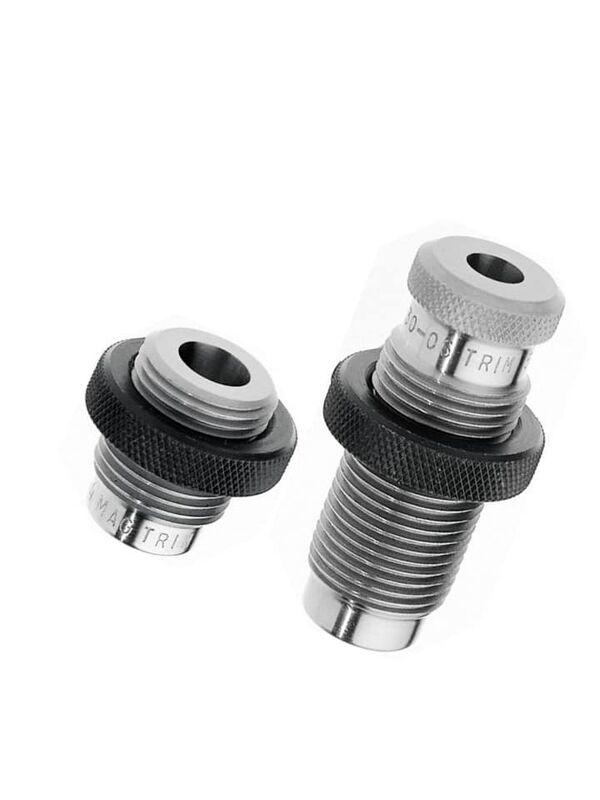

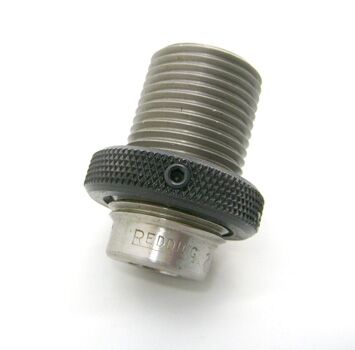

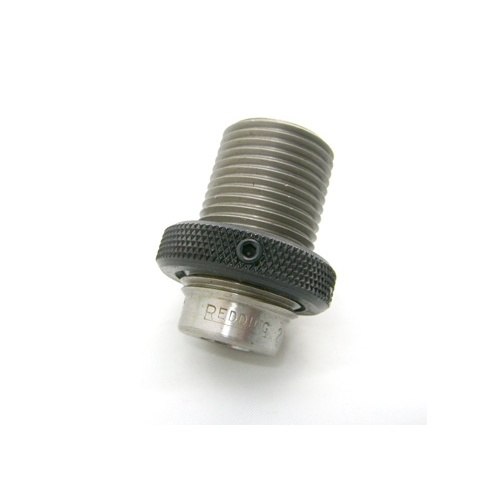

The Redding 6.5/284 Winchester (Norma) Form & Trim Die is a precision reloading tool engineered for reforming and manually trimming brass cartridge cases. Machined from heat-treated, hardened tool steel, this die allows reloaders to file off excess case length flush with the top of the die without damaging the tooling. It sizes the exterior case profile and secures brass rigidly for intermediate forming—such as necking down .284 Winchester parent brass to 6.5mm—or establishing exact case length prior to final full-length sizing.

Key Features

Hardened Tool Steel Construction: Heat-treated steel allows a fine file to be drawn directly across the top surface to trim extended brass necks without abrading the die.
Intermediate Case Forming: Supports step-down forming and initial sizing for 6.5-284 Winchester cases without internal expanding components, preventing neck distortion.
Universal Press Fit: Built with standard 7/8"-14 TPI threading to mount into standard single-stage and turret reloading presses.
Mechanical Operation: Fully non-powered benchtop tool requiring zero electrical input, operating reliably with standard case lubricants.

Product Specifications

Manufacturer Part Number (MPN): 83415
Cartridge Compatibility: 6.5-284 Winchester / 6.5-284 Norma (0.264" bullet diameter specifications)
Press Thread Interface: 7/8"-14 TPI
Shellholder Compatibility: Redding Standard Shellholder #1 (or equivalent standard .308/.284 rim diameter shellholders)
Die Profile: Standard 7/8" cylindrical body
Estimated Packaged Weight: Approximately 200–300 g

Who is the Redding 6.5/284 Winchester Form & Trim Die for?

Australian long-range target shooters — Need consistent brass case lengths when handloading 6.5mm/284 Winchester ammunition using standard 7/8"-14 TPI reloading presses.
F-Class competitors — Require exact case headspace and intermediate case forming control for 6.5mm/284 Norma cases using a hardened form and trim die.
Precision hunters — Handload custom 6.5mm/284 Winchester cartridges and require file-trim capability on standard 7/8"-14 TPI press setups to maintain strict chamber tolerances.

Less suitable for: High-volume production reloading where reloaders need to trim hundreds of rounds per hour; a dedicated powered rotary case trimmer or motorized case preparation centre is better suited to that output volume.

SKU	RD41931LP
Model #	83415
Brand	Redding
Shipping Weight	1.0000kg
