What press threading and shellholder do I need to set up the Redding 83531 die?

The Redding 83531 .260 Remington case trimming die is designed to fit any standard reloading press featuring 7/8"-14 threads. You will also need a standard Redding Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601), which is sold separately.

How does the Redding 83531 trim cases without requiring a full-length resize?

Unlike other trimming dies that force a full-length sizing step, the Redding 83531 is meticulously machined directly to standard .260 Remington chamber dimensions. This allows you to securely lock the brass in place and file it flush against the hardened top surface without overworking the case body, thereby extending brass life.

Can I use the Redding 83531 trim die for high-volume brass processing of thousands of rounds?

The Redding 83531 is a manual file-trim tool best suited for small-to-moderate precision reloading batches ranging from 20 to 100 cases. For high-volume brass processing exceeding hundreds to thousands of rounds, an automated powered rotary trimmer or power-driven case prep center is recommended instead.

Does the Redding 83531 require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required for the Redding 83531. Because it is an entirely mechanical, non-powered hand tool operated with a manual file on your reloading bench, there are no 240V power or Australian mains plug considerations to worry about in your workshop.

Can this die assist in forming brass from parent cases down to .260 Remington?

Yes, the Redding 83531 serves as an excellent intermediate case-forming aid when reforming parent cases such as .243 Winchester or .308 Winchester down to .260 Remington specifications. It helps establish the correct trim length before you complete your final full-length sizing step.

260 Remington Trim Die - Redding 83531

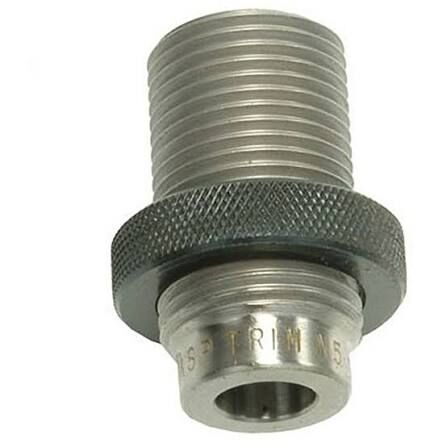

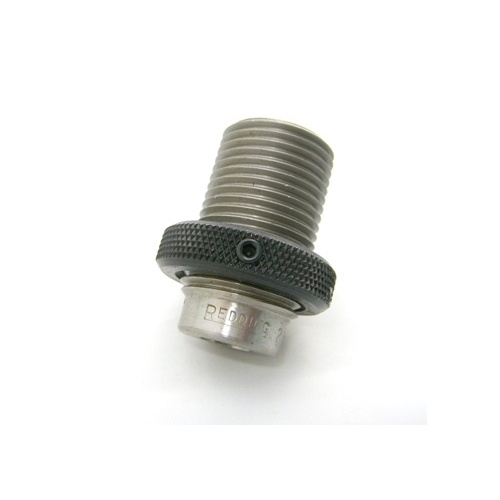

The Redding 83531 .260 Remington Case Trimming Die is a dedicated bench tool engineered for squaring and trimming brass cases to uniform overall length. Built from heat-treated, hardened alloy steel, the die features a hardened top surface that resists wear from standard flat metal files. Unlike full-length sizing trim dies, the internal cavity is cut to standard chamber dimensions to maintain case geometry without overworking or unnecessarily sizing the brass. It also serves as an intermediate forming step when reforming parent cartridge cases, such as .243 Winchester or .308 Winchester, into .260 Remington specifications.

Key Features

Hardened File-Trim Surface: Features a heat-treated, hardened top face designed to withstand direct contact with standard metal files for precise, flush trimming.
Chamber-Dimension Interior: Cut to standard chamber dimensions, allowing brass to be squared and trimmed without forcing a full-length sizing operation.
Standard Press Integration: Mounts directly into standard reloading presses using industry-standard 7/8"-14 threading.
Case Forming Utility: Assists in holding and profiling brass when forming .260 Remington cases from parent brass stock.
Mechanical Operation: Operates entirely manually with no electrical power, motors, or electronic components required.

Specifications

Manufacturer Part Number (MPN): 83531
Calibre: .260 Remington (0.264" projectile diameter)
Thread Size: Standard 7/8"-14 TPI
Shellholder Compatibility: Redding Shellholder #1 (Part #11001) or Competition Shellholder #1 (Part #11601)
Material: Heat-treated, hardened alloy steel
Approximate Weight: 0.2 kg to 0.3 kg
Operation: Manual file-trim

Who is the Redding .260 Remington Case Trimming Die for?

Precision Hunting and Target Reloaders — Delivers uniform, square case mouths for the .260 Remington cartridge using standard 7/8"-14 threaded reloading presses, ensuring consistent brass dimensions for small-to-moderate batches of 20 to 100 cases.

Less suitable for: High-volume brass processing exceeding hundreds to thousands of rounds where manual file trimming causes bottlenecks; automated powered rotary case trimmers or power-driven case prep centres are better suited for bulk processing.

SKU	RD102541LP
Model #	83531
Brand	Redding
Shipping Weight	0.2000kg
