What dies are included in the Redding 84132 Deluxe Set for 6.5x55mm Swedish Mauser?

The Redding 84132 Deluxe Die Set is a three-die combination that includes a Full-Length Sizing Die, a Neck Sizing Die, and a standard Bullet Seating Die. It also comes with a storage box that doubles as a loading block, a hex wrench, and a spare decapping pin.

Will these 7/8"-14 threaded dies fit standard reloading presses used in Australia?

Yes, all three dies feature the industry-standard 7/8"-14 thread interface. They are fully compatible with all standard single-stage and turret reloading presses available on the Australian market, including models from Redding, RCBS, Hornady, Lyman, and Lee.

Do I need any additional parts, such as a shellholder, to start reloading with the Redding 84132 set?

Yes, the die set requires a Redding Shellholder #7 (Part #11007), which is sold separately. Ensure you also have proper case lube and a suitable single-stage or turret press ready for setup.

Can I use the neck sizing die in this set for semi-automatic or lever-action 6.5x55mm rifles?

No, the Neck Sizing Die in the 84132 set is strictly recommended for bolt-action rifles where the brass was previously fired in that specific chamber. If you are reloading for semi-automatic actions or need to share brass across multiple rifles, you must use the Full-Length Sizing Die to ensure reliable chambering and cycling.

Are there any electrical compliance requirements or Australian safety certifications needed for this product?

No electrical compliance or SAA/RCM certifications are required because this is a purely mechanical, non-powered reloading tool. It has no electrical components or plugs, making it completely straightforward for outback benchtop use in Australia.

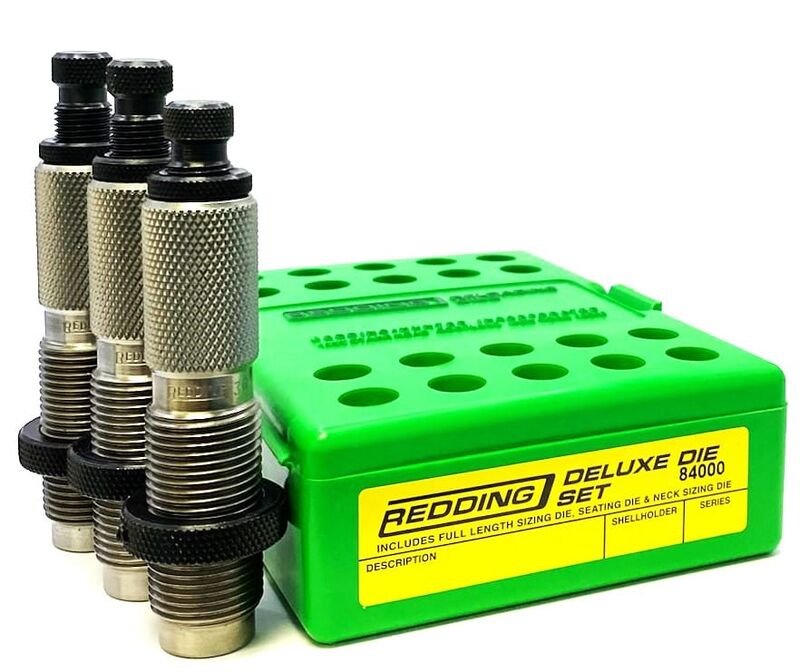

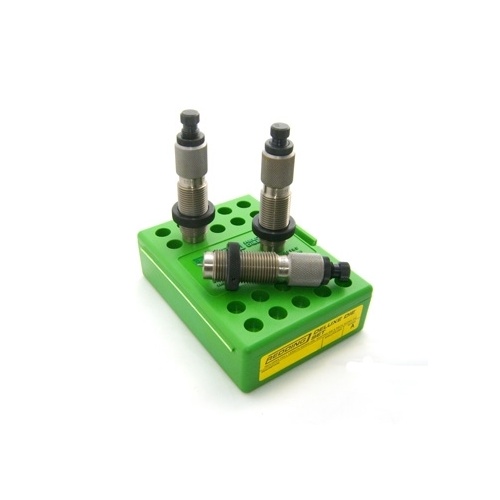

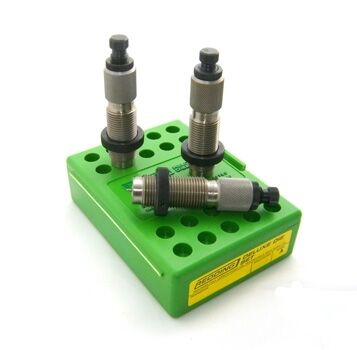

6.5x55 Die Set - Redding 84132

The Redding 84132 6.5x55 Mauser (6.5x55mm Swedish) Deluxe 3-Die Set is a heat-treated alloy steel reloading system designed for standard .264" bullet diameter bottleneck cases. Built with industry-standard 7/8"-14 threaded die bodies, this mechanical reloading tool fits standard single-stage and turret reloading presses. The three-die configuration delivers complete brass processing versatility by pairing a full-length sizing die and a standard bullet seating die with a dedicated neck sizing die, allowing handloaders to tailor case preparation to specific action types and chamber tolerances.

Key Features

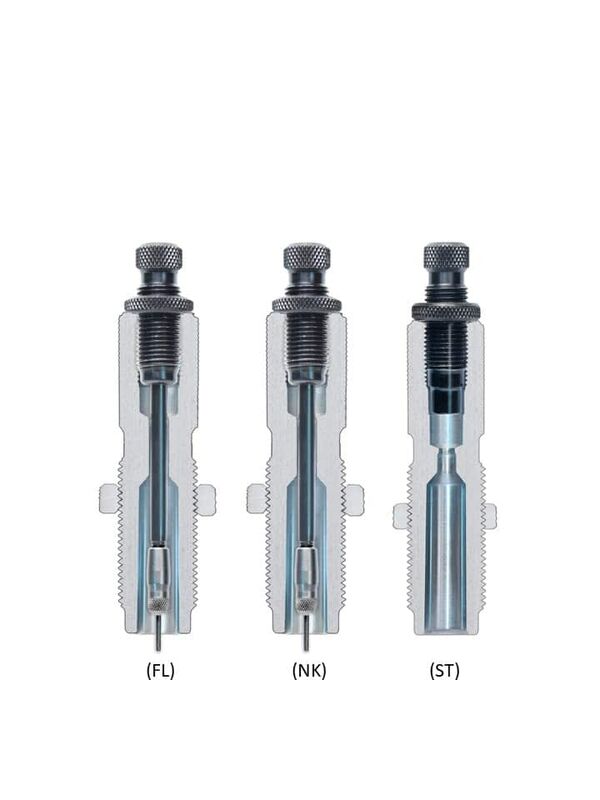

Three-Die Configuration: Includes a Full-Length Sizing Die (Part #91132), a Neck Sizing Die (Part #81132), and a Standard Bullet Seating Die (Part #92132).
Extended Brass Life: The neck sizing die sizes only the neck of fire-formed brass, preserving exact chamber fit and reducing case work hardening for bolt-action platforms.
Full-Length Resizing: The full-length sizing die restores fired brass to standard SAAMI/CIP factory exterior dimensions for reliable feeding across semi-automatic actions or multiple rifle chambers.
Precision Machined Construction: Machined from alloy steel on high-precision lathes and hand-polished for smooth brass cycling and consistent operation.

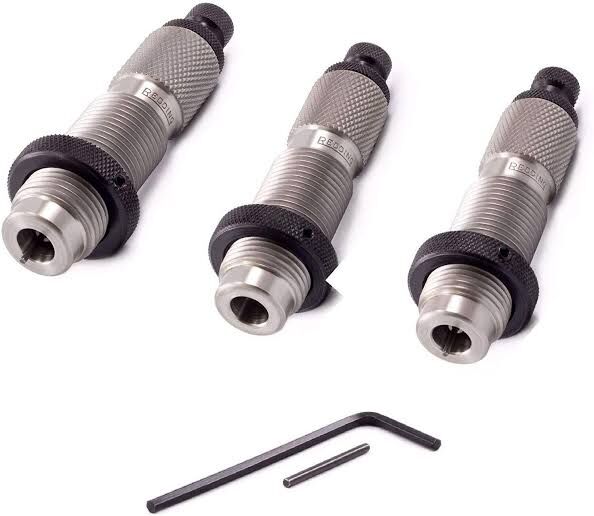

Complete Setup Accessories: Supplied with a decapping rod assembly, standard size button, spare decapping pin, hex wrench, and a dedicated storage box that doubles as a cartridge loading block.

Specifications

Manufacturer Part Number (MPN): 84132
Calibre Compatibility: 6.5x55mm Swedish / 6.5x55 Mauser (.264" bullet diameter)
Thread Interface: Standard 7/8"-14 threads
Required Shellholder: Redding Shellholder #7 (Part #11007, sold separately)
Material: Heat-treated, hand-polished alloy steel
Operating Mechanism: Non-powered mechanical handloading die set
Package Weight: Approximately 0.6–0.7 kg

Who is the Redding 84132 6.5x55 Mauser Deluxe 3-Die Set for?

Bolt-Action Handloaders — Preserves fire-formed dimensions and extends case service life in 6.5x55mm Swedish bolt-action chambers using the dedicated neck sizing die on standard 7/8"-14 threaded presses.
Hunters and Target Shooters — Provides full-length resizing to SAAMI/CIP minimum specifications alongside precise bullet seating for 6.5x55mm bottleneck cases requiring reliable chambering across multiple rifles.

Less suitable for: Fire-formed cases from modified chambers such as the 6.5x55 Ackley Improved, which require dedicated improved-calibre dies, or semi-automatic actions using neck-sized brass, which require dedicated full-length resizing dies to ensure smooth feeding.

SKU	RD102778LP
Model #	84132
Brand	Redding
Shipping Weight	0.2000kg
