What dies are included in the Redding 84317 Deluxe Die Set?

The Redding 6mm BR Remington Deluxe 3-Die Set includes a Full-Length Sizing Die with a decapping assembly and expander button, a dedicated Neck Sizing Die (NK) for fire-formed brass, and a Standard Bullet Seating Die (ST). This combination gives precision reloaders the flexibility to switch between neck-sizing for maximum accuracy in bolt-action rifles and full-length sizing for reliable chambering.

Can I use neck sizing with semi-automatic rifles using this die set?

No, neck sizing is strictly limited to brass fired from the same bolt-action chamber and is not suitable for semi-automatic firearms. For autoloaders or brass fired from multiple rifles, you must use the full-length sizing die included in the set to ensure smooth and reliable chambering.

What press thread and shellholder compatibility does this die set require?

The Redding 84317 die set features an industry-standard 7/8"-14 thread, making it compatible with most standard single-stage and turret reloading presses. It requires a standard #1 shellholder, or optionally the #11601 competition shellholder, which is sold separately.

Does this mechanical reloading set require any Australian electrical compliance such as SAA or RCM certification?

No, electrical compliance certifications like SAA or RCM are not applicable to this product. The Redding Deluxe Die Set is a 100% mechanical reloading tool that requires no mains power, batteries, or electrical connections for use in your outback or benchrest reloading shed.

What maintenance is required to protect these steel dies during long-term storage in humid Australian conditions?

Because these dies are machined from heat-treated alloy steel, they require proper care to prevent corrosion. You should apply a protective rust-inhibiting oil during storage and use a quality case lube like Redding Imperial Wax during sizing to protect both the die interior and your 6mm BR brass from sticking or scratching.

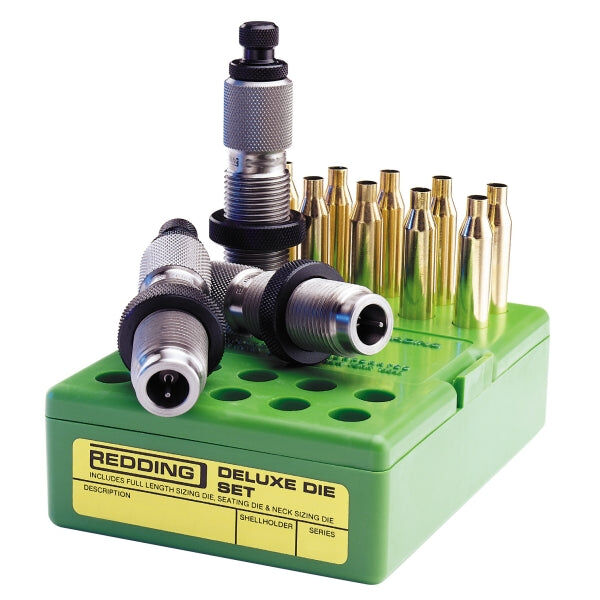

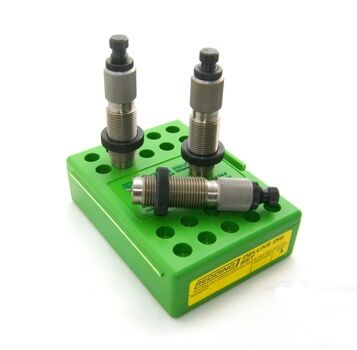

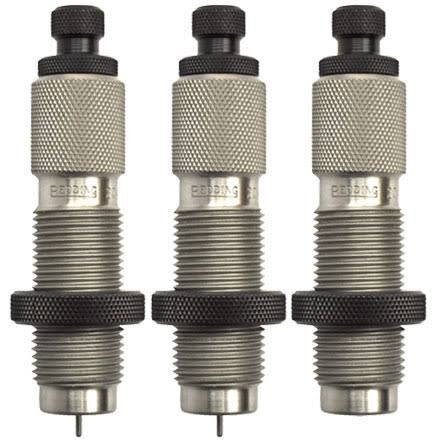

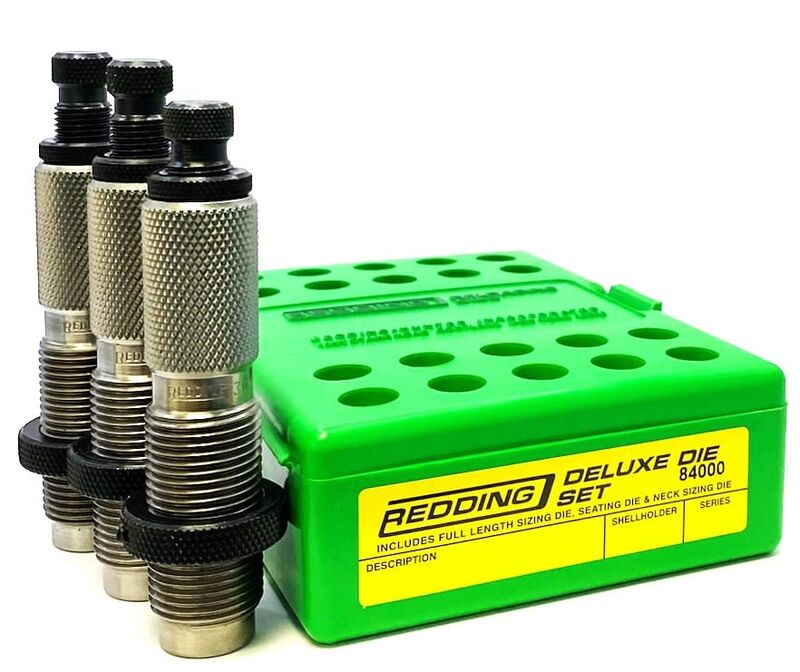

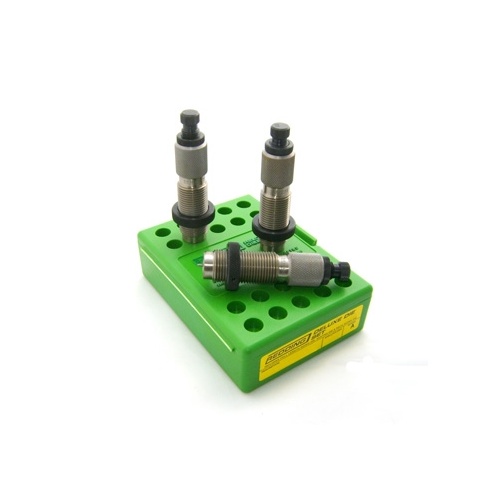

6mm BR Reloading Dies - Redding 84317

The Redding 6mm BR Remington Deluxe Die Set (MPN: 84317) is a precision three-die reloading kit designed for reloading and resizing 6mm BR Remington (.243" bullet diameter) cartridges. Machined from high-grade alloy steel on precision lathes, heat-treated in atmospherically controlled furnaces, and hand-polished, each die is built to maintain tight concentricity and adhere strictly to SAAMI chamber tolerances. The set fits standard 7/8"-14 thread reloading presses and requires a standard #1 shellholder or #11601 competition shellholder for operation. With a boxed weight of approximately 0.6–0.7 kg (~1.4 lbs), it delivers high mechanical durability for precision handloaders without requiring electrical power.

Key Features

Dual Sizing Capability: Includes both a Full-Length Sizing Die (with decapping assembly and expander button) and a dedicated Neck Sizing Die (NK), giving reloaders the flexibility to neck-size fire-formed cases or full-length resize brass for dependable cycling.
Precision Seating Assembly: Features a standard Bullet Seating Die (ST) engineered to seat .243" projectiles with tight axial alignment.
Universal Press Interface: Built with industry-standard 7/8"-14 threading to ensure compatibility across standard mechanical reloading presses.
Premium Steel Construction: Lathe-turned alloy steel hardened via atmospheric heat treatment and finished with internal hand polishing to resist wear and minimise brass resistance during sizing.

Product Specifications

Calibre: 6mm BR Remington (6mm Bench Rest Rem / .243" bullet diameter)

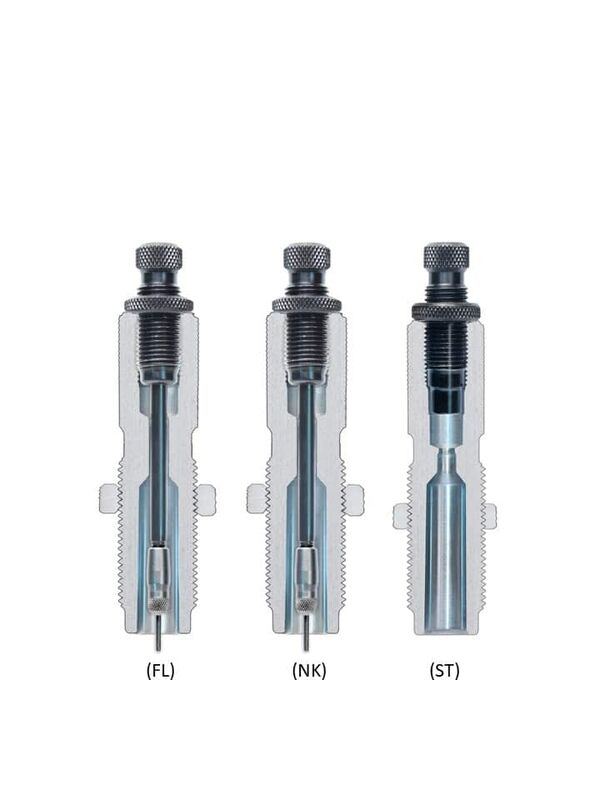

Die Set Type: Deluxe 3-Die Set (Full-Length Sizer, Neck Sizer, Bullet Seater)
Thread Pitch: 7/8"-14 standard thread
Shellholder Requirement: Standard #1 shellholder or #11601 competition shellholder (sold separately)
Material: Heat-treated, hand-polished alloy steel
Operating Mechanism: Manual / mechanical reloading press
Boxed Weight: Approximately 0.6–0.7 kg (~1.4 lbs)

Who is the Redding 6mm BR Remington Deluxe Die Set for?

Benchrest Precision Target Shooters — Needs the Neck Sizing Die within this 3-die set to size only the case neck of fire-formed 6mm BR Remington brass, preserving the exact fire-formed fire dimensions of a dedicated bolt-action chamber for maximum concentricity and case life.
Varmint Hunters Using Bolt-Action 6mm BR Rifles — Requires the standard 7/8"-14 thread Full-Length Sizing Die to restore fired 6mm BR Remington brass back to factory SAAMI dimensions, ensuring reliable chambering and smooth bolt closure in field conditions.

Less suitable for: Handloaders processing brass fired across semi-automatic firearms or multiple different chambers; neck sizing is limited strictly to brass fired from the same bolt-action chamber, making a dedicated full-length small base die set or dedicated full-length bushing die set the proper alternative.

SKU	RD41946LP
Model #	84317
Brand	Redding
Shipping Weight	1.0000kg
