What components are included in the Redding 7x64 Brenneke Deluxe Die Set (Model 84340)?

This 3-die set includes a Full-Length Resizing Die with a decapping rod assembly and size button, a Neck Sizing Die with a decapping assembly and expander, and a Bullet Seating Die featuring a built-in crimping ring. It also comes with a plastic storage case and standard 7/8"-14 die locking rings.

What press threading and shellholder do I need to set up these dies in my workshop?

The dies are built with standard 7/8"-14 threads, making them compatible with almost all standard single-stage and turret reloading presses. You will also need a Redding #1 shellholder, which is sold separately, to securely lock the 7x64mm Brenneke case rim into position.

Can I use the included Neck Sizing Die for brass fired in any 7x64mm rifle?

No. Neck-sized brass is restricted to use only in the exact bolt-action rifle chamber in which it was originally fire-formed. If you are reloading for multiple rifles or require guaranteed chambering across different firearms, you should use the Full-Length Resizing Die instead.

Are there any Australian electrical safety or SAA/RCM certifications required to operate this die set?

No electrical certifications are required. The Redding 84340 is a purely mechanical steel reloading tool set with no electrical components, meaning 240V power compatibility, Australian plugs, and SAA/RCM approvals are not applicable.

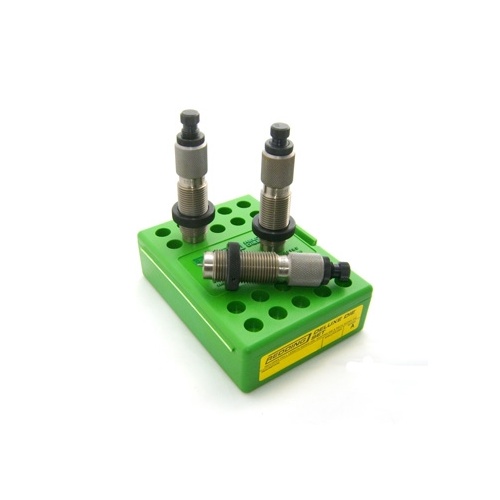

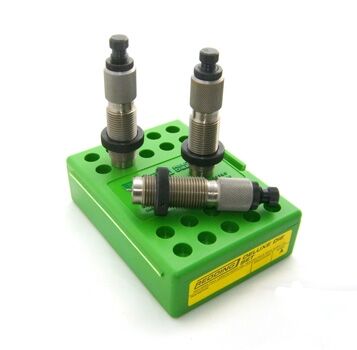

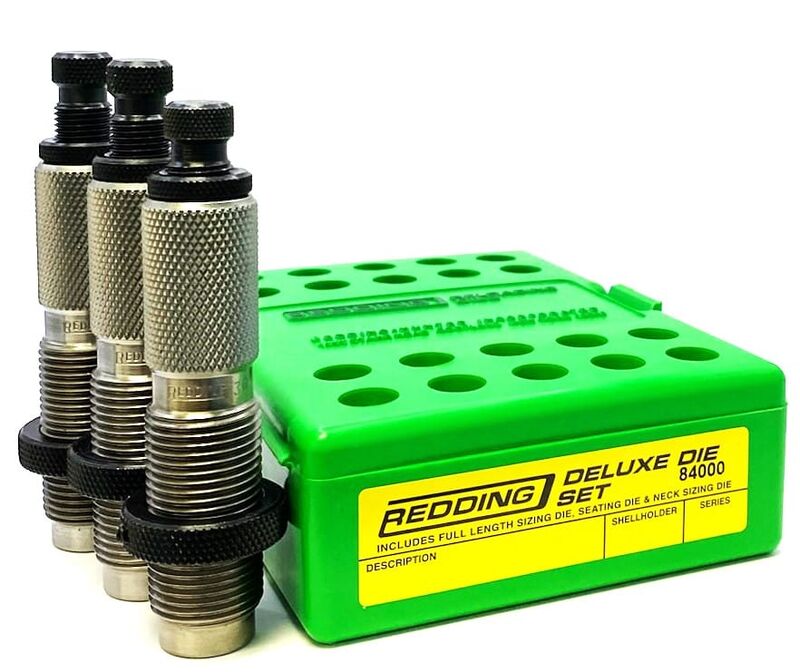

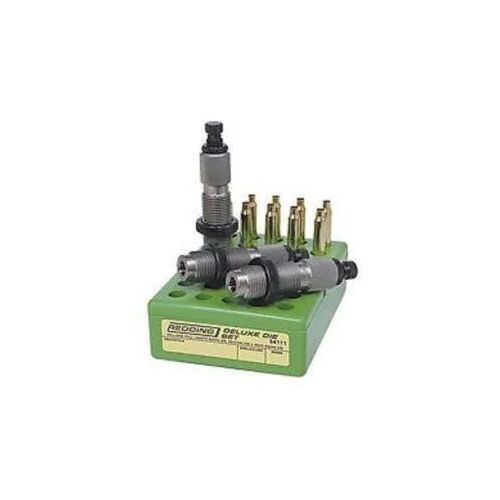

7x64mm Die Set - Redding 84340

The Redding 7x64 Brenneke Deluxe 3-Die Set (MPN 84340) is a dedicated precision reloading tool set designed for handloading 7x64mm Brenneke bottleneck rifle cartridges. Machined from heat-treated alloy steel, this three-die kit provides the tooling required to decap, resize, and seat standard .284 in (7 mm) diameter projectiles. Featuring industry-standard 7/8"-14 mounting threads, the set allows handloaders to switch between neck sizing for fire-formed bolt-action brass and full-length sizing to return cases to factory CIP/SAAMI dimensions.

Key Features

Dual Sizing Versatility: Includes both a Full-Length Resizing Die and a Neck Sizing Die, allowing reloaders to choose between restoring factory dimensions or preserving fire-formed case fire-forming for bolt-action rifles to extend brass life.
Integrated Bullet Seating & Crimping: The included seating die features a standard seating plug and a built-in roll crimp ring to seat and crimp simultaneously, or seat without crimping by backing out the die body.
Decapping and Expanding Assemblies: Both sizing dies come equipped with complete decapping rod assemblies and neck expander size buttons.
Standard Thread Mounting: Precision-machined 7/8"-14 threads and included locking rings ensure secure integration with standard reloading presses.

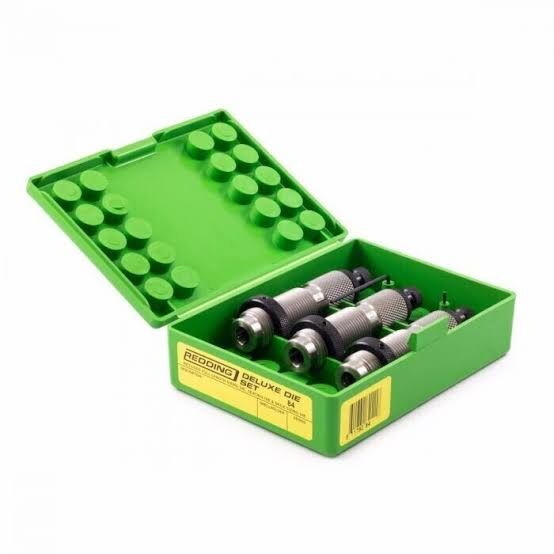

Dedicated Storage: Supplied in a fitted plastic storage case to protect the heat-treated alloy steel dies when not in use.

Product Specifications

Product: Redding 7x64 Brenneke Deluxe 3-Die Set
MPN: 84340
Calibre Compatibility: 7x64mm Brenneke (uses .284 in / 7 mm projectiles)
Press Mounting Thread: 7/8"-14 thread
Shellholder Requirement: Redding #1 Shellholder (sold separately)
Material: Heat-treated alloy steel

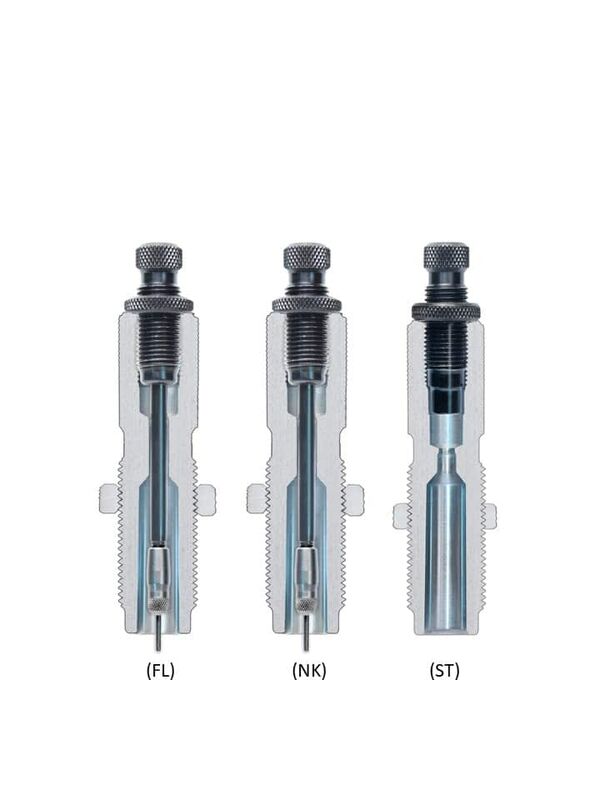

Included Dies: Full-Length Resizing Die, Neck Sizing Die, Bullet Seating Die with Crimp Ring

Who is the Redding 7x64 Brenneke Deluxe Die Set for?

Bolt-Action Hunters: Provides a dedicated neck-sizing die within the 7x64mm Brenneke reloading die set to preserve fire-formed brass dimensions, extending the case life of 7x64mm Brenneke cartridges fired through bolt-action hunting rifles.
Multi-Rifle Handloaders: Features a full-length sizing die threaded to the standard 7/8"-14 pitch that resizes fired 7x64mm Brenneke brass back to factory chamber specifications for reliable feeding across multiple firearms.

Less suitable for: Handloaders seeking to shoot neck-sized brass in mixed chambers or semi-automatic rifles where full-length resizing is mandatory, rimmed 7x65mmR cartridge users who require dedicated rimmed tooling, or benchrest shooters requiring sub-thousandth neck tension adjustments who need specialised bushing or micrometer competition seating dies.

SKU	RD41948LP
Model #	84340
Brand	Redding
Shipping Weight	1.0000kg
