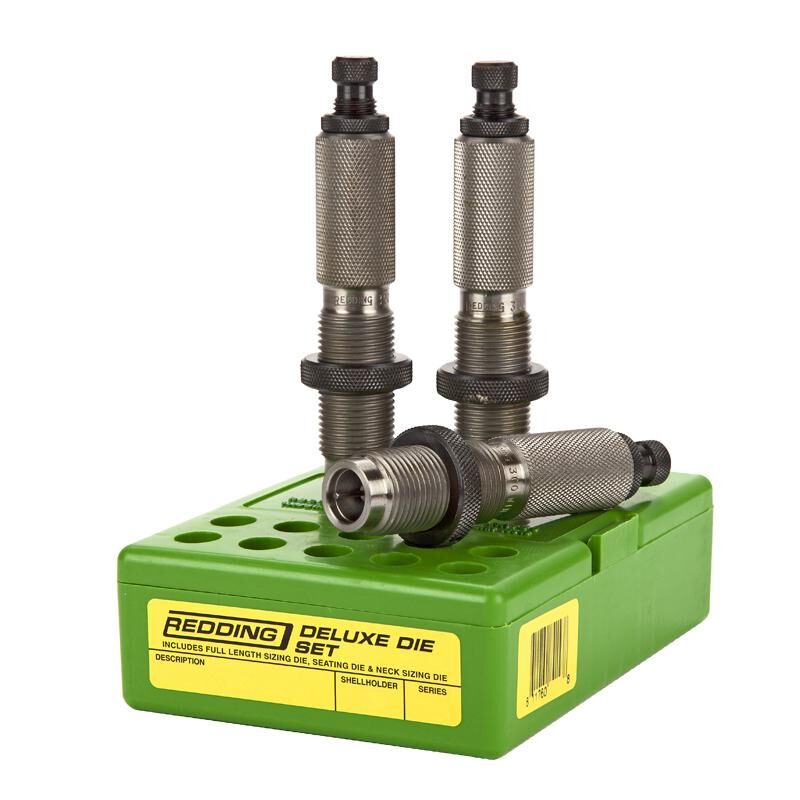

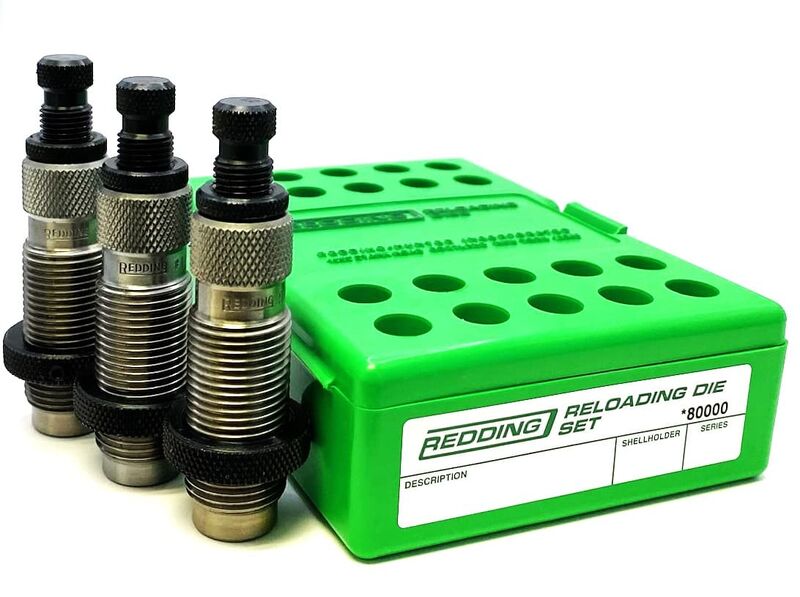

The Redding 6.5 PRC Deluxe 3-Die Set (MPN: 84487) is a precision handloading tool designed to resize fired 6.5 Precision Rifle Cartridge (6.5 PRC) cases and seat 0.264 in (6.71 mm) diameter bullets. Constructed from precision CNC-machined alloy steel heat-treated in atmospherically controlled furnaces, this mechanical 3-die set delivers dual-sizing versatility. It includes a Full-Length Sizing Die with a decapping rod and neck expander button, a dedicated Neck Sizing Die (NK), and a standard Bullet Seating Die with an integrated crimp ring. Operating via standard industry-standard 7/8"-14 thread pitch, it mounts directly to standard single-stage and turret reloading presses.

Key Features

• Dual Sizing Configuration: Contains both a full-length resizing die to restore brass to factory SAAMI dimensions and a neck-only sizing die to preserve fire-formed internal case geometry.
• Internal Finish: Features hand-polished internal die cavities to minimise brass runout and reduce friction during sizing cycles.
• Seating Precision: Includes a standard seating die with a built-in crimping ring and standard seating plug configured for 0.264 in projectile seating alignment.
• Press Compatibility: Standardised with 7/8"-14 threading to fit common Australian-market single-stage and turret reloading presses.
• Storage: Supplied in a hard plastic storage box with a packaged weight of approximately 0.6–0.7 kg.

Specifications

• Product Name: Redding 6.5 PRC Deluxe 3-Die Set
• Manufacturer Part Number (MPN): 84487
• Cartridge Compatibility: 6.5 Precision Rifle Cartridge (6.5 PRC)
• Bullet Diameter: 0.264 in (6.71 mm)
• Die Set Count: 3 dies total (Full-Length Sizing Die, Neck Sizing Die, Standard Bullet Seating Die)
• Thread Size: Standard 7/8"-14 thread
• Shellholder Requirement: Standard Redding Shellholder #6 or Competition Shellholder #11606 (sold separately)
• Material: CNC-machined, heat-treated alloy steel
• Packaged Weight: Approximately 0.6–0.7 kg (1.3–1.5 lbs)
• Power Requirements: None (manual mechanical handloading equipment)

Who is the Redding 6.5 PRC Deluxe Die Set for?

• Long-range precision target shooters — who require the flexibility of a 3-die set containing a dedicated neck sizing die to preserve fire-formed dimensions when reloading 0.264 in diameter bullets for dedicated bolt-action rifles.
• Hunters reloading medium-to-large game cartridges — who need a 7/8"-14 thread full-length resizing die to ensure dependable chambering and feeding of 6.5 Precision Rifle Cartridge ammunition in adverse field conditions.

Less suitable for: Semi-automatic or multi-rifle operations using neck-sized brass, which is strictly limited to fire-formed cases fired from a single bolt-action rifle; reloaders seeking custom neck tension via interchangeable bushings or indexed micrometer adjustments in 0.001" increments should step up to a dedicated bushing or micrometer-adjustable competition die set.
