What dies are included in the Redding 22 Nosler Deluxe Die Set (Model 84768)?

This 3-die set includes a Full-Length Sizing Die with a decapping assembly and expander button, a dedicated Neck Sizing Die, and a Standard Bullet Seating Die featuring built-in roll and taper crimp capabilities. Machined on Hardinge super-precision lathes from heat-treated alloy steel, the set is hand-polished to tight SAAMI chamber specifications.

Can I use the neck sizing die in this set for my semi-automatic .22 Nosler rifle?

No, the neck sizing die is strictly recommended for brass fired in and returned to the same bolt-action rifle chamber, as it does not resize the case body. For semi-automatic platforms like AR-15s, you should use the full-length sizing die to ensure reliable chambering and feeding reliability.

What shellholder do I need to use with these dies on my reloading press?

The Redding 22 Nosler Deluxe Die Set requires a Redding #10 shellholder, which is sold separately. The dies feature an industry-standard 7/8"-14 thread that fits standard single-stage and turret reloading presses commonly used by Australian handloaders.

Are there any electrical compliance or SAA/RCM certifications required for this product in Australia?

No electrical compliance, SAA, or RCM certifications are applicable to this product. The Redding 22 Nosler Deluxe Die Set is a completely manual, non-powered mechanical tool requiring no electrical connections or battery power for outback or workshop use.

22 Nosler Die Set - Redding 84768

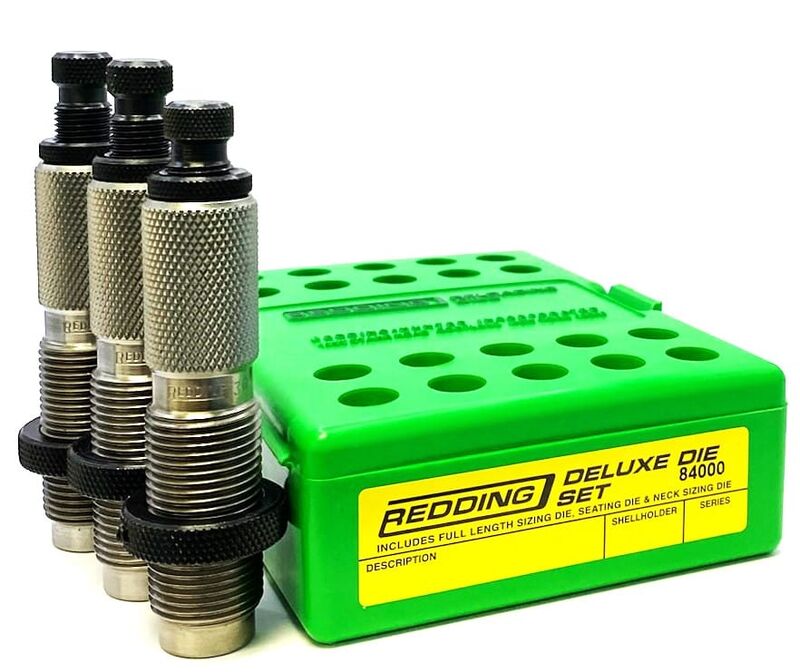

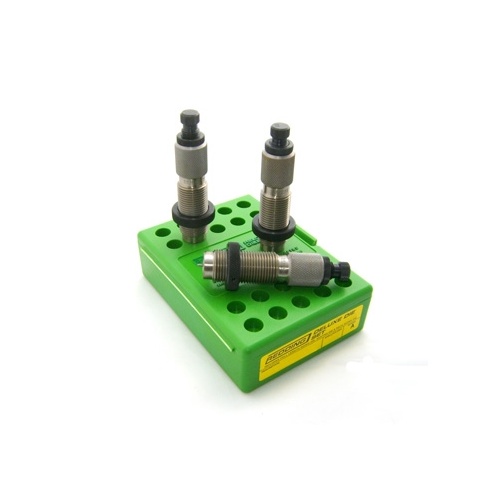

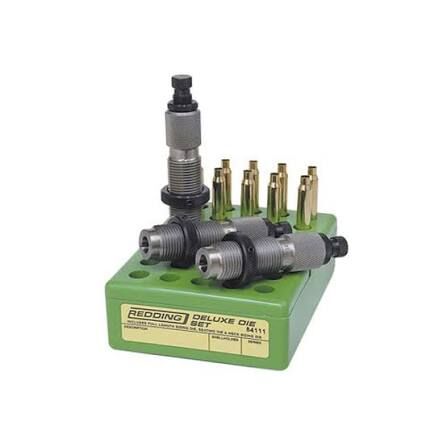

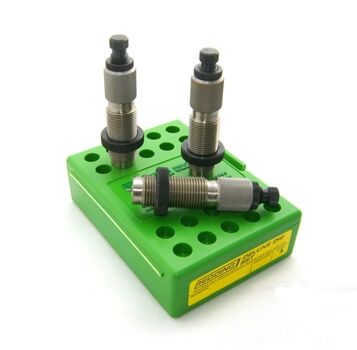

The Redding 22 Nosler Deluxe Die Set (MPN: 84768) is a precision 3-die handloading kit engineered to process and assemble .22 Nosler cartridge cases using standard .224" diameter projectiles. Machined from heat-treated alloy steel on precision lathes and hand-polished to SAAMI chamber specifications, this manual mechanical tool interfaces with standard reloading presses via industry-standard 7/8"-14 threading. The set provides two distinct sizing methods alongside a standard bullet seating die, allowing reloaders to tailor brass preparation for either semi-automatic feeding reliability or bolt-action concentricity.

Key Features

Full-Length Sizing Die: Resizes the entire case body, returns the shoulder to SAAMI headspace specifications, and integrates a decapping assembly with an expander button for reliable chambering in bolt-action and semi-automatic platforms.
Neck Sizing Die: Sizes the case neck without working the body brass, preserving fire-formed dimensions to enhance case life and accuracy in bolt-action chambers.
Standard Bullet Seating Die: Seats .224" bullets to uniform depths with built-in crimp capability.
Precision Machined Construction: Manufactured from heat-treated alloy steel to tight tolerances for consistent dimensional repeatability across high-volume loading sessions.
Press Compatibility: Built with 7/8"-14 threads to mount directly into standard single-stage and turret reloading presses.

Specifications

Calibre: .22 Nosler
Bullet Diameter Compatibility: .224"
Thread Interface: 7/8"-14 thread

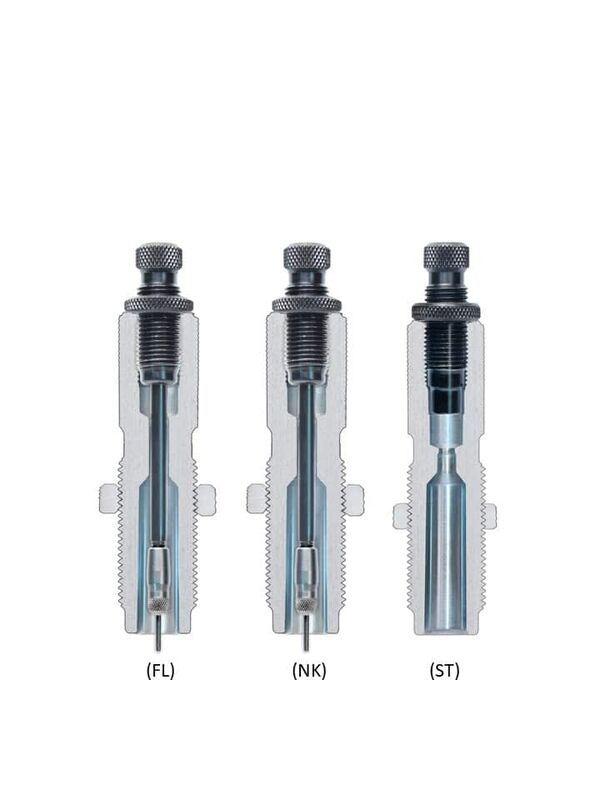

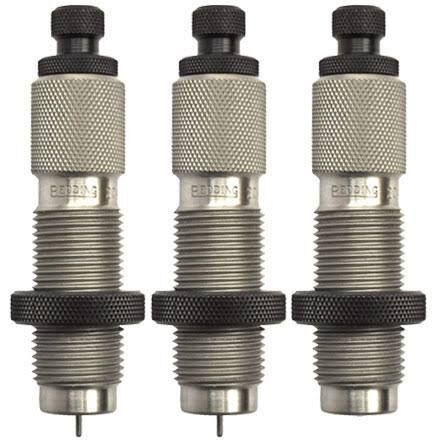

Die Types Included: Full-Length Sizing Die, Neck Sizing Die, Bullet Seating Die
Shellholder Required: Redding #10 shellholder (sold separately)
Packaged Dimensions: Approximately 152 mm × 102 mm × 51 mm
Total Packaged Weight: Approximately 0.91 kg to 1.0 kg
Operation: Manual / non-powered mechanical

Who is the Redding 22 Nosler Deluxe Die Set for?

Varmint and predator hunters — requires the versatility of full-length sizing and neck sizing for .22 Nosler cartridges across standard 7/8"-14 thread reloading presses to maintain rapid feeding reliability in field rifles.
Medium-to-long-range target shooters — relies on the 0.91 kg to 1.0 kg 22 Nosler deluxe reloading die set to neck-size fire-formed .22 Nosler brass, extending case life and maintaining tight chamber concentricity for precision distance shooting.

Less suitable for: Handloaders sizing fire-formed cases exclusively for semi-automatic platforms or multiple different rifle chambers with the neck sizing die, which requires a full-length sizing die set, or shooters needing integrated micrometer-adjustable seating, who require a premium micrometer die set.

SKU	RD41955LP
Model #	84768
Brand	Redding
Shipping Weight	1.0000kg
