Will the Redding 85111 Taper Crimp Die fit my standard single-stage or progressive reloading press?

Yes, the Redding 85111 features the industry-standard 7/8"-14 thread pitch, making it fully compatible with virtually all major reloading presses on the market, including single-stage, turret, and progressive models from brands like RCBS, Hornady, and Lee.

Can I use this die for both .223 Remington and 5.56x45mm NATO brass?

Yes, this die is fully compatible with both .223 Remington and 5.56x45mm NATO cartridges using standard .224" diameter projectiles and Redding shellholder #10. Because 5.56 brass often features thicker walls and military crimps, ensuring consistent case trim lengths is critical for achieving a uniform taper crimp.

Do I need this taper crimp die if I am loading precision match ammo for a bolt-action rifle?

Generally, no. For precision bolt-action rifles where rounds are single-fed or neck tension alone provides sufficient bullet hold, a crimp is usually unnecessary and can sometimes degrade ultimate accuracy. This die is specifically engineered to secure non-cannelure bullets for semi-automatic and magazine-fed rifles to prevent bullet setback during high-volume feeding.

Does this mechanical reloading die require any electrical compliance or SAA/RCM certification for use in Australia?

No electrical compliance or SAA/RCM certification is required because the Redding 85111 is a purely mechanical reloading tool with no electrical components. It operates entirely through manual press leverage.

How should I maintain and store this heat-treated steel die to protect it from outback humidity or workshop conditions?

Constructed from heavy-duty, heat-treated alloy steel, the die is built for long-term durability on your reloading bench. To prevent surface oxidation—especially if stored in variable Australian workshop or shed temperatures—wipe the exterior and interior surfaces with a light gun oil or anti-corrosion protectant after use.

223 Crimp Die - Redding 85111

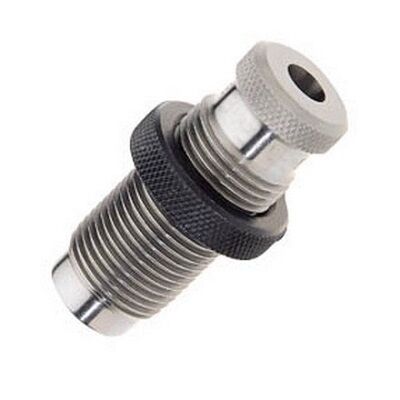

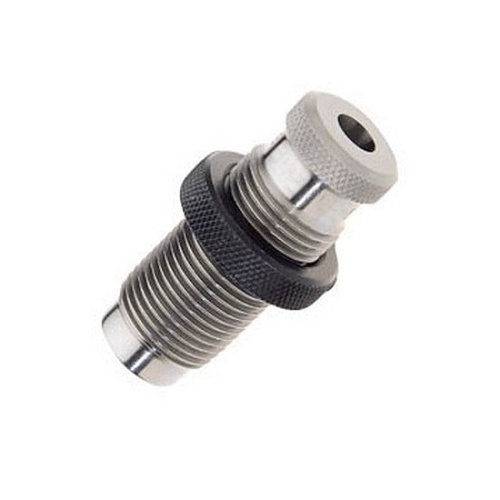

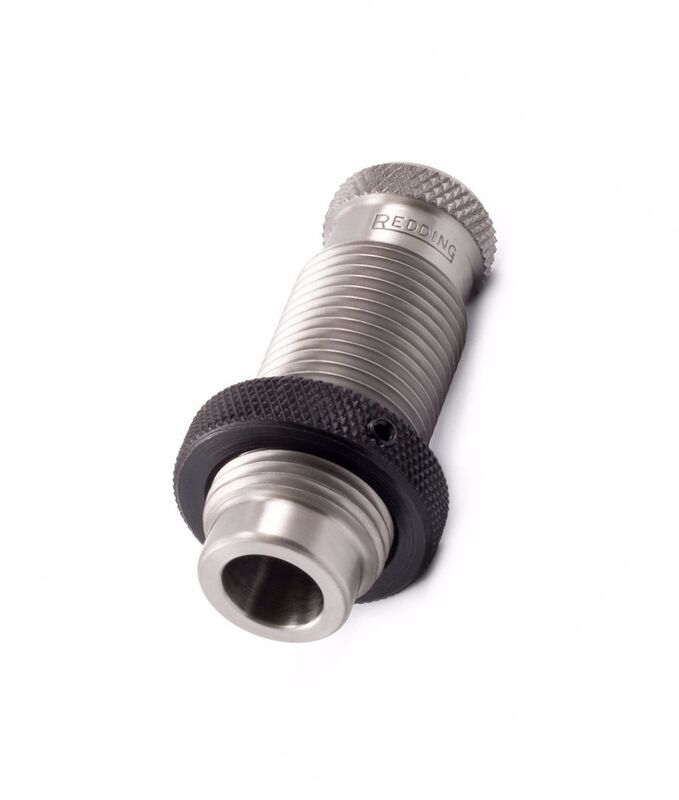

The Redding Taper Crimp Die for .223 Remington (MPN: 85111) is a precision-machined, heat-treated alloy steel reloading die designed to secure .224" diameter projectiles in .223 Remington and 5.56×45mm NATO cartridge cases. Unlike traditional roll crimp dies that fold the case mouth inward and risk buckling case necks or distorting bullet jackets, this die applies uniform, angled pressure directly along the case mouth. It establishes consistent neck tension and cartridge retention for match and hunting bullets manufactured without an external crimping cannelure, preventing projectile setback during cycling and magazine feeding.

Non-Cannelure Bullet Retention: Applies a controlled taper crimp that secures plain-shank .224" diameter bullets without deforming jackets or crushing brass shoulders.
Alloy Steel Construction: Precision-machined from heat-treated alloy steel to maintain tight internal dimensional tolerances over high-volume reloading cycles.
Standard Press Mounting: Uses an industry-standard 7/8"-14 thread interface to ensure compatibility with standard single-stage, turret, and progressive reloading presses.
Feed Reliability: Eliminates case mouth flare and provides consistent neck grip to prevent bullet movement under recoil in magazine-fed firearms.

Specifications

Brand: Redding Reloading Equipment
Manufacturer Part Number (MPN): 85111
Calibre Compatibility: .223 Remington / 5.56×45mm NATO
Bullet Diameter Compatibility: .224"
Thread Size: Standard 7/8"-14 thread
Shellholder Compatibility: Redding #10
Material: Heat-treated alloy steel
Operation: Mechanical / non-electric

Who is the Redding Taper Crimp Die for .223 Remington for?

High-volume semi-automatic .223 Rem shooters — Secures .224" diameter bullets against recoil-induced projectile setback during rapid cycling by applying a uniform taper crimp across 7/8"-14 threaded reloading setups.
Reloaders loading non-cannelure bullets for magazine-fed rifles — Delivers smooth, reliable chambering in .223 Remington and 5.56×45mm NATO chambers by closing the case mouth precisely around non-cannelured .224" diameter projectiles without buckling the case neck.

Less suitable for: Precision bolt-action shooters achieving sufficient neck tension without crimping, handloaders seating bullets with deep grooves who require a mechanical roll-crimp die or collet-style factory crimp die, or reloaders needing fast on-press adjustments who would be better served by a micro-adjusting taper crimp die featuring an external micrometer top.

SKU	RD102146LP
Model #	85111
Brand	Redding
Shipping Weight	0.2000kg
