Is the Redding 91111 full length sizing die suitable for use with AR-15 semi-automatic rifles?

No, this standard full length sizing die is recommended for standard bolt-action rifles. For semi-automatic, pump-action, or AR platforms featuring tighter chambers, Redding specifically advises using their Small Base Full Length Sizing Die (Part #91323) to ensure reliable chambering.

What shellholder do I need to use with the Redding 91111 die on my reloading press?

The Redding 91111 features an industry-standard 7/8"-14 threaded body that fits most standard reloading presses in Australia such as Redding, RCBS, Hornady, and Lee. However, a shellholder is not included in the box and requires a Redding #10 Shellholder (Part #11010) or Competition Shellholder #11610 to properly hold .223 Remington brass.

Does this die require any electrical compliance certifications or power sources for use in Australia?

No electrical compliance or SAA/RCM certifications are required. The Redding 91111 is a purely mechanical, non-electrical reloading die that operates manually via your reloading press, making it entirely independent of mains power or 240V adapters for Australian workshops.

Can I upgrade the internal components of this die later on?

Yes, the die is compatible with optional Redding upgrades such as the Carbide Size Button (#48223), which can replace the standard steel expander/size button (#39223) to eliminate the need for internal case neck lubrication during the sizing process.

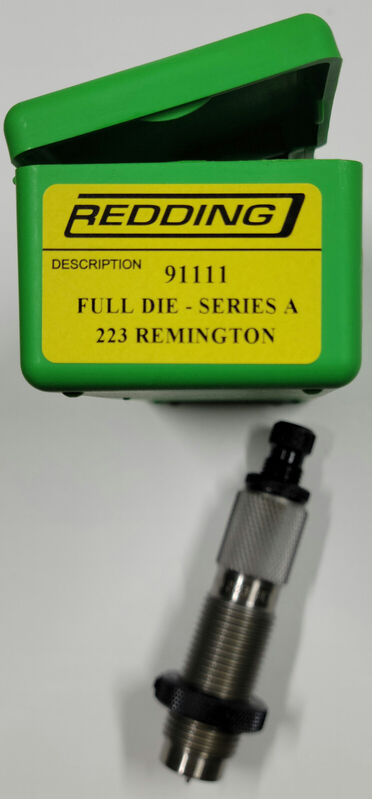

223 Sizing Die - Redding 91111

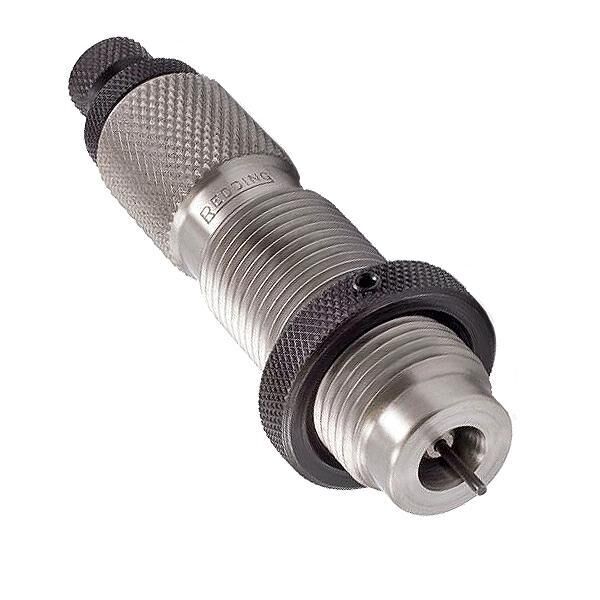

The Redding 91111 Full Length Sizing Die is a dedicated reloading tool engineered to return fired .223 Remington brass back to factory SAAMI specifications. Machined from heat-treated alloy steel with polished internal cavities, it resizes the entire case body, bumps the shoulder back to standard dimensions, expands the case neck, and deprimes spent boxer primers in a single press stroke. Built on an industry-standard 7/8"-14 thread pattern, it installs into any standard single-stage or turret reloading press, ensuring reliable chambering and feeding across standard rifle actions.

Key Features

Full-Length Case Resizing: Restores the entire body, shoulder, and neck of fired .223 Remington cases to factory SAAMI dimensions to prevent chambering resistance.
Integrated Decapping Assembly: Deprimes spent boxer primers during the downward stroke using an internal decapping rod (Part #33223) fitted with a standard decapping pin (#01060).
Steel Expander Button: Features an internal steel size button (Part #39223) that expands the case mouth to correct neck tension for 0.224 in diameter projectiles.
Alloy Steel Construction: Precision-machined and heat-treated alloy steel body with polished internal dimensions to minimise friction and brass runout during the sizing cycle.
Upgrade Compatibility: Accommodates optional accessories, including the Redding Carbide Size Button (#48223) to eliminate the requirement for inside-neck lubrication.

Specifications

Manufacturer Part Number (MPN): 91111
Calibre: .223 Remington
Bullet Diameter Compatibility: 0.224 in
Thread Interface: Industry-standard 7/8"-14 threads
Compatible Shellholders: Redding #10 Shellholder (#11010) or Competition Shellholder #11610 (sold separately)
Included Components: Decapping rod assembly (#33223), decapping pin (#01060), steel expander button (#39223), and Redding lock ring
Power Requirements: Non-powered / purely mechanical
Lubrication: External case lubrication required before operation

Who is the Redding 91111 Full Length Sizing Die for?

Bolt-Action .223 Remington Reloaders — Sizes fired brass back to standard dimensions across the entire case length and properly tensions necks for 0.224 in bullet diameters, providing smooth cycling in standard bolt-action rifle chambers using standard 7/8"-14 threaded reloading presses.
Shooters Loading for Multiple Rifles — Full length sizing die that bumps the shoulder and reduces case body dimensions back to SAAMI tolerances on 0.224 in calibre bottleneck cases, ensuring consistent chambering across varying chambers without manual neck-only sorting.

Less suitable for: Semi-automatic, pump-action, or AR-platform rifles with tight military/match chambers requiring extra case-wall reduction (where a Small Base Full Length Sizing Die is recommended), or precision benchrest competitors seeking micrometer-adjustable neck tension without an expander ball (where a Type S Bushing Full Length Die is recommended).

SKU	RD102103LP
Model #	91111
Brand	Redding
Shipping Weight	0.2000kg
