Will the Redding 92242 seating die fit my standard reloading press?

Yes, the Redding 92242 features industry-standard 7/8"-14 TPI threading, making it fully compatible with most standard single-stage and progressive reloading presses used by Australian handloaders, such as presses from Redding, RCBS, Hornady, and Lee.

Can I use this 7mm TCU seating die for other 7mm rifle cartridges like 7mm-08 Remington or 7mm Rem Mag?

No, this die is strictly engineered for the 7mm TCU (Thompson/Center Ugalde) wildcat cartridge utilising .284 inch diameter projectiles. It lacks the internal body dimensions required for standard short-action or magnum 7mm cartridges such as the 7mm-08 or 7mm Rem Mag.

Does the Redding 92242 include a micrometer adjustment for seating depth?

No, the model 92242 is a standard bullet seating die utilizing a Part #01067 seating plug rather than a micrometer head. If you require ultra-fine adjustments in .001" increments, you would need to look at the Redding Competition Seating Die (MPN 55242) or purchase an aftermarket micrometer seating head.

What shellholder do I need to pair with this die for reloading 7mm TCU?

This seating die pairs with a Redding Standard Shellholder #10 (Part #11010) or the Redding Competition Shellholder #11610. Ensure you have the correct shellholder to reliably hold the case base during the bullet seating stroke on your bench.

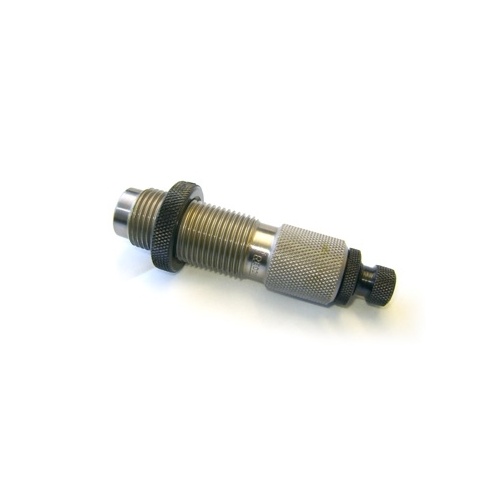

7mm TCU Seating Die - Redding 92242

The Redding 7mm TCU Bullet Seating Die (Heat Treated Alloy Steel) (MPN: 92242) is a dedicated reloading die designed to seat .284" diameter projectiles into the 7mm TCU (Thompson/Center Ugalde) wildcat cartridge. Machined from alloy steel that is heat-treated in atmospherically controlled furnaces and hand-polished, this standard seating die maintains precise cartridge overall length (COL) while resisting galling and wear. It features industry-standard 7/8"-14 TPI threading to interface with single-stage and progressive reloading presses, and includes an internal roll crimp profile that can be applied or backed off depending on press setup.

Key Features

Precise Projectile Seating: Incorporates an internal bullet guide and seating plug to align and seat standard .284" diameter bullets to consistent cartridge overall lengths.
Adjustable Roll Crimp: Built-in roll crimp feature allows reloaders to apply a crimp by adjusting die depth against the shellholder or back off the die to seat bullets without crimping.
Heat-Treated Alloy Steel: Precision-machined and furnace-hardened steel construction prevents galling and withstands extended reloading lifecycles.
Standard Thread Interface: Features 7/8"-14 TPI threads compatible with standard mechanical reloading presses.

Specifications

Manufacturer Part Number (MPN): 92242
Calibre Compatibility: 7mm TCU (Thompson/Center Ugalde)
Bullet Diameter: .284" (7mm)
Die Threading: 7/8"-14 TPI
Seating Plug: Part #01067
Lock Ring: Part #01016 (standard steel)
Shellholder Compatibility: Redding #10 Standard Shellholder (Part #11010) or Competition Shellholder #11610 (sold separately)
Power Requirements: None (manual mechanical tool)

Who is the Redding 7mm TCU Bullet Seating Die for?

Australian Thompson/Center Contender Handloaders — requires a 7/8"-14 TPI threaded 7mm TCU bullet seating die to seat .284" diameter bullets accurately into fire-formed 7mm TCU brass for single-shot pistol platforms.
Metallic Silhouette Handgunners and Specialty Rifle Shooters — needs consistent cartridge overall length using a dedicated 7mm TCU seating die with a built-in roll crimp to manage .284" projectile alignment for competition handloads.

Less suitable for: Handloaders seeking micrometer adjustments calibrated in .001" increments or straight-line floating sleeve alignment, who require a dedicated competition micrometer seating die, or those loading standard factory 7mm rounds like 7mm-08 Rem or 7mm Rem Mag, which require full-length dies machined specifically for those cartridge dimensions.

SKU	RD102258LP
Model #	92242
Brand	Redding
Shipping Weight	0.2000kg
