Will the Redding 270 Win Master Hunter Deluxe Die Set work with .270 WSM or .270 Weatherby Magnum cases?

No, this die set is exclusively designed for standard bottleneck .270 Winchester cases shooting .277 inch projectiles. It cannot be used with short magnum or weatherby magnum cartridges, so you will need dedicated dies like the Redding 84384 for those specific chamberings.

What press threading and shellholders are required to set up this die set in my reloading room?

The dies feature industry-standard 7/8 inch-14 threading, making them fully compatible with standard single-stage and turret reloading presses. You will also need to separately acquire a Redding #1 Standard Shellholder (part 11001) or a #1 Competition Shellholder (part 11601) to secure your brass.

How do I maintain these steel dies to prevent rust in humid Australian coastal or bush climates?

Because the dies are constructed from precision-ground and heat-treated alloy steel, they require standard anti-corrosion protection when stored in humid environments across Australia. Applying a light coat of protective gun oil or using a dedicated case lube like Redding Imperial Sizing Die Wax during your reloading sessions will keep the surfaces protected against moisture.

270 Win Die Set - Redding 29135

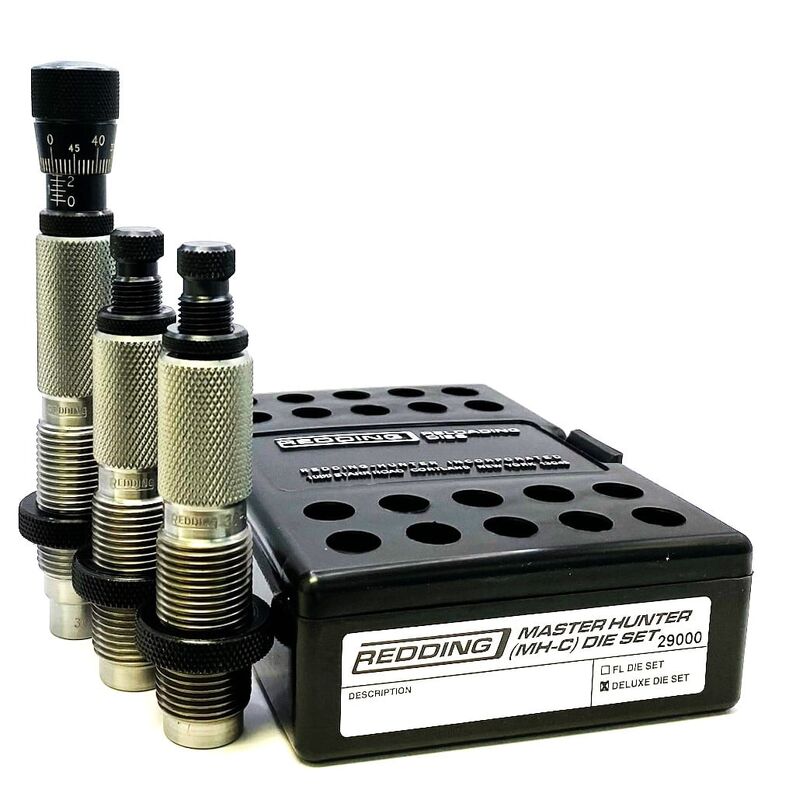

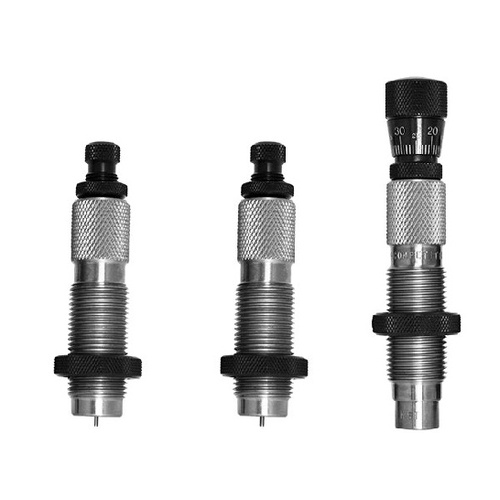

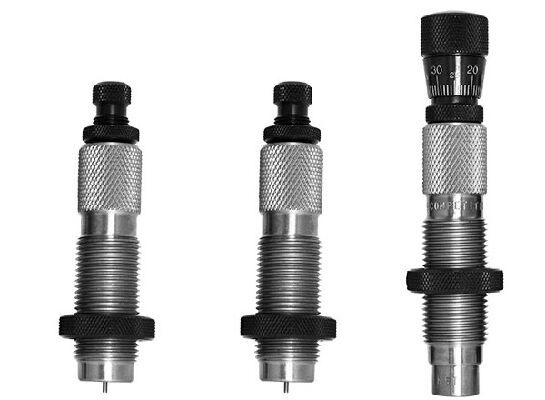

The Redding 270 Win Master Hunter Deluxe Die Set (MPN 29135) is a precision 3-die handloading kit engineered to produce match-grade hunting ammunition for .270 Winchester rifles. Manufactured from heat-treated alloy steel with industry-standard 7/8"-14 threading, this mechanical benchtop tooling set formats bottleneck cases and seats .277" diameter projectiles for cycling reliability and accuracy in standard commercial hunting actions.

Key Features

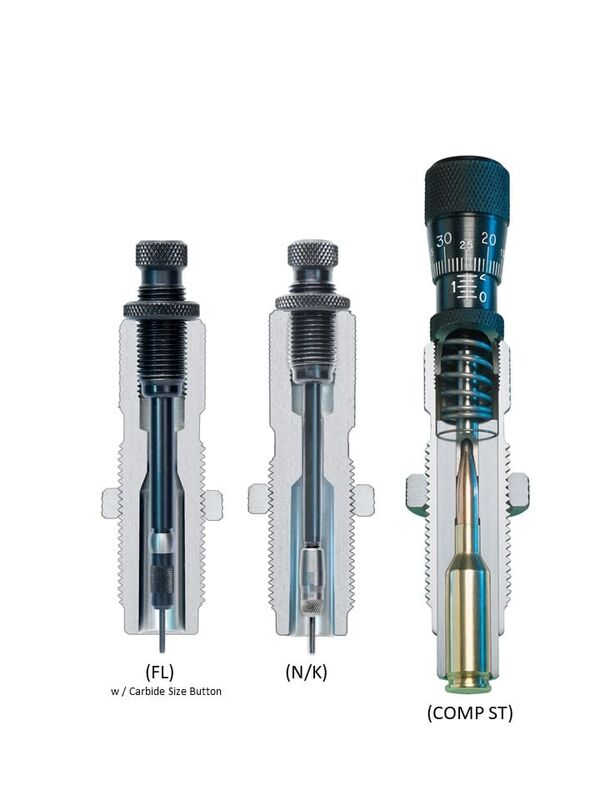

Full-Length Sizing Die with Carbide Expander: Returns fired brass to SAAMI chamber dimensions while utilizing a free-floating carbide expander ball that reduces neck drag and case stretch without requiring internal neck lubricant.
Standard Neck Sizing Die: Sizes only the case neck to preserve fire-formed chamber dimensions for bolt-action rifles, extending brass life and improving concentricity while accommodating the swappable carbide expander button.
Competition Bullet Seating Die: Utilizes an internal sliding alignment sleeve to center the cartridge case and projectile before seating, governed by an integrated micrometer head adjustable in 0.001" increments.
Universal Press Interface: Built with standard 7/8"-14 threads to mount directly into standard single-stage and turret reloading presses.

Product Specifications

Calibre Compatibility: .270 Winchester
Bullet Diameter: .277"
Die Thread Interface: 7/8"-14
Micrometer Adjustment Resolution: 0.001" increments

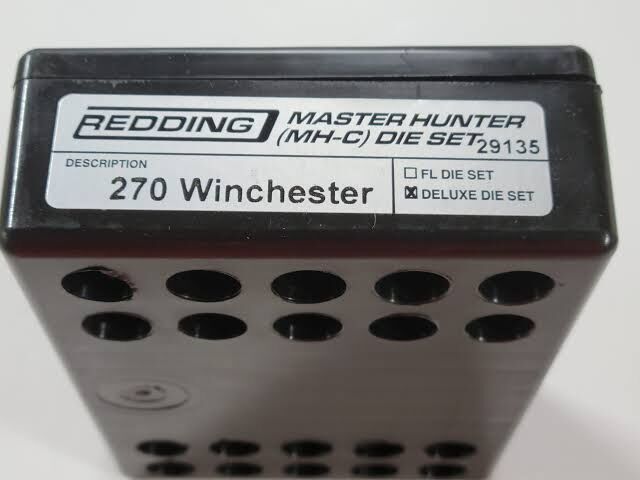

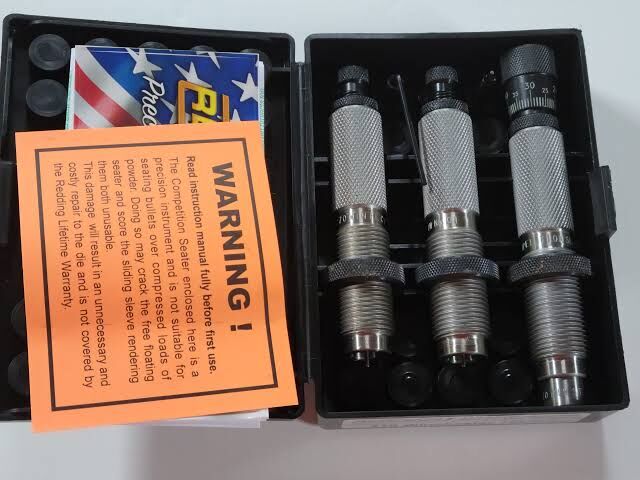

Die Set Contents: Full-length sizing die with carbide expander, neck sizing die, competition seating die, and moulded 3-die storage box
Required Shellholder: Redding #1 Standard Shellholder (part 11001) or #1 Competition Shellholder (part 11601) (sold separately)
Packaged Boxed Weight: Approximately 0.65–0.75 kg

Who is the Redding 270 Win Master Hunter Deluxe Die Set for?

Australian hunters loading .270 Win cartridges — requires precise projectile depth management, enabled by this Master Hunter Deluxe Die Set featuring a competition seating die with micrometer adjustments in 0.001" increments.
Long-range deer stalkers — relies on full-length sizing across standard 7/8"-14 threaded reloading presses to ensure cycling reliability and bolt closure in standard commercial actions.
Vermin controllers — benefits from the Master Hunter Deluxe neck-sizing die fitted to standard 7/8"-14 reloading presses to preserve fire-formed brass concentricity for dedicated single-chamber bolt-action rifles.

Less suitable for: Shooters loading alternative .270-calibre cartridges such as .270 WSM or .270 Weatherby Magnum, who require dedicated cartridge-specific die sets, or competitive benchrest shooters seeking exact neck-tension control without expander balls, who are better served by specialized neck bushing dies.

SKU	RD41500LP
Model #	29135
Brand	Redding
Shipping Weight	1.0000kg
