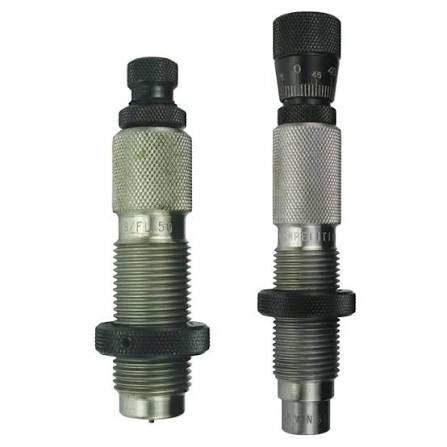

The Redding 220 Swift Type S - Match Full Die Set (MPN 36107) is a precision 2-die reloading system engineered to resize .220 Swift cartridge cases to factory dimensions while seating projectiles with minimal runout. Designed for manual reloading presses utilising standard 7/8"-14 threads, this set pairs a Type S Full-Length Bushing Sizing Die with a Redding Competition Bullet Seating Die. The sizing die accepts interchangeable sizing bushings to regulate neck tension without overworking brass, while the seating die employs an internal sliding alignment sleeve to maintain concentricity during bullet seating.

Key Features:

• Interchangeable Bushing Sizing: The Type S Full-Length Sizing Die accepts self-centering bushings in 0.001" increments to establish precise neck tension and preserve brass life.

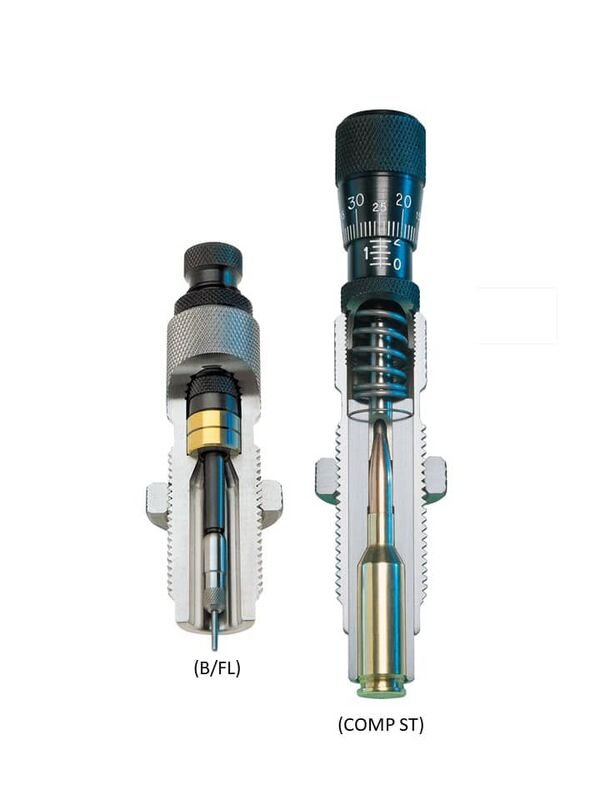

• Competition Seating Alignment: The seating die features a close-tolerance sliding sleeve that fully captures the case body before seating begins to minimise bullet runout.
• Micrometer Seating Depth Control: The integrated micrometer head provides direct-reading seating depth adjustments calibrated in 0.001" graduations.
• Configurable Decapping Assembly: Includes an adjustable decapping rod, standard size expander button, and a decapping pin retainer for sizing neck-turned brass without an expander button.

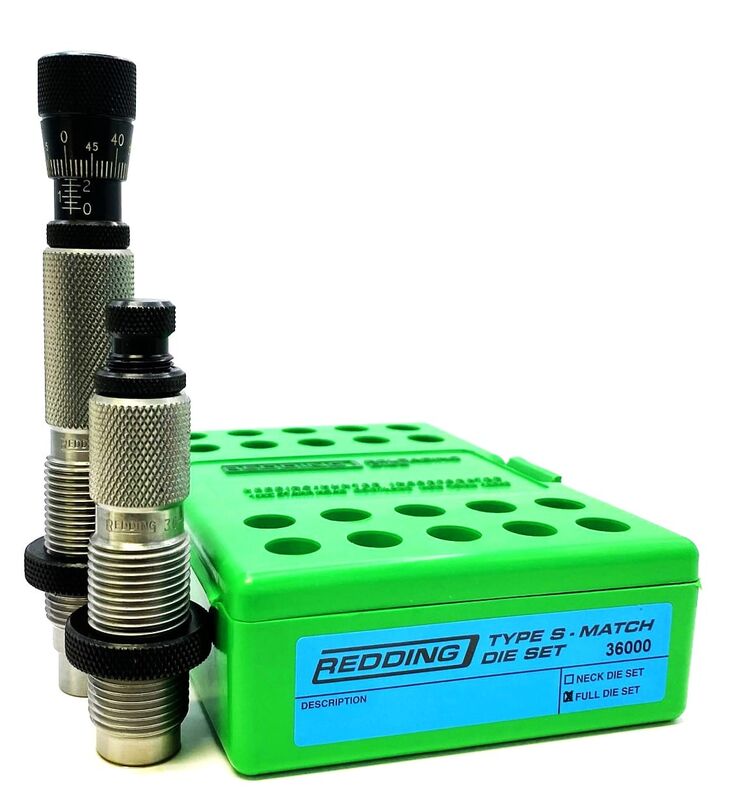

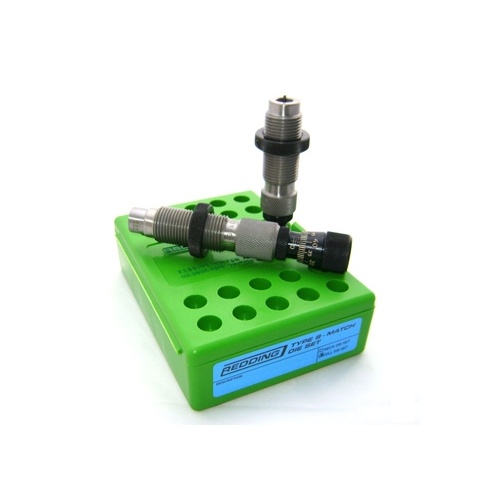

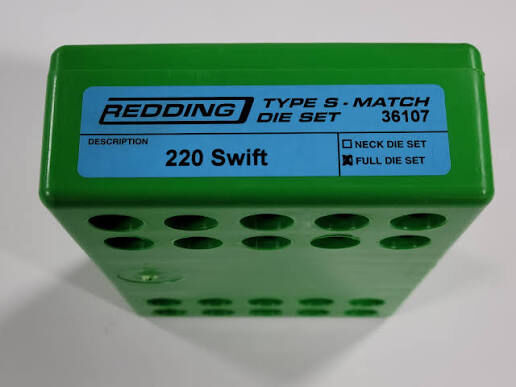

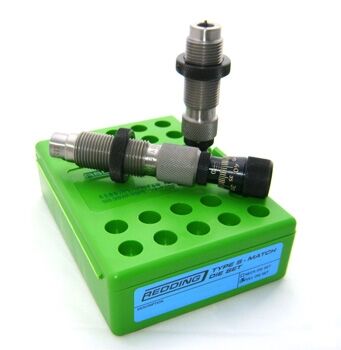

• Heat-Treated Steel Construction: Machined from alloy steel and supplied in a heavy-duty polymer storage box.

Specifications:

• Cartridge Compatibility: .220 Swift
• Thread Interface: Industry-standard 7/8"-14 threads
• Adjustment Increments: 0.001" micrometer seating head; 0.001" sizing bushing increments
• Set Weight: Approximately 0.6–0.7 kg
• Included Components: Type S Full-Length Sizing Die, Competition Seating Die, decapping pin retainer, polymer storage box (bushings and shell holder sold separately)

Who is the Redding 220 Swift Type S - Match Full Die Set for?

• Precision long-range varmint hunters — Requires full-length resizing on high-pressure .220 Swift cases to guarantee chambering reliability across field rifles, while maintaining 7/8"-14 thread compatibility and exact neck tension for ultra-high-velocity pest eradication handloads.
• Benchrest and target handloaders — Utilises the 0.001" micrometer-graduated seating head and internal sliding sleeve on this reloading die set to achieve match-grade bullet concentricity and exact seating depth consistency.

Less suitable for: Handloaders seeking to resize calibres other than .220 Swift, or those using presses that lack standard 7/8"-14 threads, who require a dedicated calibre-specific standard die set or an appropriate multi-calibre press adapter system.
