What size dovetail rails and scope tubes are compatible with the Sportsmatch ATP97 mounts?

The Sportsmatch ATP97 mounts are specifically designed to fit standard 3/8-inch to 11mm (9.5mm to 11.5mm) dovetail rails commonly found on rimfire and air rifles. They feature a 1-inch (25.4mm) ring diameter to securely accommodate standard 1-inch scope tubes.

How much elevation adjustment do the ATP97 rings provide, and what is the benefit?

The ATP97 provides up to 45 MOA of vertical elevation adjustment directly within the ring base itself. This allows you to rough-zero your optic before fine-tuning with the rifle scope's turrets, keeping your reticle optically centered for maximum internal adjustment range during long-range shooting.

Do these mounts prevent scope movement on high-recoil air rifles?

Yes, the ATP97 features an integrated removable steel arrestor or stop pin that locks securely into the receiver's indexing holes. This robust design is purpose-built to completely eliminate scope creep caused by bi-directional recoil on high-powered spring and piston air rifles.

Are there any electrical compliance requirements, such as SAA or RCM certifications, needed for these mounts in Australia?

No, because the Sportsmatch ATP97 is a fully mechanical firearm and airgun accessory with no electronic components, standard electrical compliance frameworks such as 240V compatibility, SAA approvals, and RCM certifications do not apply.

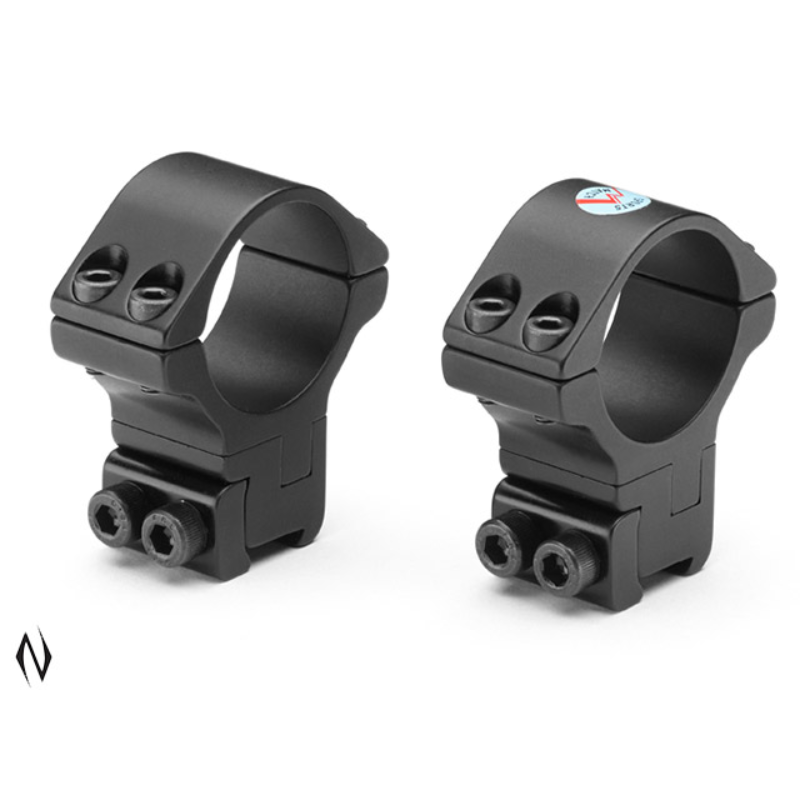

Adjustable Scope Rings - Sportsmatch ATP97

The Sportsmatch ATP97 1" 2 Piece Adjustable Dovetail Rings provide a precise, engineered mounting solution for shooters requiring customizable height and vertical elevation alignment. Manufactured in the UK, these rings are designed to fit 9.5mm to 11.5mm (3/8" to 11mm) dovetail rails, which are standard on many classic and modern rimfires and air rifles. The defining feature of the ATP97 is its mechanical height and elevation adjustability, allowing for up to 45 MOA of vertical correction directly within the mount itself. This capability enables shooters to rough-zero their rifle scope using the mounts, keeping the reticle optically centered to preserve the scope's full internal adjustment range. While some regional catalogs refer to this model as an elevation and windage mount, manufacturer specifications confirm that the ATP97 focuses specifically on elevation and height adjustments, offering an adjustable height profile of 22mm to 23.8mm (often classified as "Xtra High" in the Australian market).

Key Features:

45 MOA Elevation Adjustment: Provides up to 45 MOA of vertical correction, allowing you to align your optic mechanically and keep your scope's turrets centered for optimal optical performance.
Height Customization: Adjustable height range of 22mm to 23.8mm (measured from the bottom of the mount to the bottom of the scope tube) helps clear objective lenses up to 50mm while keeping the scope as close to the bore axis as possible.
No-Slip Recoil Protection: Includes a removable steel arrestor/stop pin that locks into the receiver indexing holes, completely eliminating scope creep caused by the bi-directional recoil of high-powered spring piston air rifles.
Double Screw Security: Double screw ring clamps ensure a balanced, secure grip around 1" (25.4mm) scope tubes without pinching or damaging the scope body.
Lightweight High-Tensile Build: Engineered from high-grade materials in the United Kingdom, weighing only 112 grams to avoid adding unnecessary bulk to your rifle setup.

Product Specifications:

Manufacturer: Sportsmatch UK
Model Number: ATP97
Scope Tube Diameter: 1" (25.4mm)
Base Mounting Clamp: 9.5mm to 11.5mm (3/8" to 11mm) Dovetail rails
Height Range (Dimension A): 22mm to 23.8mm (0.866" to 0.937")
Ring Width (Dimension B): 21mm (0.827")
Weight: 112 grams
Vertical Correction: Up to 45 MOA
Hardware: Double screw ring clamps with an integrated, removable steel arrestor/stop pin

Who It Is For:

The Sportsmatch ATP97 is designed for precision rimfire shooters and airgun enthusiasts who need to overcome scope alignment limitations. It is highly compatible with popular Australian rimfire and air rifle platforms featuring dovetail receivers, including CZ, Weihrauch, and older Brno models. If you are shooting at extended distances where your scope's internal elevation adjustments are stretched to their limits, or if you are mounting a large-objective scope on a rifle with a standard dovetail rail, these adjustable rings provide the necessary mechanical correction and clearance. The inclusion of the removable stop pin makes it an excellent choice for hunters using high-powered spring-piston air rifles that require robust protection against recoil-induced scope movement.

SKU	SPM39121LP
Model #	ATP97
Brand	Sportsmatch
Shipping Weight	1.0000kg
