Will these low mounts clear the objective lens on my rimfire scope?

As a low mount with a total height of 40 mm, the Hawke 22100 is strictly designed for scopes with objective lenses up to 32 mm or compact straight-tube configurations. If your scope features a larger objective bell of 40 mm, 44 mm, or has an adjustable objective collar, you will need to step up to Medium or High variants to prevent the bell from contacting your barrel.

Are these mounts suitable for heavy recoiling air rifles and outback hunting conditions?

Yes, these mounts are engineered to withstand the bi-directional recoil of spring-piston airguns and standard rimfire calibres like .22 LR and .17 HMR. They feature a built-in retractable recoil stop pin to lock into receiver arrestor holes, preventing scope slippage during extended bush carry and heavy field use.

What kind of rail systems and tube sizes do these rings fit?

The Hawke 22100 features a reversible clamp plate designed specifically to fit 9-11 mm and 3/8-inch dovetail rifle receivers. They are built for riflescopes with a 1-inch (25.4 mm) tube diameter and are not compatible with Picatinny or Weaver rail systems.

Do these mounts require any special Australian electrical certifications?

No electrical compliance or certifications such as SAA or RCM apply to this product. The Hawke Match Mount is a purely mechanical, unpowered CNC-machined aluminium mounting system requiring no mains power.

Dovetail Scope Rings - Hawke 22100

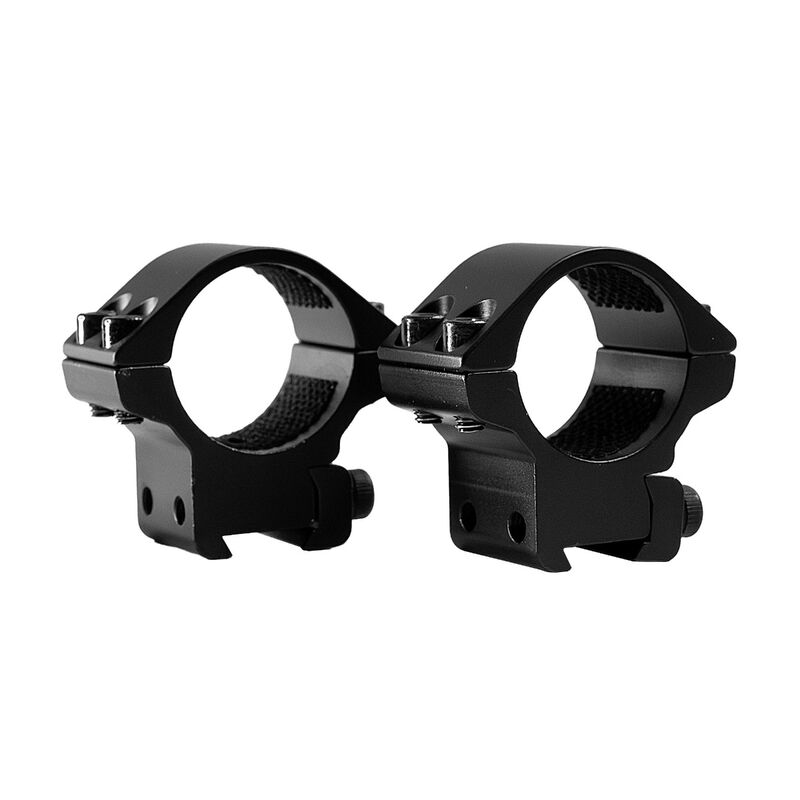

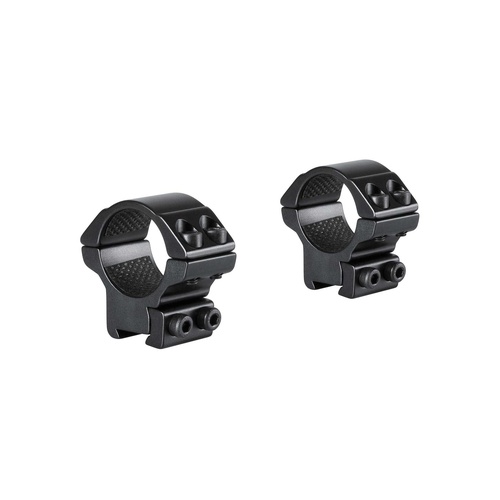

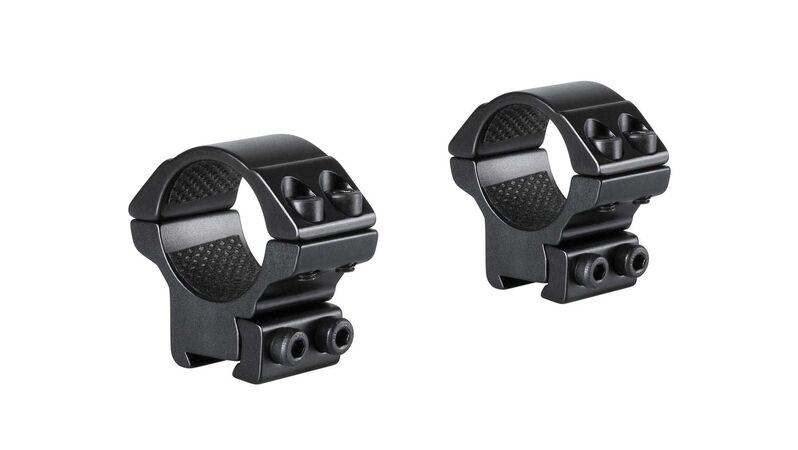

The Hawke Match Mount 1" 2 Piece 9–11mm Low (Model 22100) is a precision-engineered scope mounting system designed to secure 1-inch (25.4 mm) main tube riflescopes to rifles featuring 9–11 mm or 3/8-inch dovetail receivers. Built from CNC-machined high-grade aluminium with rounded edges and a matte black anodised finish, this two-piece ring set delivers a secure mechanical interface without adding unnecessary bulk. Featuring a low profile with a total height of 1.6 inches (40 mm) and a combined weight of 71 g, it maintains a close-to-bore alignment for small-objective optics on rimfire and air rifle setups.

Key Features

Internal Cushion Tape: Protective internal lining prevents scope tube scratches, pinching, and compression marks during installation and recoil.
Retractable Recoil Stop Pin: Built into the base to lock directly into receiver arrestor holes, resisting bi-directional spring-piston and rimfire recoil slip.
Reversible Clamp Plate: Configurable base clamp securely attaches to both 9–11 mm and 3/8-inch dovetail rail profiles.
Double Hex Hardware: Double hex top screws (3 mm hex drive, M4x0.7 thread) and base screws (4 mm hex drive, M4x0.7 thread) distribute clamping pressure evenly across the optic and rail.

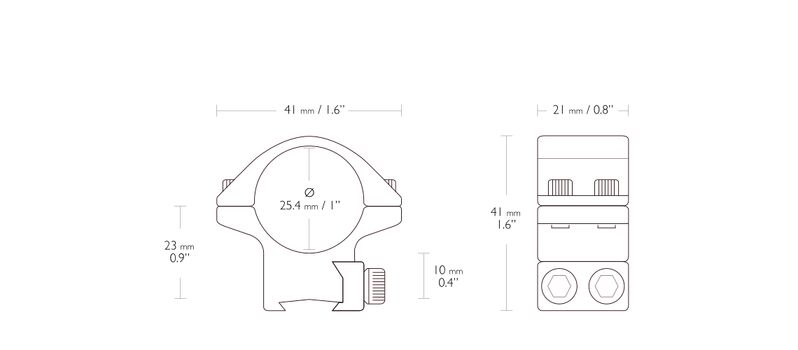

Specifications

Ring Diameter: 1 inch (25.4 mm)
Rail Interface: 9–11 mm and 3/8-inch Dovetail
Mount Profile: Low
Total Height: 1.6 inches (40 mm)
Weight: 71 g (2.5 oz)
Configuration: 2-piece ring mount
Material: High-grade CNC-machined aluminium
Finish: Matte black anodised

Who is the Hawke Match Mount 1" 9-11mm Low for?

Rimfire hunters — Requires a 1-inch ring diameter and a low 40 mm total height to maintain proper cheek weld and bore alignment when mounting compact scopes on .22 LR or .17 HMR dovetail receivers.
Air rifle shooters — Uses the integrated recoil stop pin and a 9–11 mm dovetail clamping base to prevent scope migration caused by bi-directional spring-piston or PCP recoil pulses while adding only 71 g of total weight.

Less suitable for: Riflescopes with objective lenses larger than 32 mm, which require medium or high profile mounts to prevent the objective bell from contacting the barrel, or firearms equipped with Picatinny or Weaver rail systems, which require dedicated Weaver-pattern cross-slot mounts.

SKU	HWK39746LP
Model #	22100
Brand	Hawke
Shipping Weight	1.0000kg
