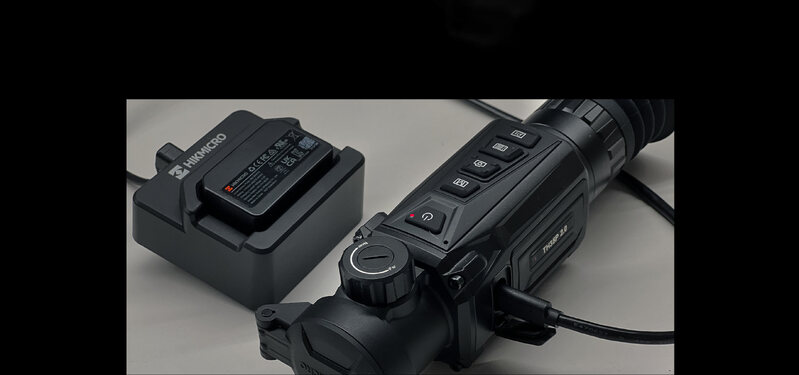

The TH25 V2.0 THUNDER 25mm Thermal Imager delivers outstanding thermal imaging performance with its 384x288 resolution and 17μm pixel pitch, offering crystal-clear image quality and detailed recognition, even in challenging environments. Equipped with a high-sensitivity NETD <20mK detector, this thermal imager is capable of detecting the slightest temperature differences, making it ideal for precision tasks. Its 25mm, F1.0 lens provides a detection range of up to 1200 meters, while the new focus knob design ensures smooth and precise focus adjustments with minimal effort, allowing for seamless operation.

This advanced thermal imaging device features a 50Hz refresh rate, 2.2x to 17.6x magnification, and a crisp OLED display with multiple color palettes including Black Hot, White Hot, Red Hot, and Fusion. Built to perform in extreme conditions, it operates between -30°C to +55°C (-22°F to 131°F) and is protected by an IP67 waterproof rating. With on-board video recording, built-in EMMC storage, and various correction modes, the TH25 V2.0 is a versatile tool for professionals who demand top-tier thermal performance.

KEY FEATURES

Resolution: 384x288

Pixel Pitch: 17μm

Refresh Rate: 50Hz

Spectral Range: 8μm to 14μm

Thermal Sensitivity (NETD): Less than 20mK (25°C, F#=1.0)

Lens: 25mm, F1.0

Detection Range: Up to 1200m

Focus Mechanism: Focus Ring

Field of View (FOV): 10.5° × 7.9° / 18.4m × 13.8m

Magnification: 2.2x - 17.6x (8x)

Display: 1024x768, 0.39 inch OLED

Color Palettes: Black Hot, White Hot, Red Hot, Fusion

Correction Modes: Auto, Manual, External Correction

Diopter Adjustment: -5D to 5D

Operating Temperature: -30°C to +55°C (-22°F to 131°F)

Protection Rating: IP67

Weight: 488g (without battery)

Dimensions: 218.7 mm × 67.1 mm × 68.0 mm

On-Board Video Recording: Yes

Storage: Built-in 16GB EMMC

Shock Resistance: 1000g/0.4ms
