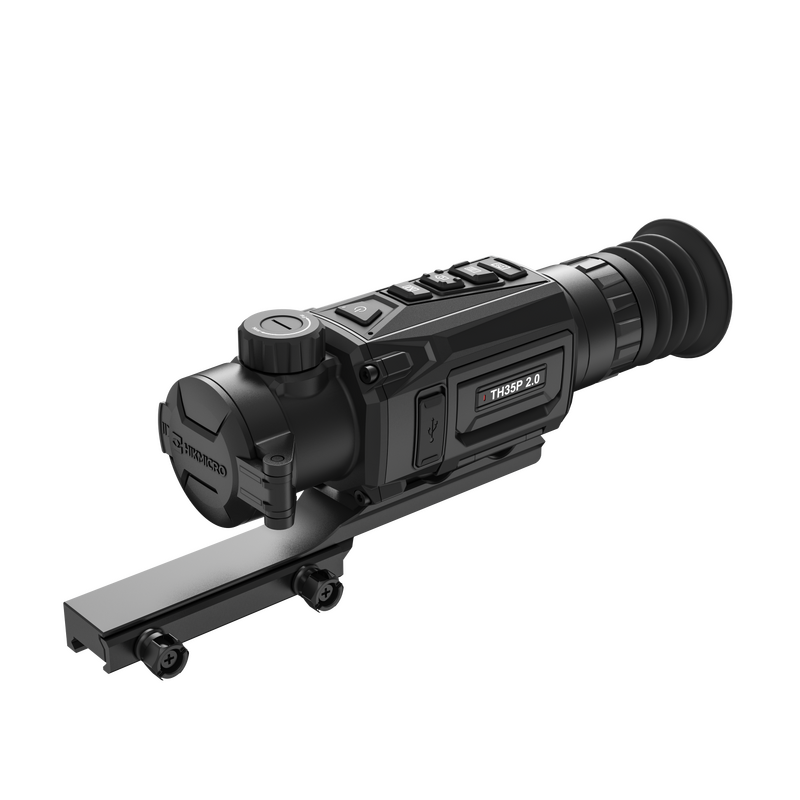

The TH35P V2.0 THUNDER 35mm Thermal Imager is designed to deliver exceptional clarity and precise detail recognition, even under minimal temperature differences. Equipped with a high-performance thermal sensor with NETD<20mK sensitivity and a resolution of 384x288 at 12μm, this device ensures you capture the most subtle temperature variations for superior target identification. Its innovative focus knob design provides smooth and precise adjustments, allowing you to maintain a natural hand posture for effortless operation. Whether scanning over long distances or needing fine image detailing, the TH35P V2.0 is your reliable thermal imaging solution for all conditions.


KEY FEATURES

Sensor Resolution: 384x288

Pixel Pitch: 12μm

Thermal Sensitivity (NETD): <20mK (25°C, F#=1.0)

Lens Size: 35mm, F1.0

Detection Range: 1800m

Field of View: 7.5° x 5.7° / 13.2m x 9.9m at 100m

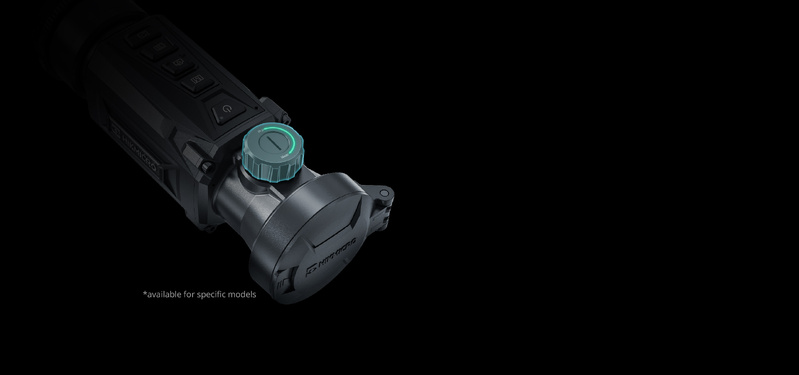

Focus System: Focus Knob, Focus Ring

Frame Rate: 50Hz

Wavelength Range: 8μm to 14μm

SKU HI126398LP
Model # TH35P 2.0
Brand Hikmicro
Shipping Weight 0.5000kg
