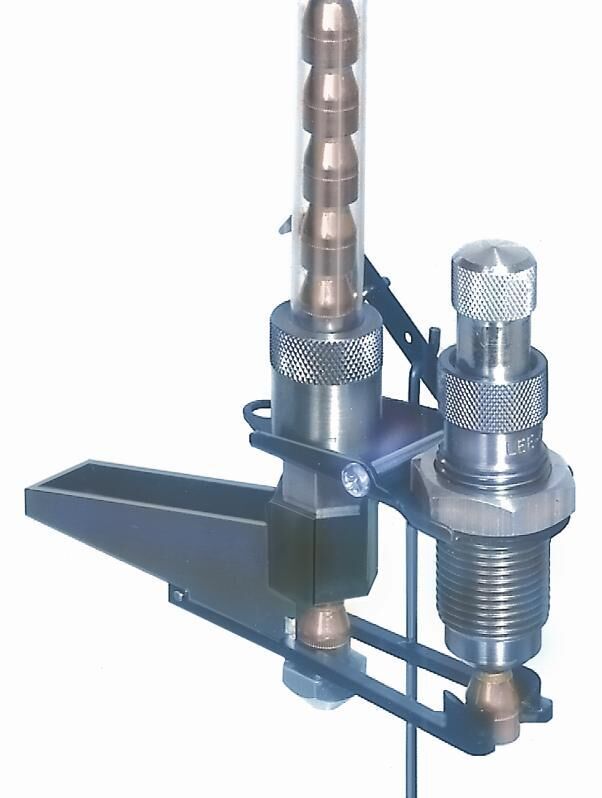

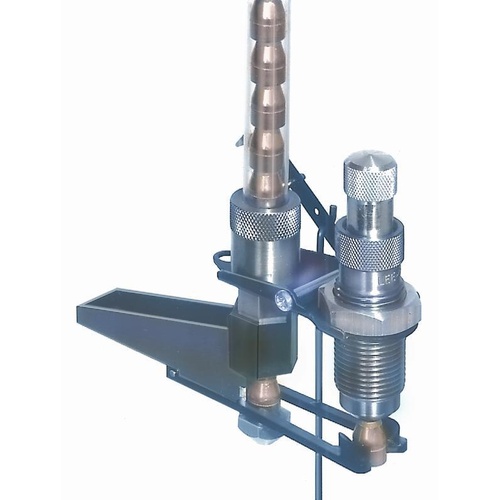

The Lee Precision Bullet Feed Kit (MPN: 90893) is a fully mechanical press attachment designed to automate projectile placement on progressive reloading presses. Built specifically to interface with the mechanical drive geometry of the Lee Pro 1000 and Lee Load-Master presses, this feeder automatically swings and positions bullets directly into the seating die mouth with each stroke of the ram. By eliminating manual bullet placement, it increases progressive reloading production output by 50% to 100% while maintaining square bullet alignment to reduce shaved jackets and tilted seating.

Key Features

• Automated Mechanical Feeding: Positions projectiles into the case mouth on each ram stroke without requiring 240V mains power or electrical connections.
• Increased Reloading Rate: Boosts progressive cyclic output by 50% to 100% compared to hand-feeding bullets.
• Precise Bullet Alignment: Holds projectiles squarely over the case mouth to prevent tilted seating and damaged bullet coatings.
• Complete Tube Feed Assembly: Includes standard plastic feed tubes measuring approximately 13 inches (33 cm) in length, with a total packaged shipping weight of 0.23 to 0.30 kg.

Specifications

• Model / MPN: 90893
• Calibre / Projectile Diameter Range: .355" to .365" (e.g., 9mm Luger, .380 Auto, 9x18 Makarov, .38 Special, .357 Magnum)
• Maximum Bullet Length: Up to 0.46 inches (11.68 mm)
• Press Compatibility: Lee Pro 1000 and Lee Load-Master progressive presses
• Cartridge Type: Straight-wall handgun calibres only (not compatible with bottleneck rifle cases)
• Power Requirements: 0V (purely mechanical)
• Packaged Weight: Approx. 0.23–0.30 kg (0.5–0.6 lbs)

Who is the Lee Precision Bullet Feeder Kit 9mm To .365 Caliber for?

• High-volume IPSC and Action Pistol competitors — who need to maximise production output when loading 9mm ammunition, using this progressive reloading bullet feeder to seat projectiles within the .355" to .365" diameter range measuring up to 0.46 inches (11.68 mm) in length.
• SSAA target shooters — who reload short-profile .38 Special or .357 Magnum handgun rounds on Lee Pro 1000 or Load-Master progressive presses, leveraging this bullet feeder kit to automate placement for bullets up to 0.46 inches (11.68 mm) long.

Less suitable for: Handloaders seating bullets longer than 0.46 inches (11.68 mm), loading projectile diameters outside .355" to .365", processing bottleneck rifle cartridges, or operating single-stage and turret presses; these applications require extended-length bullet feed kits (such as medium or long feed fingers), alternative caliber-specific kits, or universal 7/8"-14 threaded inline bullet seating dies.
