Which specific case prep machines and trimmers is the RCBS 3-Way Cutter Complete Assembly 7mm compatible with?

This complete assembly is specifically engineered to thread directly onto the cutter shaft of the RCBS Trim Pro Manual, Trim Pro Power, and standard RCBS Rotary Case Trimmers. It can also be integrated smoothly into multi-station prep setups like the RCBS Universal Case Prep Center for high-volume reloading workflows.

Can I use this 7mm assembly on smaller calibres like .20 or .17 cases?

No. The manufacturer strictly states that the Trim Pro 3-Way Cutter system is not compatible with 17-calibre to 20-calibre cases due to the physical limitations of the cutter head and pilot design. This specific model is strictly configured for 7mm (.284 calibre) bottlenecked rifle brass.

What maintenance is required to keep the hardened steel cutting blades operating smoothly during high-volume processing?

When using this cutter with the Trim Pro Power Trimmer, it is recommended to lightly lubricate the cutter shaft approximately every 300 cases processed to maintain smooth rotation and prevent wear. During long-term storage in your reloading room, applying a light multi-purpose oil will help protect the steel components from oxidation.

Does this unpowered cutting tool require any Australian electrical certifications or adapters?

No electrical components are involved in this purely mechanical tool, meaning standard Australian wall plug requirements, 240V compatibility, and SAA or RCM certifications are entirely inapplicable. It operates purely via manual or machine rotation on your reloading bench without drawing any power.

7mm Case Trimmer - RCBS R90283

Overview

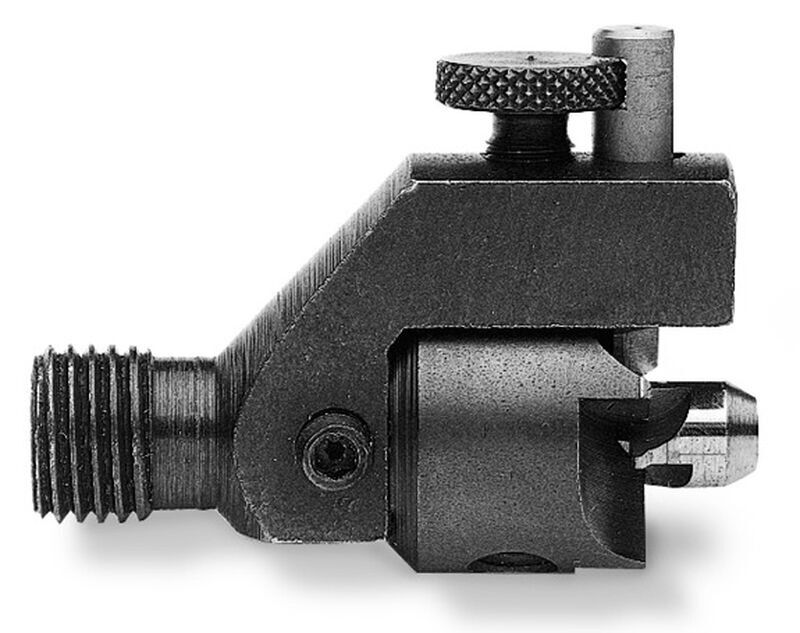

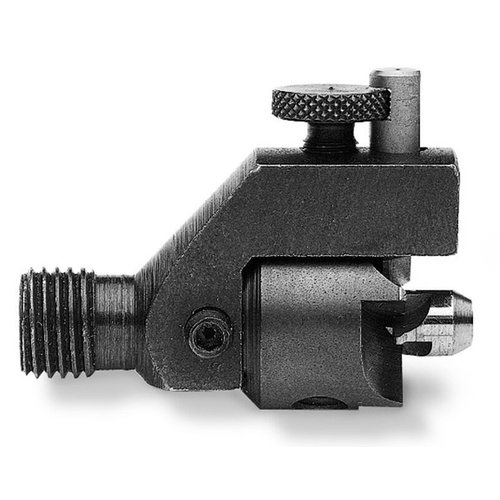

The RCBS Trim Pro 3-Way Cutter Complete Assembly 7mm (Model: R90283) is a precision-engineered, unpowered mechanical cutting head designed to streamline metallic cartridge reloading. By consolidating three critical brass-preparation steps into a single motion, this hardened steel tool head increases processing efficiency for bottlenecked rifle cases. It threads directly onto the cutter shaft of the RCBS Trim Pro Manual, Trim Pro Power, and standard RCBS Rotary Case Trimmers, and is also compatible with the RCBS Universal Case Prep Center.

Key Features

Simultaneous Three-in-One Operation: Trims the cartridge case to its designated overall length, chamfers the inside case mouth, and deburrs the outer edge in a single rotation.
Hardened Steel Blades: Features a durable three-blade head configuration designed to withstand high-volume brass processing.
Adjustable Cutting Depth: The internal chamfering and external deburring blades can be adjusted to fine-tune the bevel depths on the case neck.
Pre-Configured Setup: Ships complete with a dedicated 7mm pilot and matching blades for immediate deployment on compatible brass.

Product Specifications

Model Number: R90283 (also cataloged as 90283)
Calibre Configuration: 7mm (.284 calibre)
Net Item Weight: 0.0188 lbs (approximately 8.5 grams)
Shipping Weight: Approximately 0.20 lbs (approximately 90 grams)
Power Requirements: Mechanical only (non-powered accessory)
Maintenance: Requires light lubrication on the cutter shaft after approximately every 300 cases when utilized with the Trim Pro Power Trimmer.

Who is the Rcbs Trim Pro 3 Way Cutter Complete Assy 7mm for?

High-volume 7mm rifle reloaders — requires a mechanical cutter head that processes 7mm (.284 calibre) brass by executing three case preparation steps in one motion, saving significant production time during large-batch reloading cycles.
Precision handloaders processing bottlenecked rifle brass — delivers uniform case lengths and exact beveling on 7mm (.284 calibre) cartridge cases, optimizing bullet seating and neck tension consistency with a lightweight 0.0188 lbs tool head.

Less suitable for: reloaders processing sub-calibre cases, as this system has a lower threshold limit that is not compatible with 17-calibre to 20-calibre cases, which instead require separate specialized hand tools or standard individual case trimmers.

SKU	RC39283LP
Model #	R90283
Brand	Rcbs
Shipping Weight	1.0000kg
