What size flash holes is the Redding 06110 tool designed for, and does it come with a pilot stop for other calibres?

This tool is built specifically for small .060-inch flash holes commonly found in precision target brass like 6mm BR, 6mm PPC, and 6.5x47 Lapua. It comes out of the box with a .22 calibre stainless steel pilot stop. If you need to work with other calibres such as .17 or 6mm, you will need to purchase separate 9/64-inch Redding pilot stops.

How do I control the cutting depth when using the Redding Small Flash Hole Deburring Tool?

Unlike Redding's universal model, the small flash hole tool does not feature an integral web stop. Instead, cutting depth is manually regulated by setting the included knurled pilot stop against the case mouth and securing it with the set screw. Because of this manual indexing, all cases must be trimmed to a uniform length prior to deburring to ensure consistent results.

Are there any electrical compliance certifications or Australian safety standards required to use this tool?

No electrical compliance or SAA/RCM certifications are required for the Redding 06110. It is a 100 percent manual hand tool with no electrical components, meaning it does not rely on 240V mains power and is entirely unaffected by outback or benchtop environmental conditions.

Can I use this tool on standard cartridge cases with larger .080-inch flash holes?

No, the Redding 06110 features a specific .060-inch cutter size designed strictly for small flash hole target brass. For standard cartridge cases featuring .080-inch flash holes, you must use the Redding Universal Flash Hole Deburring Tool Part #06100 instead.

Flash Hole Deburring Tool - Redding 06110

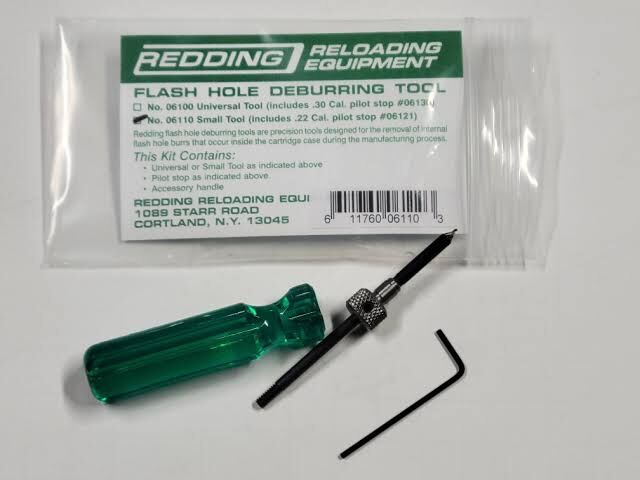

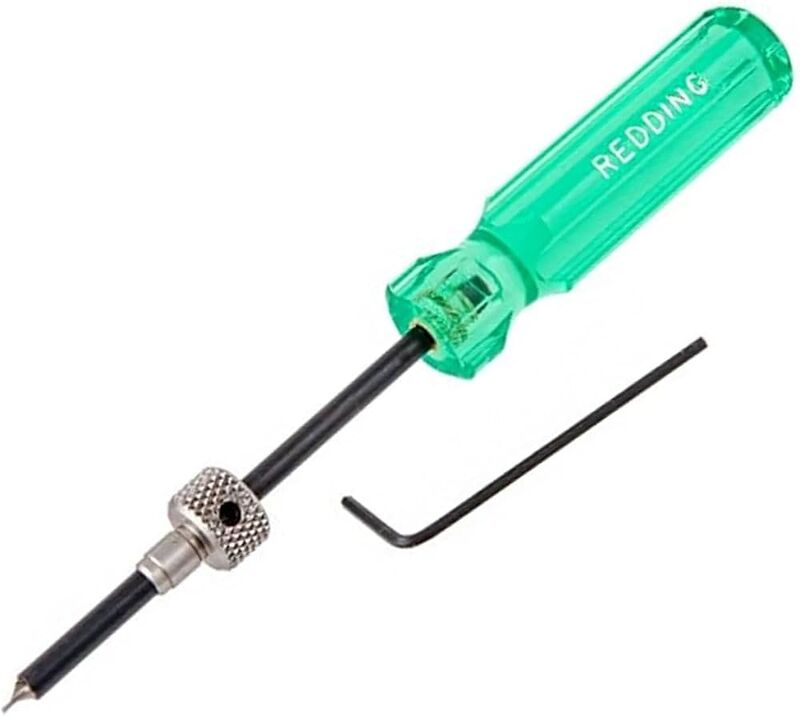

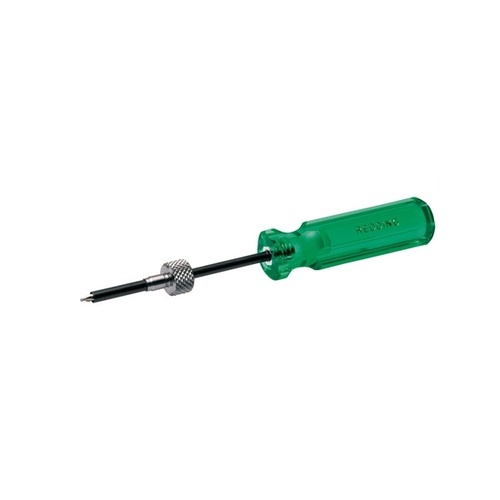

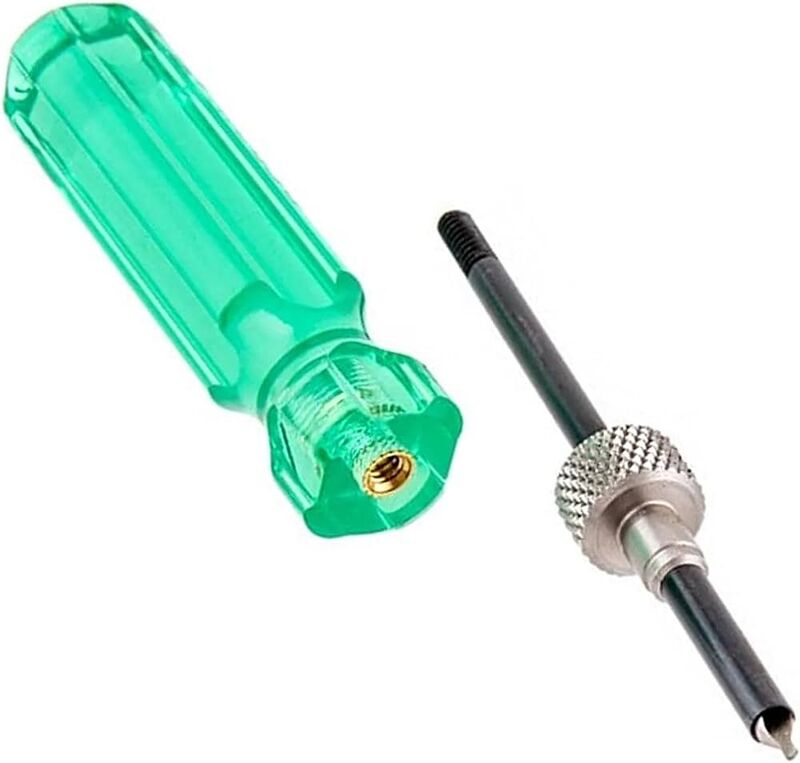

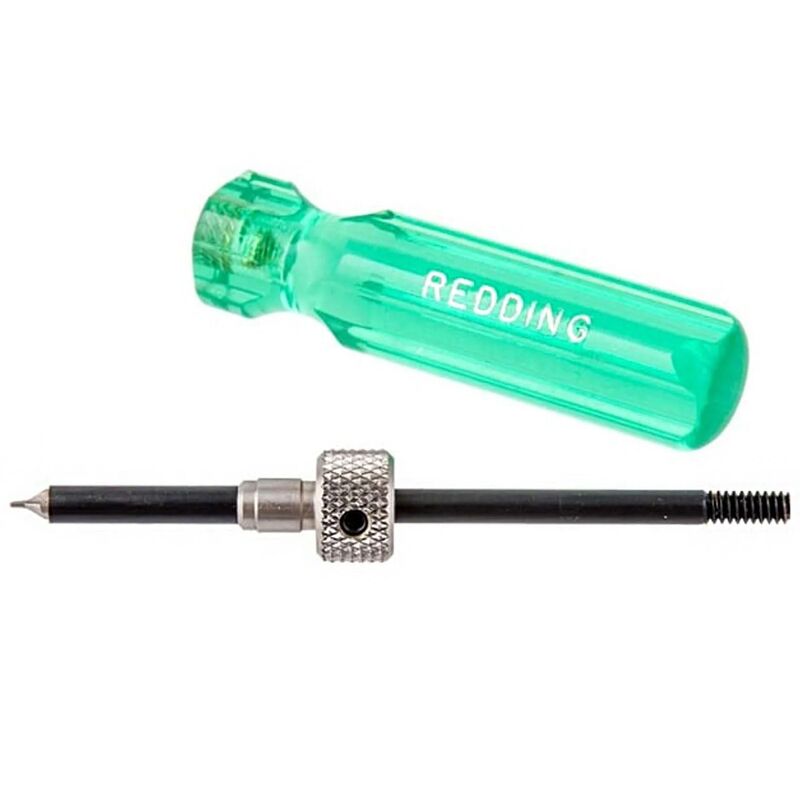

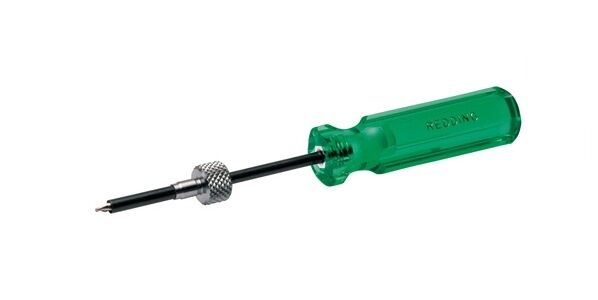

The Redding Small Flash Hole Deburring Tool with .22 Caliber Pilot Stop (MPN: 06110) is a dedicated, fully manual case preparation tool designed to remove internal flash hole burrs and manufacturing imperfections from unprimed brass cartridge cases. Engineered specifically for small .060-inch (approximately 1.5 mm) flash holes, this tool features a precision-ground cutter that accesses undersized flash holes to ensure uniform flame propagation from the primer into the main powder charge, reducing velocity spreads and improving overall ignition consistency. Cutting depth is manually regulated by locking the included knurled stainless steel pilot stop against the case mouth using an integrated set screw, requiring all cartridge cases to be trimmed to a uniform length prior to operation.

Key Features

Precision Small-Hole Cutter: Machined specifically to deburr target brass featuring .060-inch flash holes without enlarging or damaging the primer pocket flash channel.
Operator Depth Control: Features an adjustable knurled pilot stop that indexes directly against the case mouth to set and maintain consistent deburring depth.
9/64-Inch Mandrel: Built on a rigid 9/64-inch steel shaft that accepts Redding small-mandrel pilot stops for various neck diameters.
Dedicated .22 Calibre Pilot: Supplied with a .22 calibre stainless steel pilot stop to guide the cutter smoothly down the centreline of the case neck.
100% Mechanical Operation: Fully hand-operated tool requiring no electricity, power adapters, or bench mounting fixtures.

Specifications

Brand: Redding Reloading Equipment
Manufacturer Part Number (MPN): 06110
Tool Type: Small flash hole deburring hand tool
Cutter Sizing: .060 in (approx. 1.5 mm / .062 in)
Mandrel Diameter: 9/64 in
Included Pilot Stop Calibre: .22 Calibre (stainless steel)
Depth Regulation: Case-mouth indexing via adjustable set-screw pilot stop
Operational Prerequisite: Cases must be trimmed to a uniform length before deburring

Who is the Redding Small Flash Hole Deburring Tool With 22 Cal. Pilot Stop for?

Australian benchrest and F-Class precision rifle competitors — requires a dedicated small flash hole deburring tool sized for .060-inch flash holes to eliminate ignition-disrupting burrs in precision match brass such as .22 PPC, 6mm BR, and 6.5x47 Lapua.
Handloaders working with small-primer target brass — utilises a 9/64 in mandrel diameter paired with a .22 calibre stainless steel pilot stop to align the cutter directly through the case neck, indexing off uniformly trimmed case mouths for repeatable deburring depth.

Less suitable for: Cartridge cases featuring standard .080-inch flash holes across .22 to .338 calibres; standard-dimension cases require a universal flash hole deburring tool equipped with a 3/16-inch mandrel and an internal web-stop cutter.

SKU	RD41420LP
Model #	06110
Brand	Redding
Shipping Weight	1.0000kg
